rugged input devices

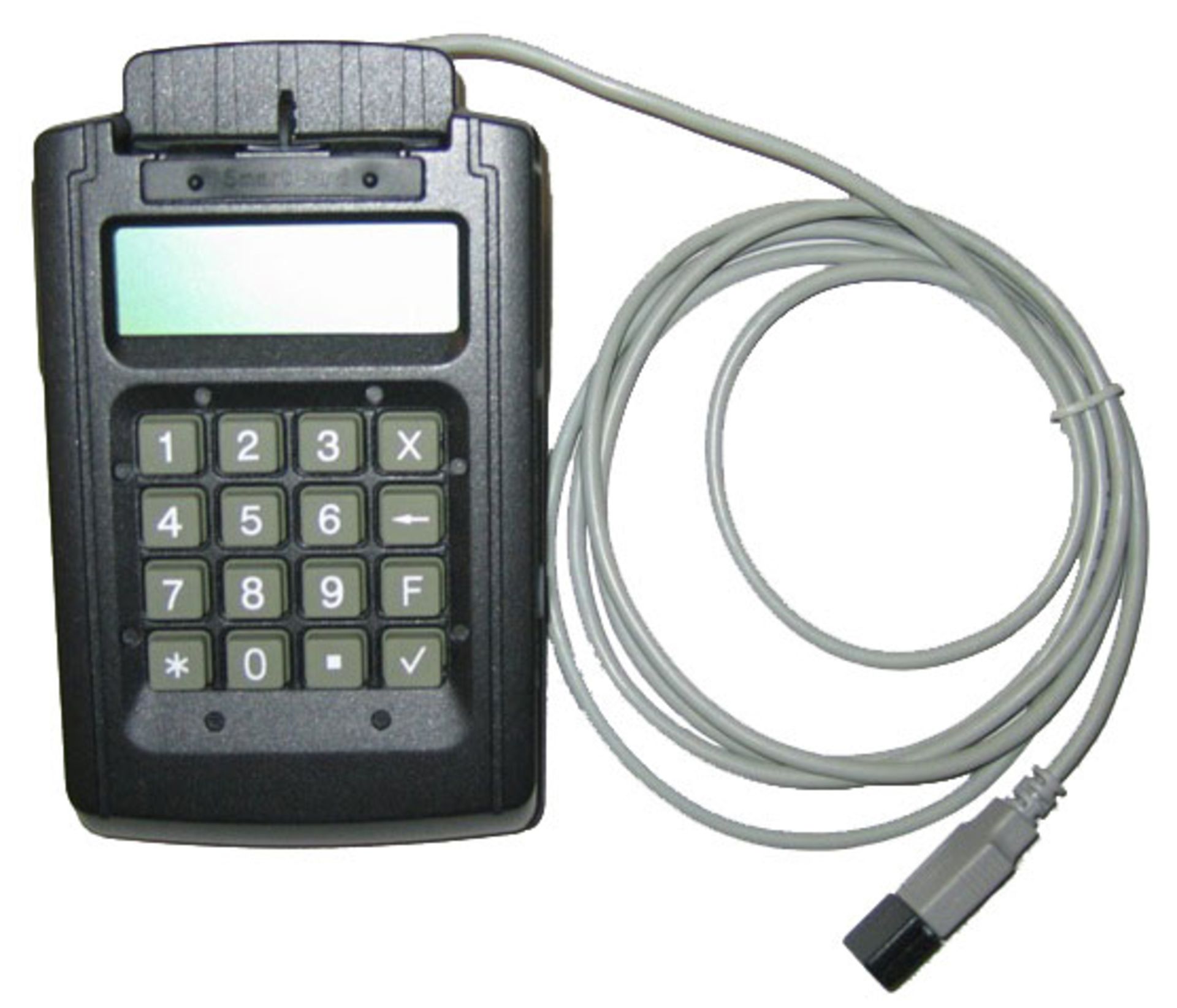

The card reader with 16-key pin pad and display, features automatic smart card type recognition and realises a data transfer rate of 420 KB/s from the reader to the card.

The 2 line x 16 character display has a backlight which can be switched on and off if required.
The keyboard with a card reader meets the requirements of the MIL-STD 810F standard while reaching the IP54 protection level. Optionally available with MIL-STD 461E and/or COMSEC Zone 1 / SDIP 27 Class A.

General information

  • Register 2 Cardreader with display
  • Display with 2 x 16 rows (illumination can be switched on and off)
  • Pin pad with 16 buttons
  • SmartCard interfaces:
  • Supports T=1, T=0, I²C, SLE4432/42 (S=10), SLE4418/28 (S=9)
  • Automatic recognition of the smart card type
  • Supports smart cards with 5 V, 3 V, and 1.8 V power supply
  • Transfer rate from reader to card with 420 KBits per second
  • Short-circuit and overheating protection
  • Compliance / certifications:
    • Microsoft WHQL, EMV2000, ISO 17816, HBCI, USB 2.0, Common Criteria EAL 3+, PKI compliant
  • Dimensions: 150 mm x 90 mm x 56 mm
  • Power consumption: <1W
  • Weight: 320 g
