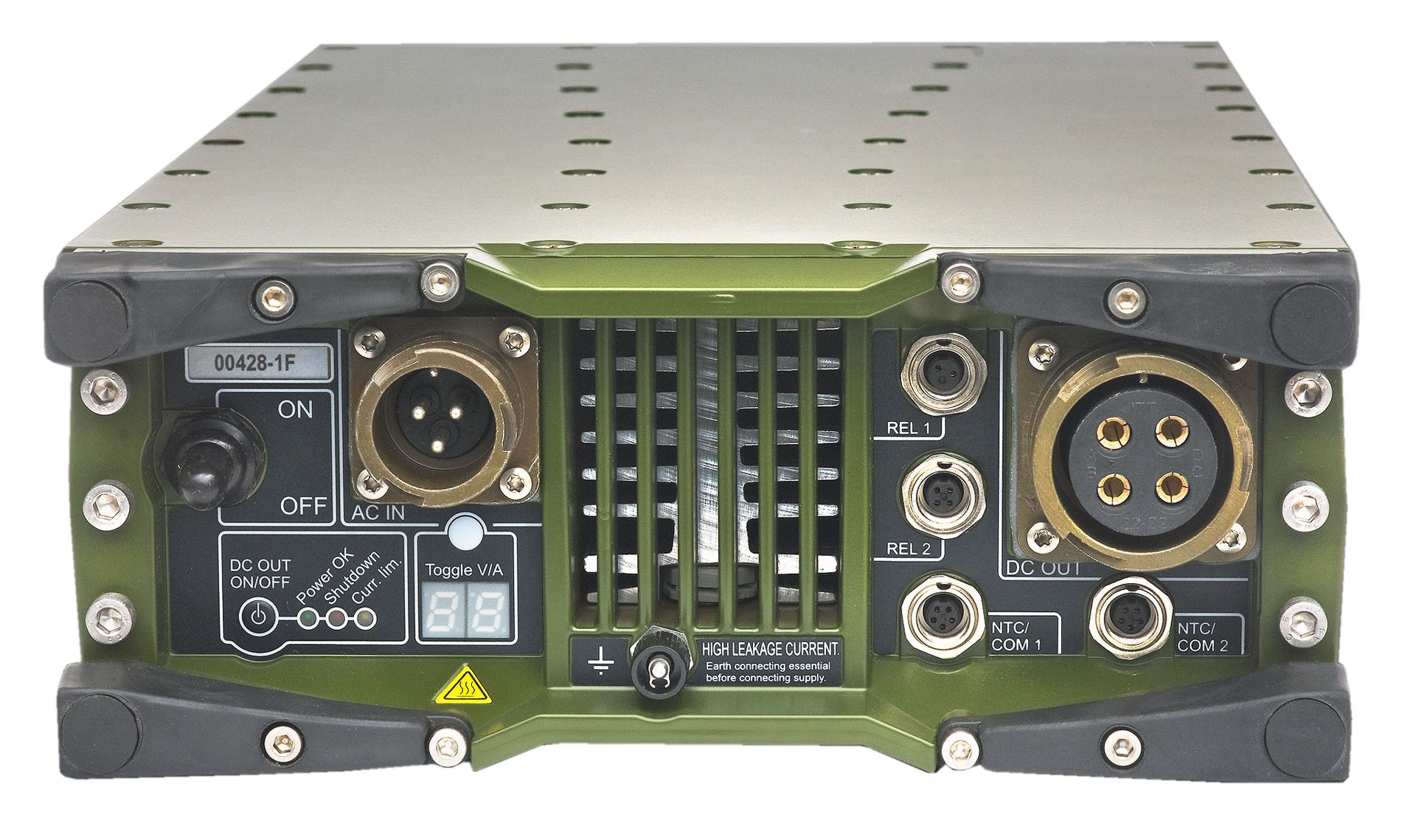

PowerPac 2400 AC/DC

Battery charger / power supply unit 2400 W

The PowerPac 2400 is a modular, compact AC/DC power supply and an intelligent battery charger in one, with a rated output of 28 V / 80 A. It meets the most discerning mechanical and electrical demands on ruggedness and can handle great input voltage fluctuations. The PowerPac 2400 input current is power factor corrected (PFC) for optimal use of weak power sources such as portable generators. Its shunting switch technology allows for great power efficiency. When operated as a stand-alone unit or installed into a 19" rack system, it only takes up a height of 2U (88.9 mm/3.5"). The PowerPac 2400 comes with an RS485 port that can be used for control, monitoring, and configuration. This port can be used to access detailed status and statistical information. The signal connections provide multiple signals: alarm relay outputs, external battery temperature sensors, and a bus for connecting multiple devices in a redundant or parallel system. As such, the output power can be cascaded to 4.8 kW, 7.2 kW, and so on. The PowerPac 2400 can be configured to charge a diverse range of battery types, such as lead-acid, NiMH, and NiCd, as well as for future battery technology on the software side. Temperature-compensated charging ensures full battery capacity throughout the temperature range. The device is protected against overvoltage, short-circuiting, overcurrent, and excess temperatures.

Technical specifications

Overall performance

  • 2400 W

Input voltage

  • 99 - 276 VAC

Power factor compensation (PFC)

  • Type. 0.99 @ full load

Input current at max load and 50 Hz

  • 28A @ 99 V AC; 24A @ 115 V AC; 12A @ 230 V AC

Efficiency at full load

  • > 88% @ 115 V AC; > 90% @ 230 V AC

Rated output voltage

  • 28 V DC

Adjustable output voltage

  • 20.0 – 34.0 V DC

Rated output current

  • 80 A

Adjustable current limitation

  • 5 – 80 amps

Short-circuit voltage

  • ≤88.0 A

Load distribution

  • max. 3 A deviation

Output voltage ripple and noise

  • <100 mV p-p, 20 MHz bandwidth

Output voltage regulation

  • <1.5% zero/max. load

Dimensions

  • (depth in rack) 220 x 390 x 88 mm (2U)
  • (total depth) 220 x 420 x 88 mm (2U)

Weight

  • 11.1kg

Battery types

  • lead acid, lithium-ion, NiMh, NiCd

Installation

  • Any direction, as well as in 19" rack

Operational temperature range

  • -40°C to +60°C

IP protection

  • IP67

Certification

  • MIL-STD 810G, MIL-STD 461F (Ground Army)
