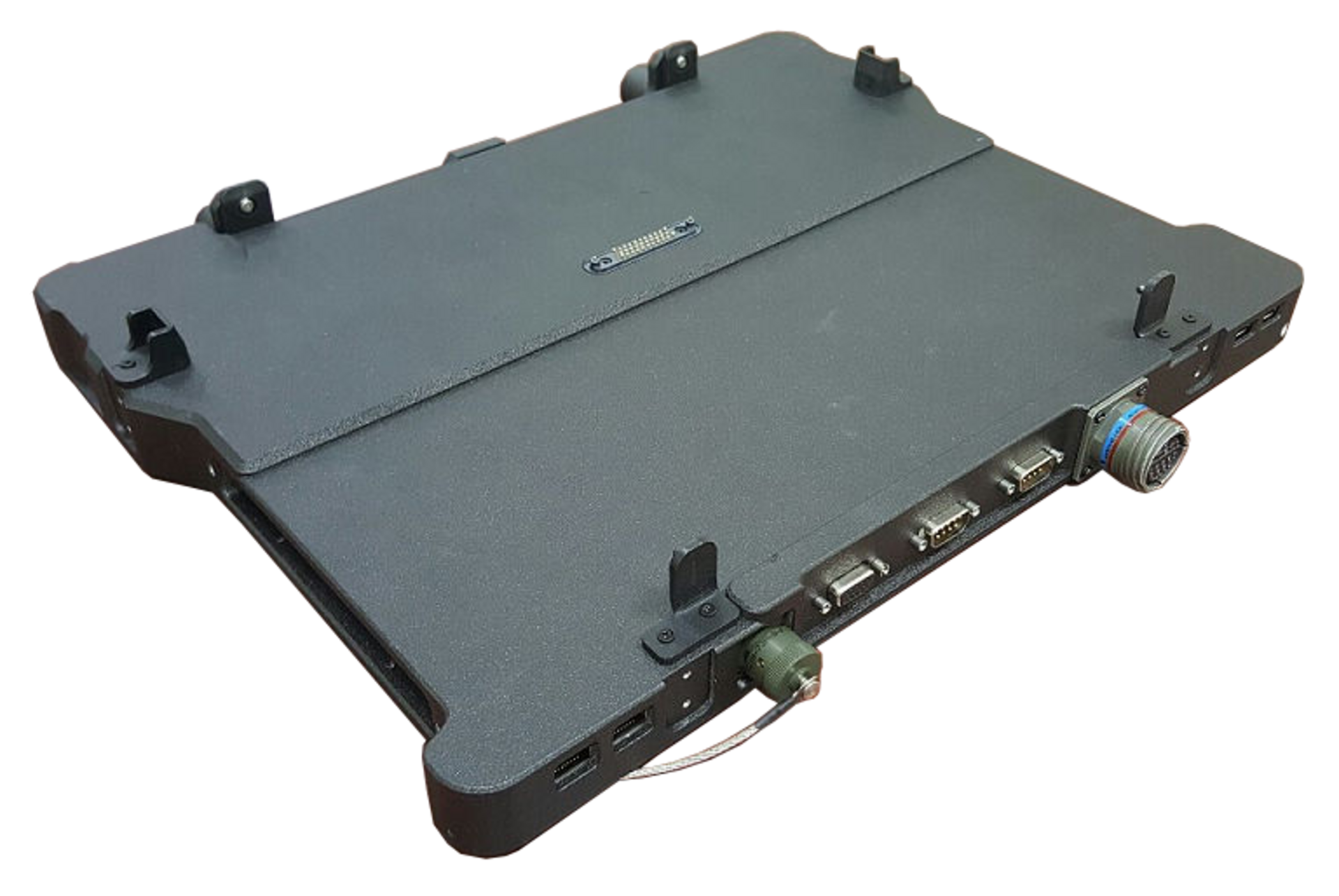

DockUnder DURS

Port replicator for Lizard® RS

The DockUnder DURS is designed for docking Lizard® RS series notebooks and expands them with a variety of interfaces. In addition, PCI, mini PCIe or even a DVD drive can be optionally retrofitted.
To use the docking station, the power supply unit supplied with the Lizard device can be connected directly to the DockUnder to supply it with power and charge the device's battery.

Technical Specification

Interfaces

  • 2x Serial Port DB9
    • Default: RS232
    • Optional: RS422, RS485
  • 1x USB 2.0
  • 1x USB 3.0
  • 1x VGA
  • 1x MLAN
  • 1x GLAN
  • 1x DC-In

Internal Interfaces options

  • A:    1x PCI slot, 1x mini PCIe slot
  • B:     SATA ODD
    For Option B, PCI card should be within 212 x 98.4 x 17.4mm

Material

  • Aluminum, poweder coated

Colours

  • black RAL 9005

Dimensions [W×H×D]

  • 386 x 54.16 x 329.50 mm

Weight

  • approx. 3.15 kg

Temperature Range

  • Operating: -20 ° to +55 °C
  • Storage: -40 °C to +70 °C
