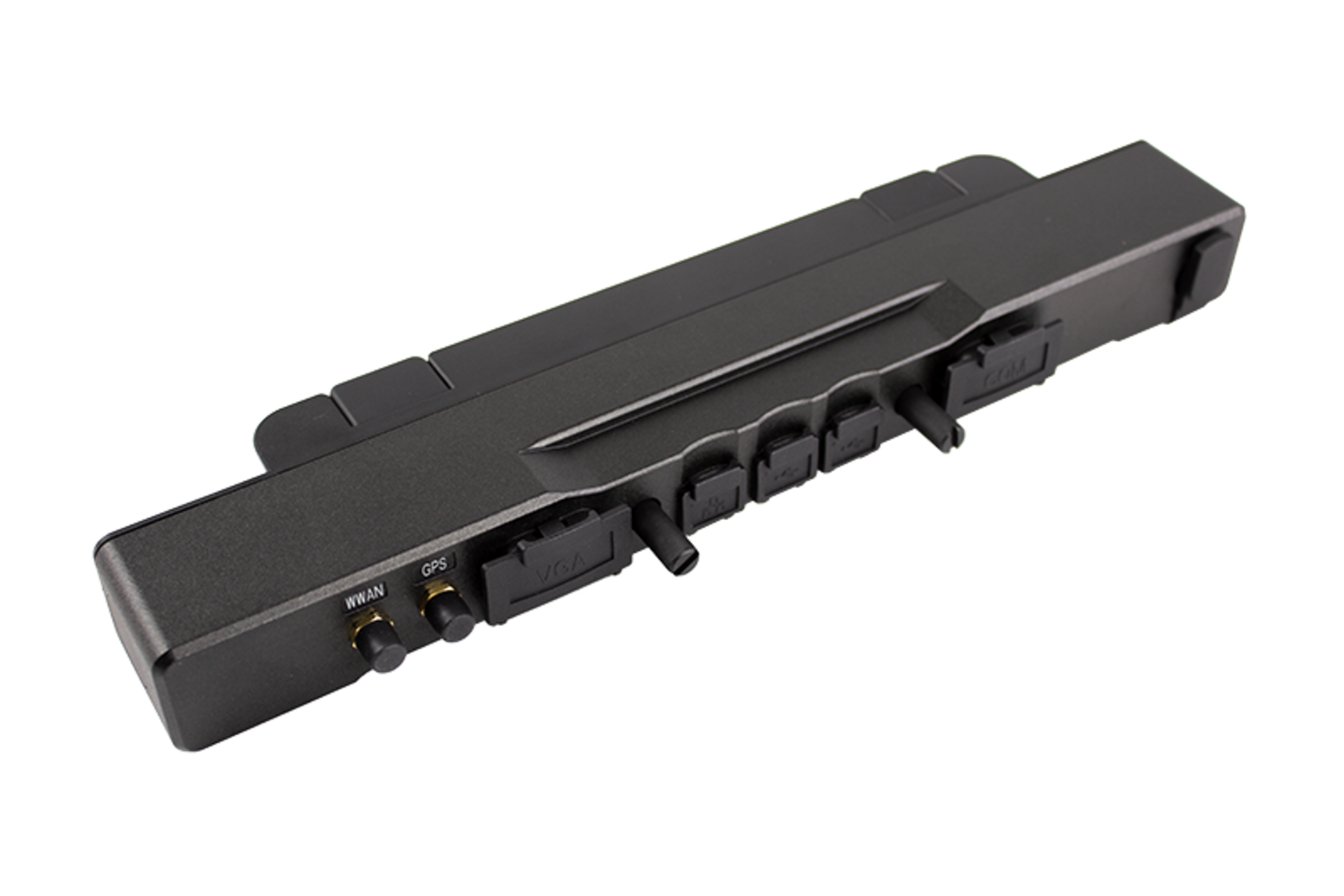

DockLite DLDS

Port replicator for Panther DS

Docklite DLDS is designed for more connection options on the Panther DS series units. When the Docklite is connected, various types of connections are available, which can be used flexibly.

Technical Specification

Input voltage

  • 12-32 VDC

Features

  • Ext. ANT-onnectors x 2 (reserved for optional RF-modules)

Easy mounting

  1. 1. align DockLite
  2. 2. attach to the unit
  3. 3. fasten screws

Interfaces

  • 1x DC-In
  • 2x USB 2.0
  • 2x DB9 COM
  • 1x VGA
  • 1x 100 MBit LAN RJ45
  • Optional: SMA für WLAN & GPS

Compatibility

  • PANTHER: DS11, DS13

Dimensions [B×H×T]

  • 280 x 77 x 30 mm

Weight

  • approx. 440 g
