Mobile Server Mission System

Modular server system based on Lizard RW series

8-Port Fiber Switch

Mission Module for RW series

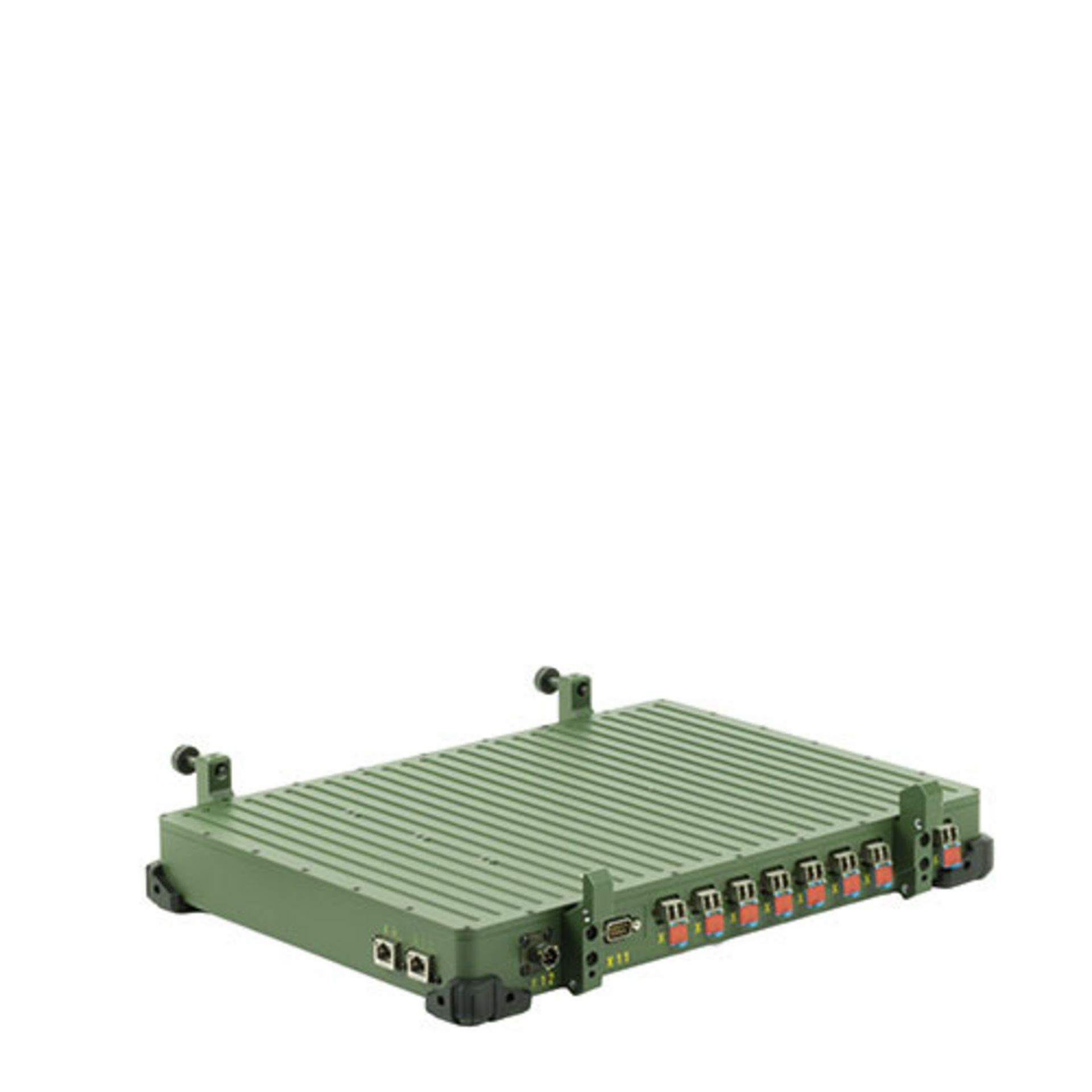

The „8-port fiber-optic switch“ has been developed primarily for use in the patented „Mobile Server Mission System“ together with the laptop from Lizard RW series, but can also be easily used as a stand-alone or 19“ version. The switch is based on the Cisco Small Business 350 Series and supports up to eight fiber-optic and one RJ45 port as well as Layer 2 and Layer 3 switching. The fiber-optic switch can be configured very versatile via the SFP modules. It enables full duplex, half duplex, symmetric and asymmetric transmission modes and allows VLAN, DHCP, port grouping and much more.
The octuple Gigabit switch is simply coupled via retaining bolts to the RW11 or the RJ45 Switch and / or power module. The design according to MIL-STD-810G, MIL-STD-461F and the certification according to Tempest NATO 27 SDIP Level B (ER), enables the switch to be used for most purposes.

Technische Spezifikation

Modell

  • Cisco Small Business 350 Series Managed Switch

Typ

  • Managed 8 Port Layer 2+ Switch (Layer 2-3)

Netzwerk

  • Ethernet, Fast Ethernet, Gigabit Ethernet

Management

  • PVU6550, SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI, Zugriff Seriell oder Web

Speicher

  • 16 MB Flash, 128 MB CPU Speicher, Datenpuffer 8 MB

Schnittstellen

  • 8x LC LWL + 2x RJ45 (10/100/1000 Mbit/s Ethernet)
  • DC-In 16-34V DC, max 5,4W (ohne Notebook)
  • Serielle Schnittstelle RS232 (Management)

SFP Module

  • LWL Schnittstellen durch SFP Module
    • Variable Konfiguration möglich
    • Hier: 1 Gbit/s 50/125 MM 850 nm

LEDs

  • 2 Netzwerkaktivität LEDs pro LWL Schnittstellen
  • 1 EIN/AUS LED

DSCP

  • für IPv4 und IPv6

    QoS

  • 4 Klassen

Übertragungsarten

  • Full Duplex (IEEE 802.3x), Half Duplex, symmetrisch und asymmetrisch

Unterstützte Protokolle

  • IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE802.3af, IEEE 802.3at, IEEE 802.3az, IEEEE 802.3u, IEEEE 802.3x, IEEE 802.3z

Portgruppierung

  • Bis zu 8 Gruppen (8 Ports pro Gruppe mit 16 Teilnehmern)

VLAN

  • Bis zu 4096 VLANs

SSH

Unterstützt SSH v1 & v2

DOS

  • Schutz vor DoS Angriffen

Paket Rahmen

  • Jumbo bis zu 9216 Bytes

Sicherheit

  • Multicast, Broadcast & Flooding Kontrolle

Stromaufnahme

20 W

Spannungseingang

  • 16-34 VDC

IP Schutz

  • IP54

Umwelteigenschaften

  • gemäß MIL-STD-810G

EMV Eigenschaften

  • gemäß CE, MIL-STD-461F

    Montage

  • als DockUnder Station mit Halterung für RW11

Abmessungen (H x B x T)

  • ca. 48 x 382 x 277 mm

Gewicht

  • ca. 2,5 kg
