rugged input devices

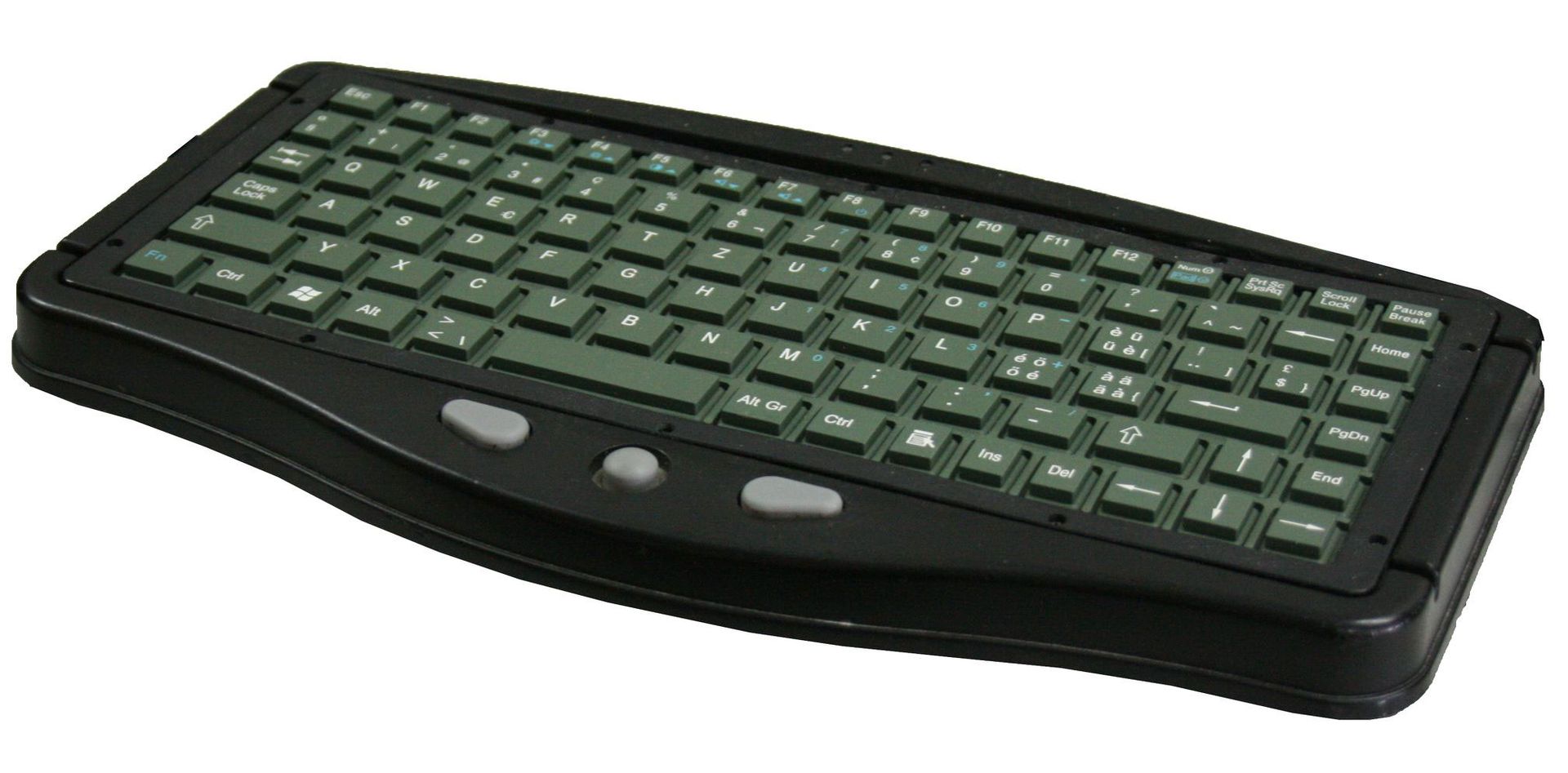

IP54 keyboard

Ruggedised keyboard

The IP54 keyboard from roda emulates a full 101/102-key keyboard, in spite of its 89-key layout. With its sealed operating surface, it is optimally protected against water and dust and perfectly suited for use in unforgiving environments.
The trackpoint and two mouse buttons render an additional mouse superfluous. With its backlight function, the keyboard can easily be operated in dark environments as well.
The keyboard is available with PS/2 or USB connections.

General information

  • 89 keys, emulates a 101/102-key keyboard with Windows keys
  • PS/2-compatible trackpoint and mouse buttons
  • Sealed and highly reliable operating surface
  • Water and dust protection in accordance with IP54
  • Backlight for operation in dark environments or at night (can be switched on and off)
  • Available with PS/2 or USB port

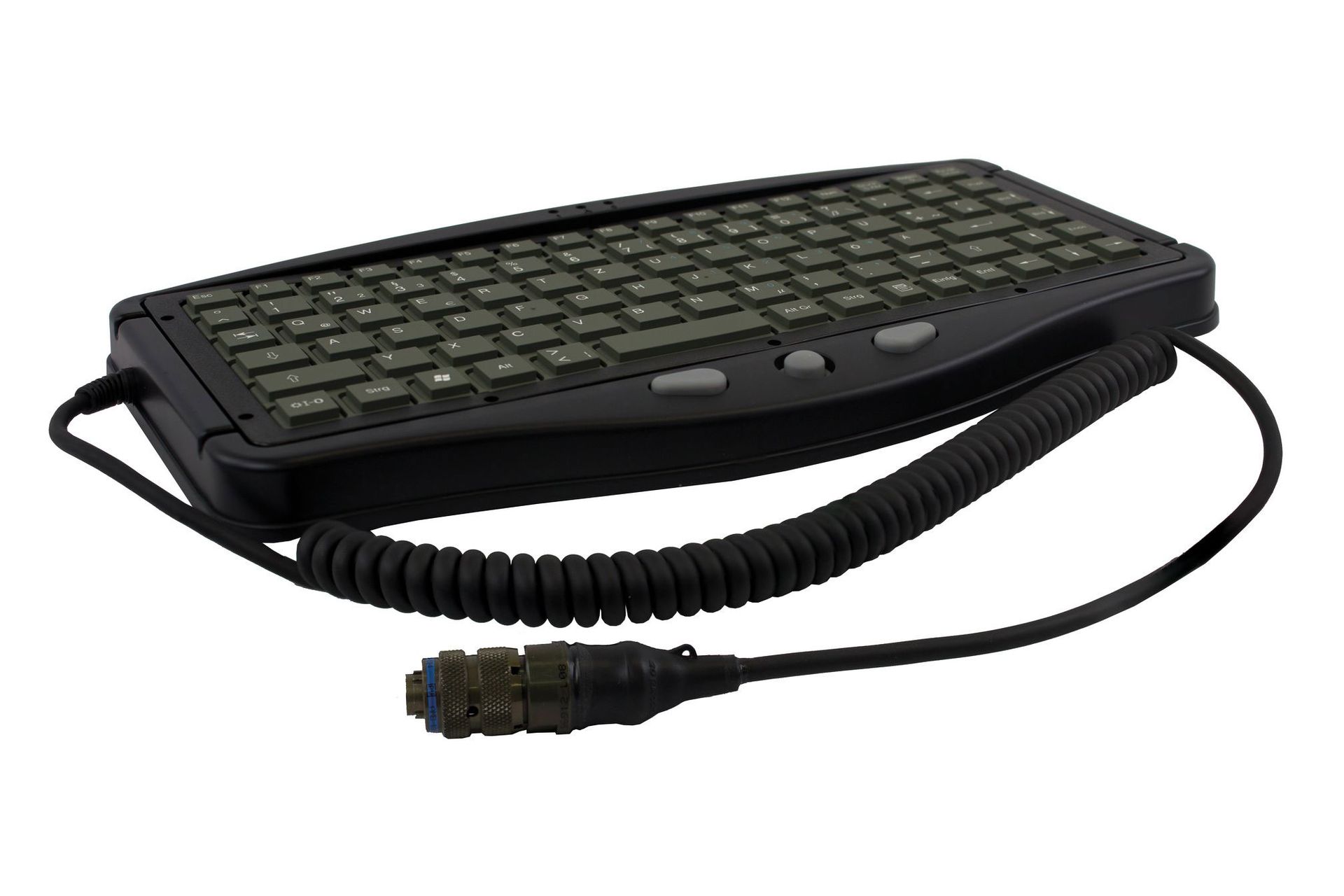

  • MIL connector (optional)

Life cycle

  • Over 1 million actuations

Key stroke

  • 2.0 mm

Actuationg force

  • 60 +/- 20 g


  • 325 mm x 172 mm


  • 1.1 kg

Optional certification

  • MIL-STD 810E
  • designed to meet MIL-STD 461D
  • Def Stan 59-41 (part 3) DRE03, 30-90 MHz
