HEL4.0

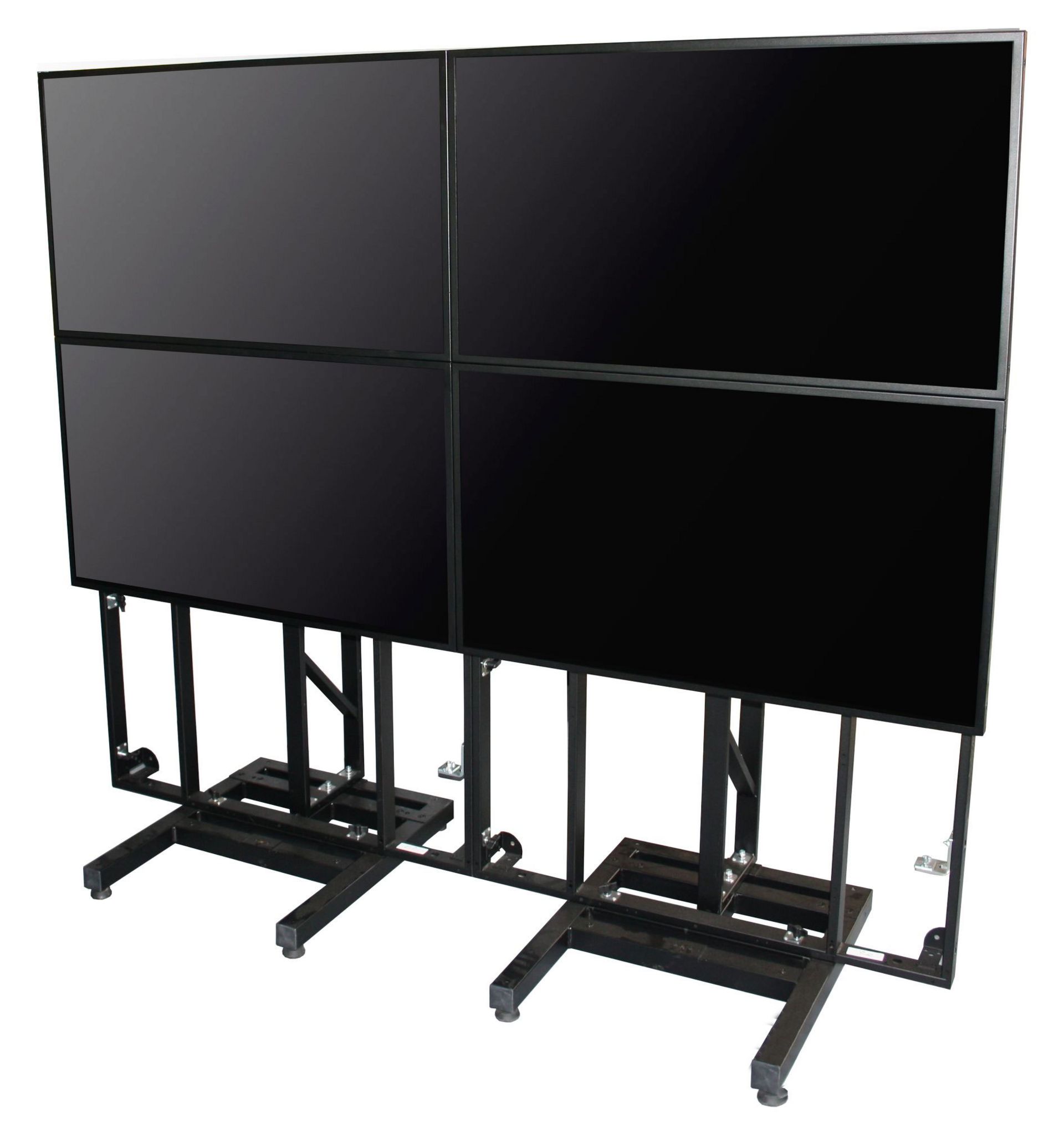

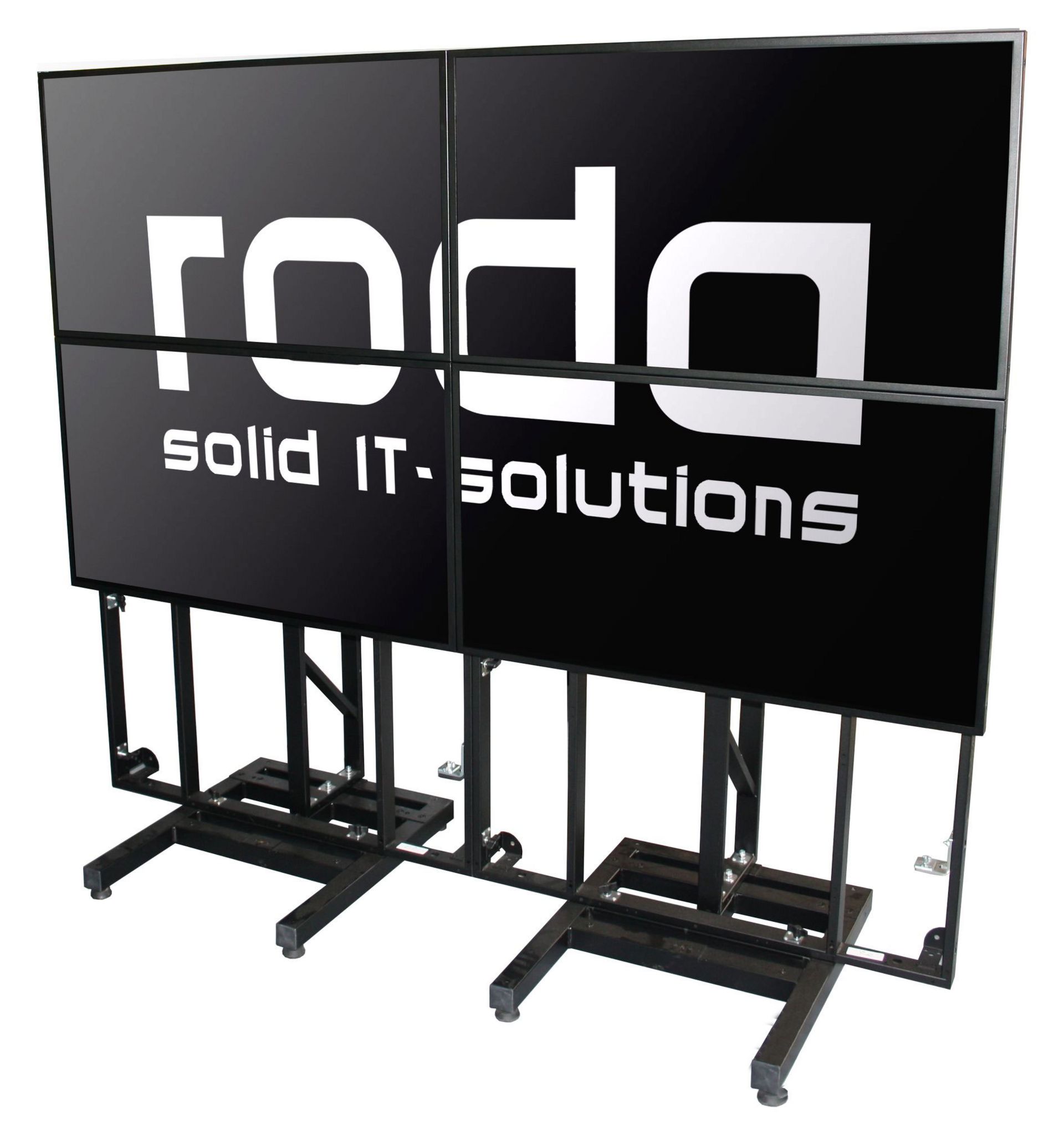

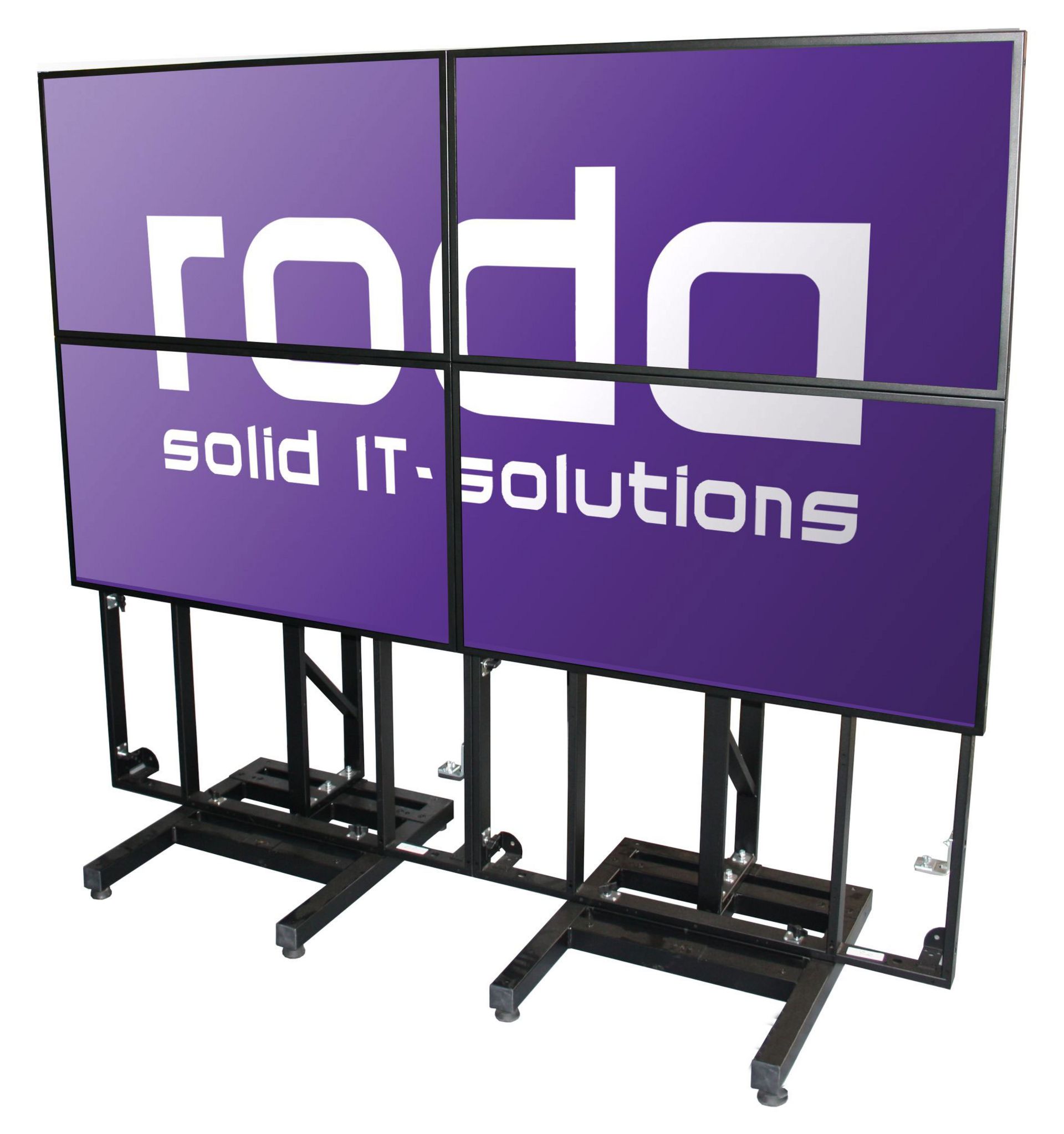

Heavy duty 4x4 video wall 65 "

The roda HEL4.0 video wall represents the continued development of HEL2.0, which has proven itself in harsh environments in various countries. The latest technologies have been adopted in the fields of computers, liquid crystal displays (LCDs) and data transmission. HEL 4.0 is the ideal device for visualizing decision data in stationary and deployable command posts. Thanks to its modular and installable design, the HEL can be equipped with a single screen or up to 4 screens at 65 "with 4k UHD resolution (3840 x 2160). The HEL-Commander operator software (video matrix ) allows the individual screens to be subdivided into almost infinite "picture-in-picture." The fiber connectors also allow for NATO 27 SDIP Level B (ER) zoning.

HEL rugged 65“ display

Display

  • 65" with extra thin bars

Resolution

  • UHD 4k, 3840 x 2160 pixels

Aspect ratio

  • 16:9

Color

  • up to 16.7 million colors

Angle

  • 178° (l/r/u/d)

Contrast

  • 4000:1

Luminosity

  • type. 450 cd/m² sans disque CEM

Reaction time

  • 8 ms (GtoG)

Power source

  • 230 V AC input and output voltage

Certification

  • IP54

VESA

  • 400

Housing

  • reinforced aluminum housing

Color

  • RAL 1013 HR matte with fine structure

Dimensions

  • 1453 x 834 x 93.4 mm

Weight

  • approx. 56 kg

HEL rugged computer

CPU

  • Intel® Core™i7-4700

Memory

  • 16 GB DDR3L RAM

Storage

  • 2x SATA III SSD RAID 0/1 supported

Interfaces

  • 6x USB2.0, 2x Gigabit LAN LWL, 4x HEL LWL display interface

Operating System

  • support for Windows 7 64 Bit, Windows 8.1 64 Bit, Windows 10 64 Bit

Power Supply

  • 230 VAC voltage input and output

Certification

  • IP54

Housing

  • rugged aluminum housing

Colour

  • RAL 1013 HR
