Lizard® RS13

The revolution in rugged Notebooks

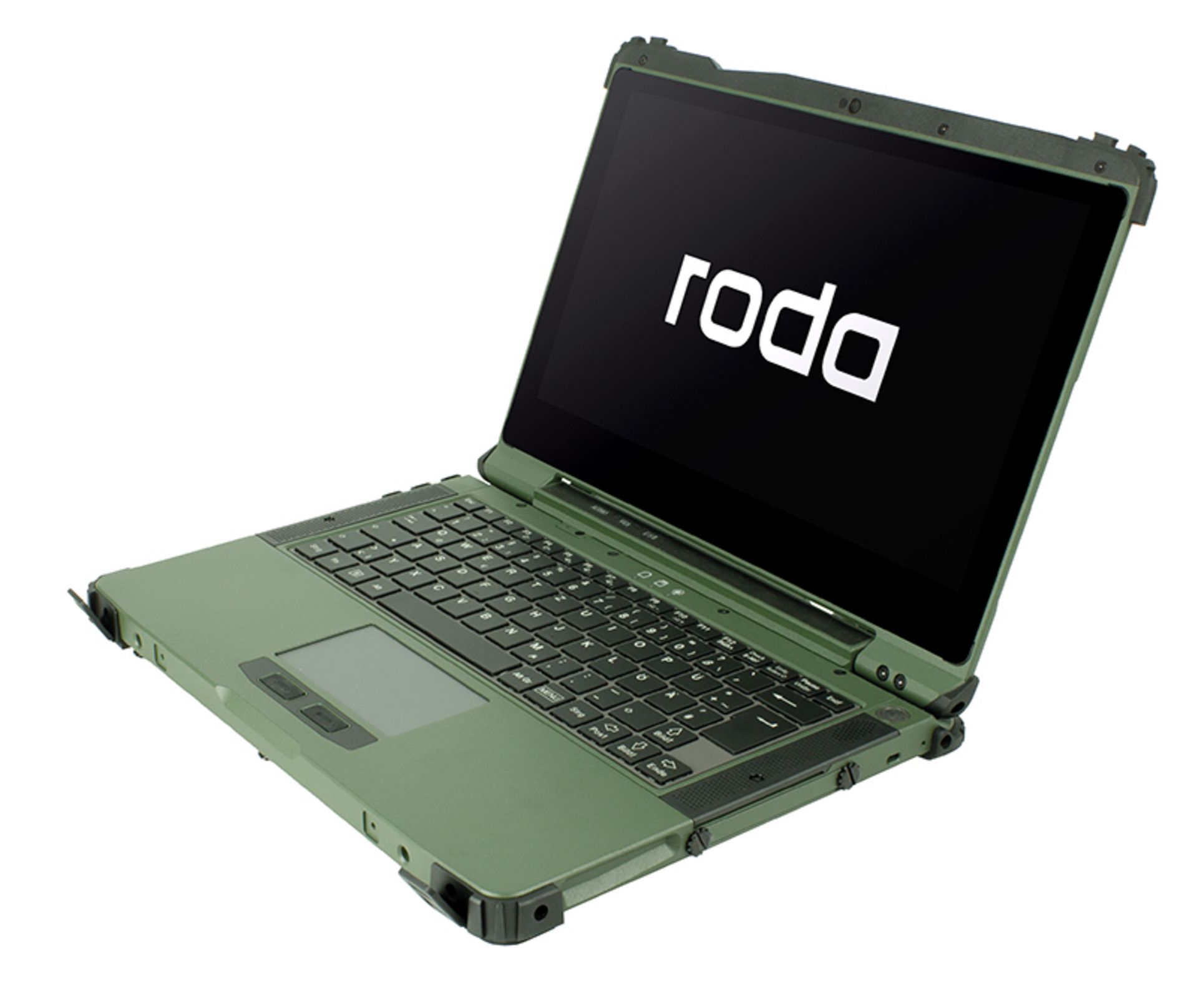

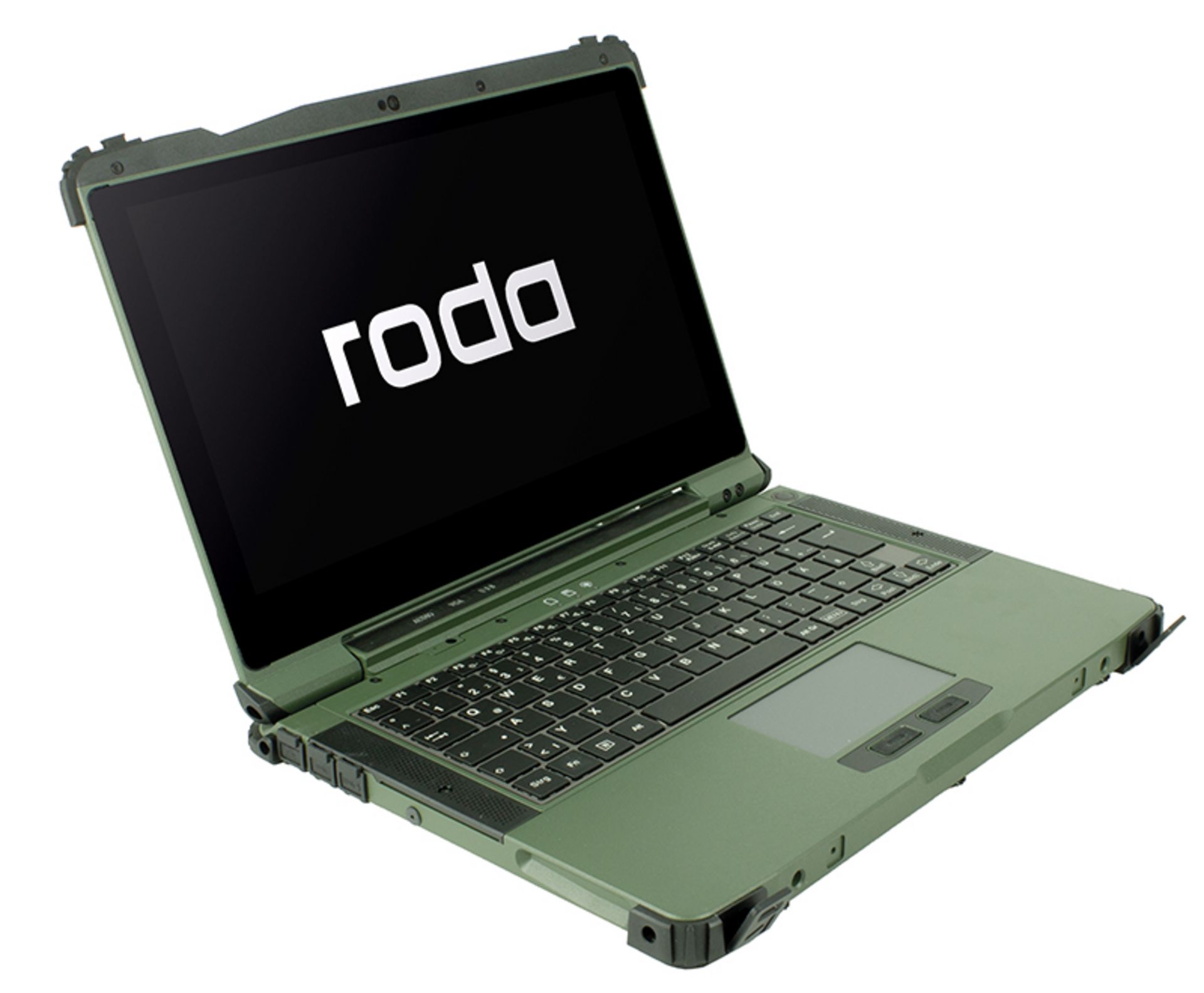

The Lizard® RS13 is a revolution for mobile applications and perfect addition to rodas proven Rocky notebooks and Panther tablets, which are usually installed in vehicles. It is a full-rugged 13" Notebook that is ultra-flat and lightweight with a housing shaped of solid aluminum. The RS13 packs all the performance needed, and much more in a compact design.

Compared with the Rocky notebooks, the weight and height could be reduced by more than 50% to 2.5 kg and 31 mm. Despite the smallest installation space and low weight, customer-specific design requirements can be implemented for instance with the integration of military round connectors. Thus, roda remains true to its customization philosophy.

Without any compromises, the fanless Lizard® RS13 meets the requirements of IP65 protection (with open caps and optional AC adapter), MIL-STD-810G (environmental) and optional MIL-STD-461G (EMC) and Tempest Zone 1.
This qualifies the Lizard® series for highly mobile operations and applications under the most adverse conditions.

Technical specifications

Display

  • LCD 13,3“ FHD (1920x1080) LED
  • LED backlight
  • sunlight readable
  • optical bonding

Chipset

  • Intel® Kaby Lake U platform

CPU

  • Intel® 7th Gen. Core™ i7-7600U processor, 4M Cache, up to 3.90 GHz

Graphics

Intel® HD Graphics 620

Memory

  • up to 32 GB DDR4 2133 MHz (1x SO-DIMM slot)

Storage

  • 2.5” SATA III drive (7mm) SSD (up to 1TB MLC) exchangeable
  • >> optional M.2 SSD slot

Audio

  • HD audio and stereo speaker

Touchpad

  • resistive (single touch)

Power supply

  • Li-polymer battery, 11,1 V, 6040 mAh
  • AC-adapter 90 W, 19 VDC, 3.4 A, 100~240 VAC, 50/60 Hz

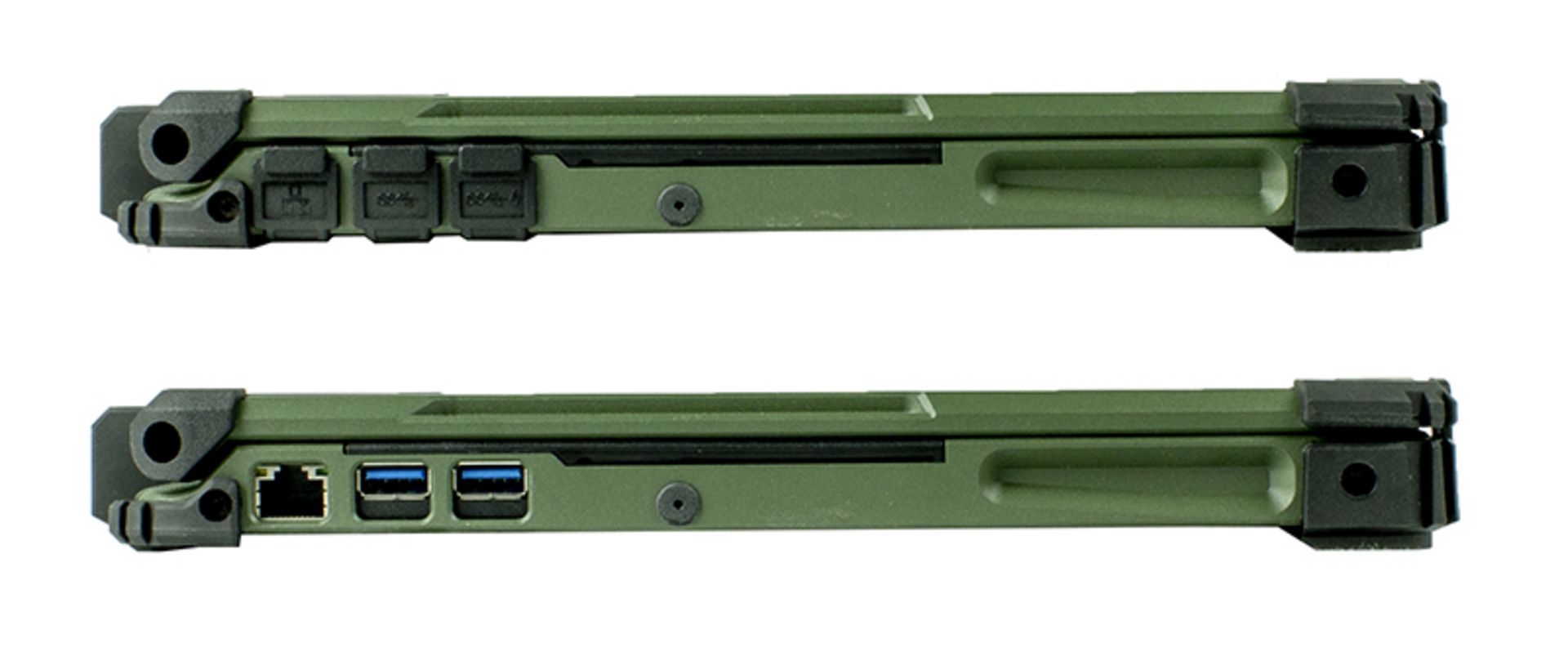

Interfaces (left side)

  • 2x USB 3.1 Gen.1 (1x fast charge)
  • 1x GBit LAN (RJ45)

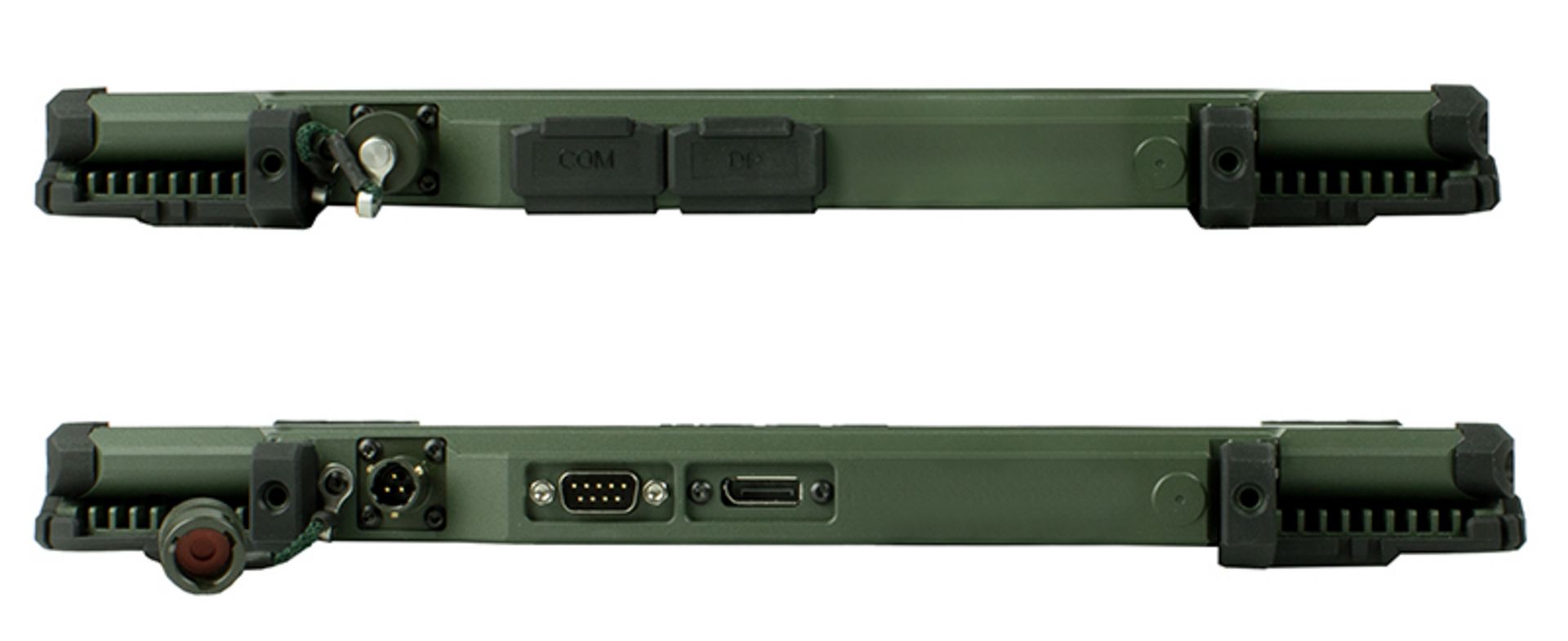

Interfaces (rear side)

  • 1x Displayport (or optional VGA)
  • 1x COM (DB9)
  • 1x DC-In (2-Pin) >> optional MIL DC-In (3-Pin Amphenol)

Interfaces (bottom side)

  • 1x multi bay port
  • >> docking solution on request

Security

  • TPM 2.0 module

Operating System

  • Windows 10

Certification

  • CE/FCC, WEEE, REACH, WHLK, RoHS2.0
  • full IP65 (with opened I/O-port covers)
  • MIL-STD-810G
  • MIL-STD-461G

Housing

  • milled anti-corrosive aluminum

Colour

  • military green (NATO olive / RAL6031HR)
  • black

Dimensions

  • 338 x 265 x 31.5 mm (L x D x H)

Weight

  • 2.5 kg with battery

Options

  • multi touch screen (capacitive)
  • touchpad (capacitive)
  • WiFi module (Intel® Wireless-AC 9260)
    • WLAN 802.11 a/b/g/n/ac
    • Bluetooth 5.0
  • GPS module u-blox M8N (GPS/GLONASS)
  • front webcam 1MP
  • embedded digital microphone
  • M.2 slot for main or 2nd SSD
  • compatible with night vision goggles
  • wide temperature range (heater: -30°C to +60°C)
  • internal vehicle adapter 12~32 VDC & surge protector
  • I/O-ports (left side): HDMI
  • I/O-ports (rear side): VGA (trade-off with Fischer VGA)
  • optional interfaces as MIL grade connectors, e.g.: (max. 3 MIL-interfaces possible)
    • MIL COM interfaces (RS232/RS422)
    • MIL Audio interface (audio/headset)
    • MIL VGA interface for external display
    • MIL USB2.0 interface
    • MIL GBit LAN interface
  • MIL-STD 461G certification
    • Ground Army (Navy mobile & Army)

LEXIBLE MODIFICATIONS

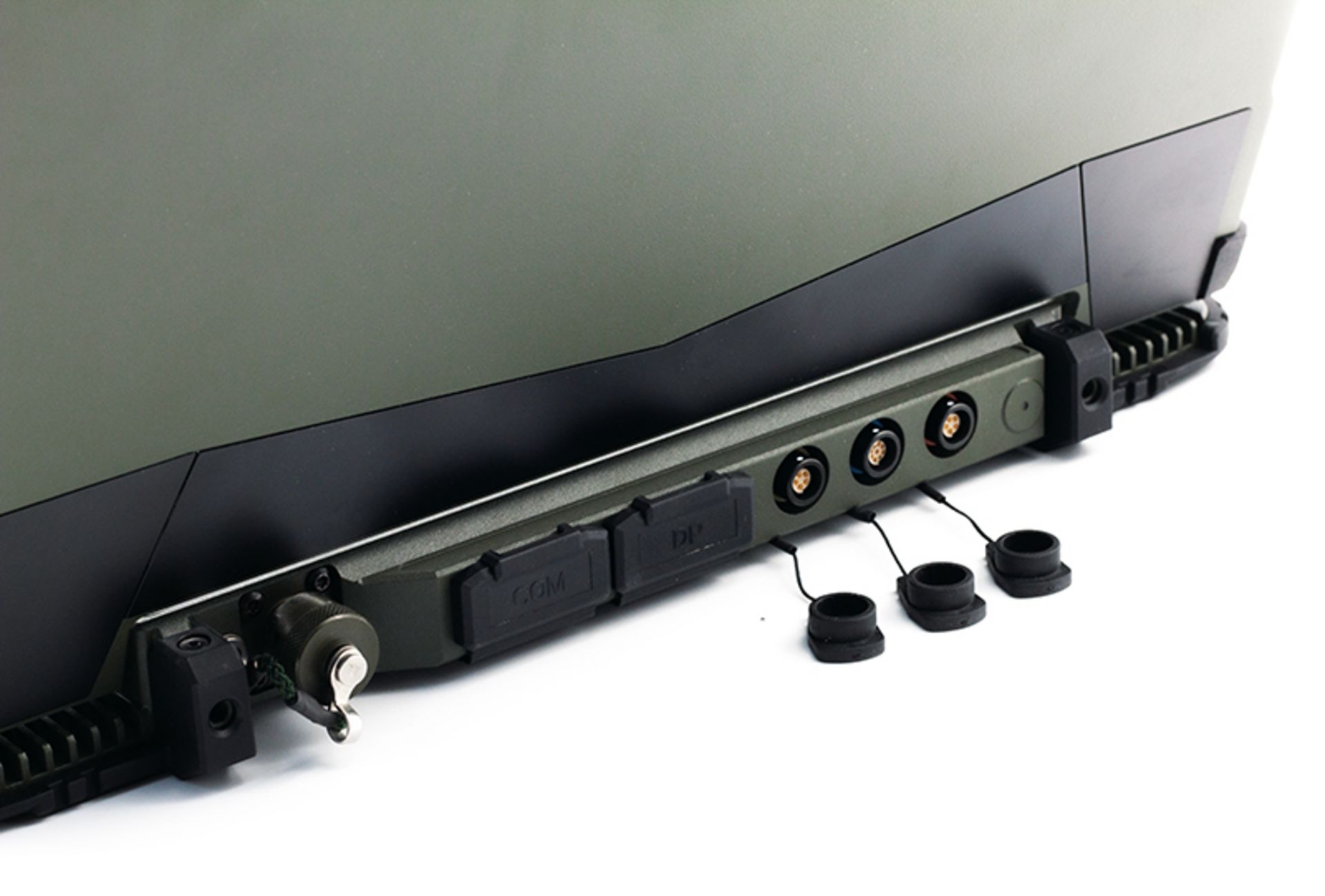

The devices are designed to enable customer specific adaptions. Thus, the Lizard® RS13 already offers plenty of options on the back for almost all types of military connectors. If more ports are needed, the housing can be customized and the standard ports can be replaced by military round connectors.

CUSTOMIZED FOR YOUR MISSION

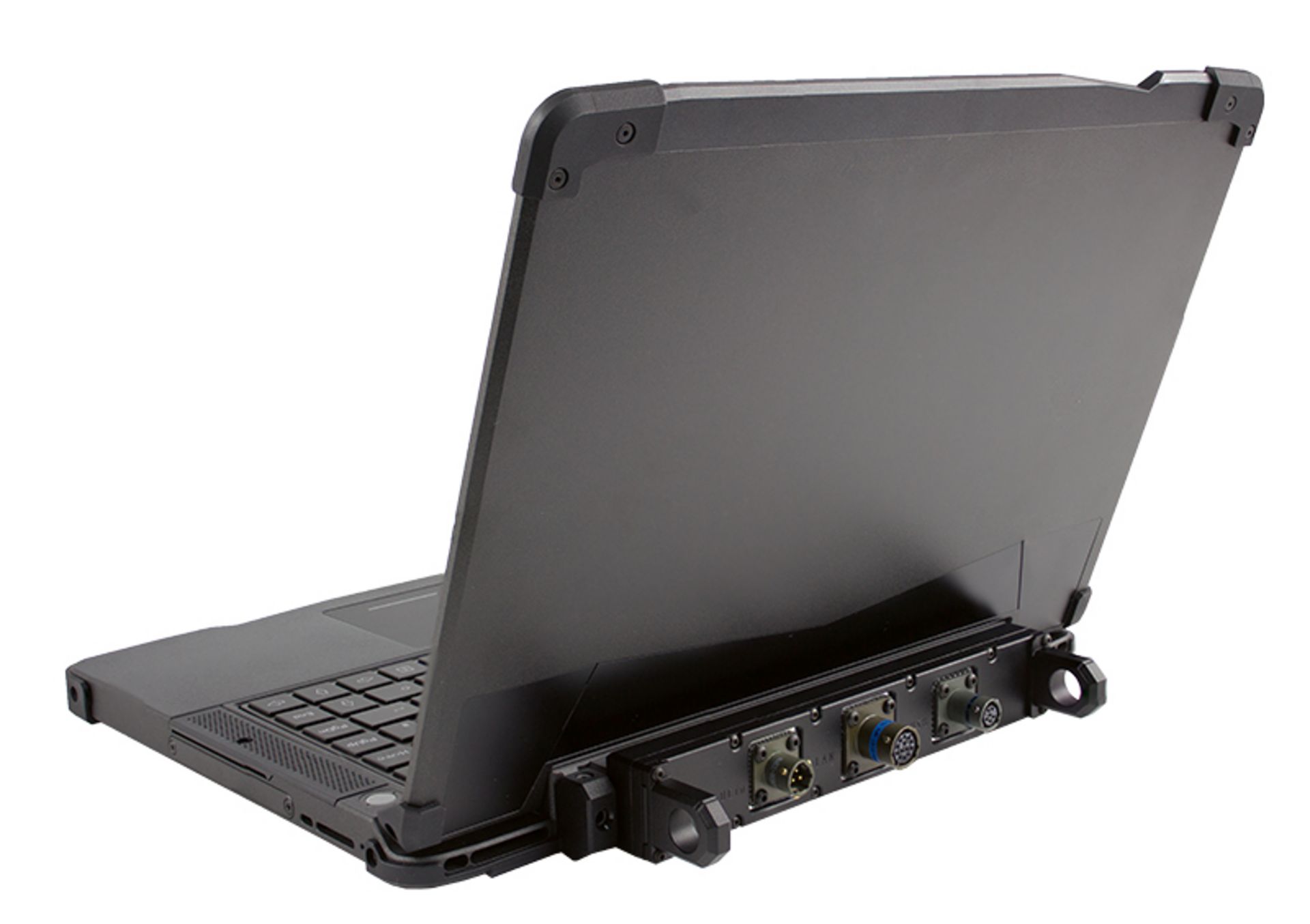

Additional military interfaces can be realized by means of a bracket system. This gives us the possibility to realize and deliver almost any modification required by the customer, tailored to individual request.

ULTRA COMPACT

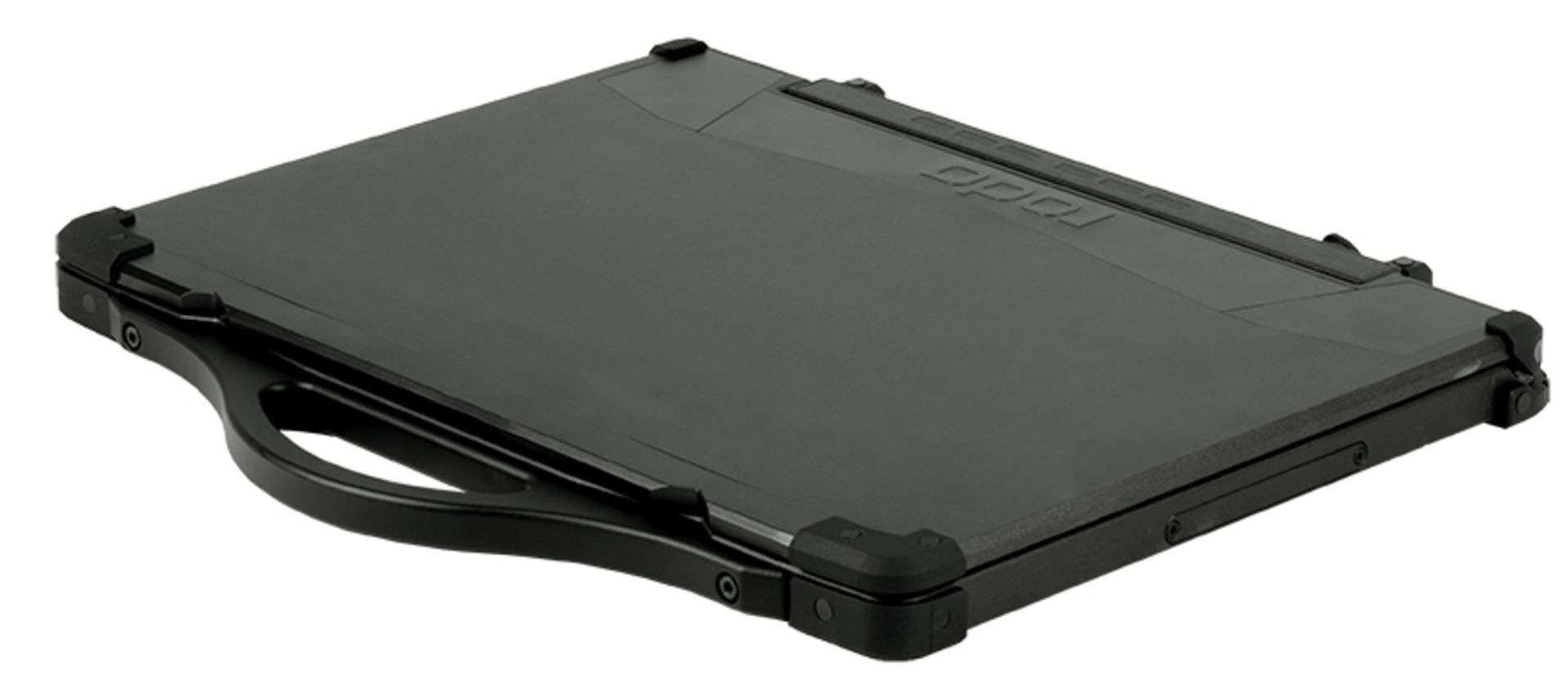

With its compact design, the Lizard® RS13 is one of the lightest, fully-rugged notebook devices on the market. Nevertheless, the compact design of the device is not limited to the possibilities of customer-specific adaptations. This makes it the ideal notebook for mobile applications.

Accessories


Standard AC-Adapter 90W
for 2-pol Industry or 3-pol MIL-connections
External DC adaptor 90W
for 2-pol Industry or 3-pol MIL-connections
Mounting plate
Fixation plate for vehicle installation
ShockMount
Mountingplate with shock absorber
DockUnder port replicator
for Lizard RS & RV series
Transport bag
External DVD(RW) drive
