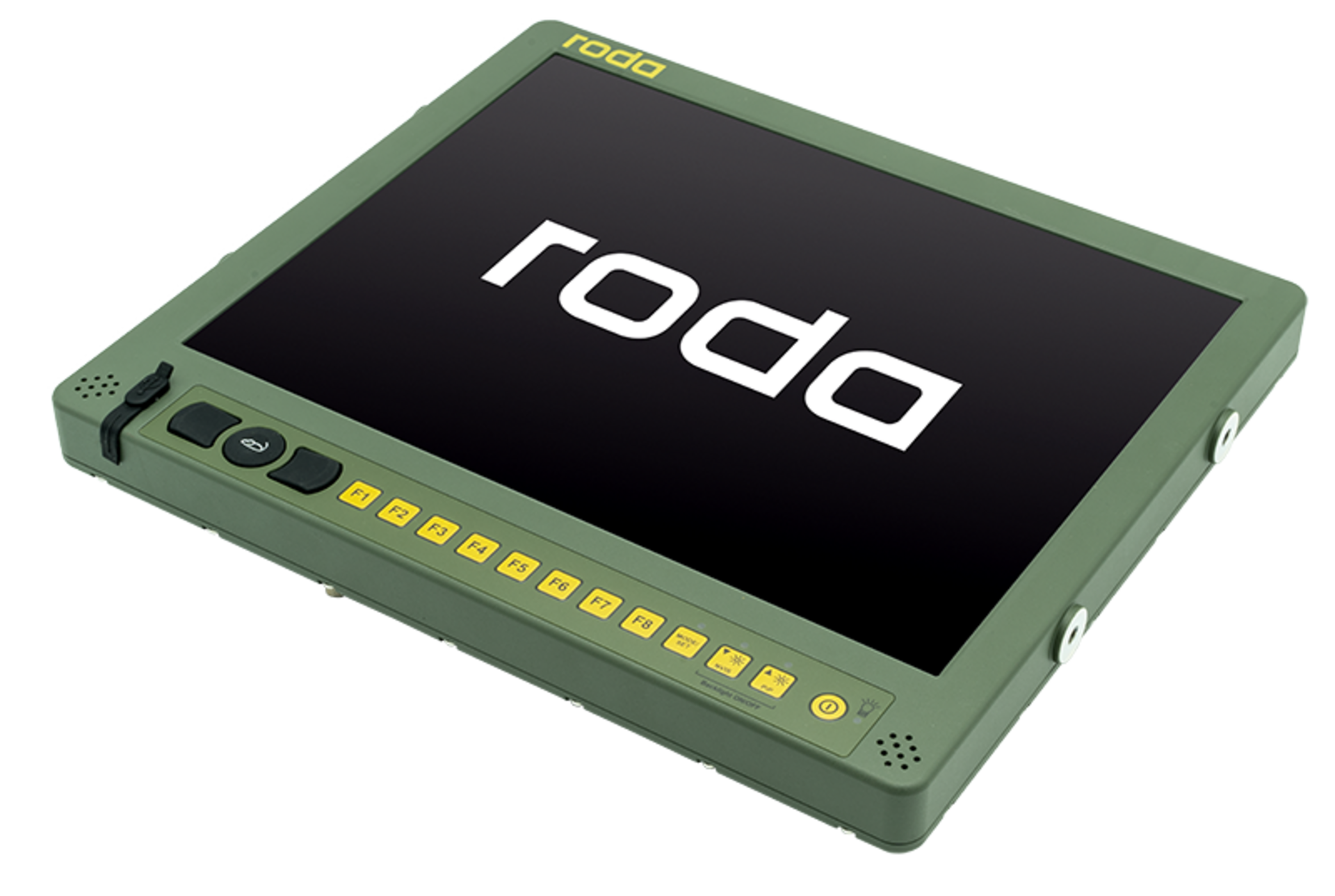

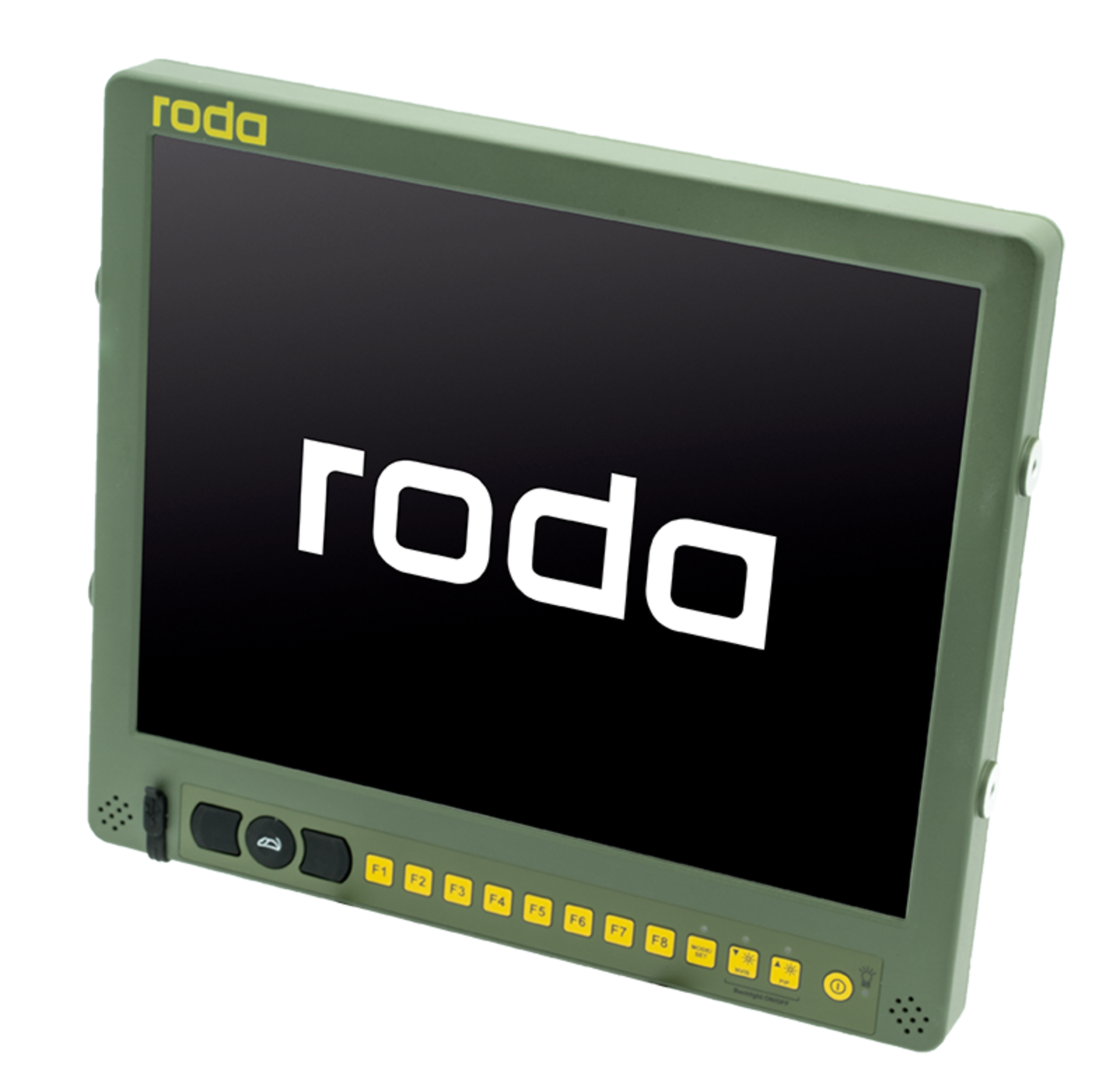

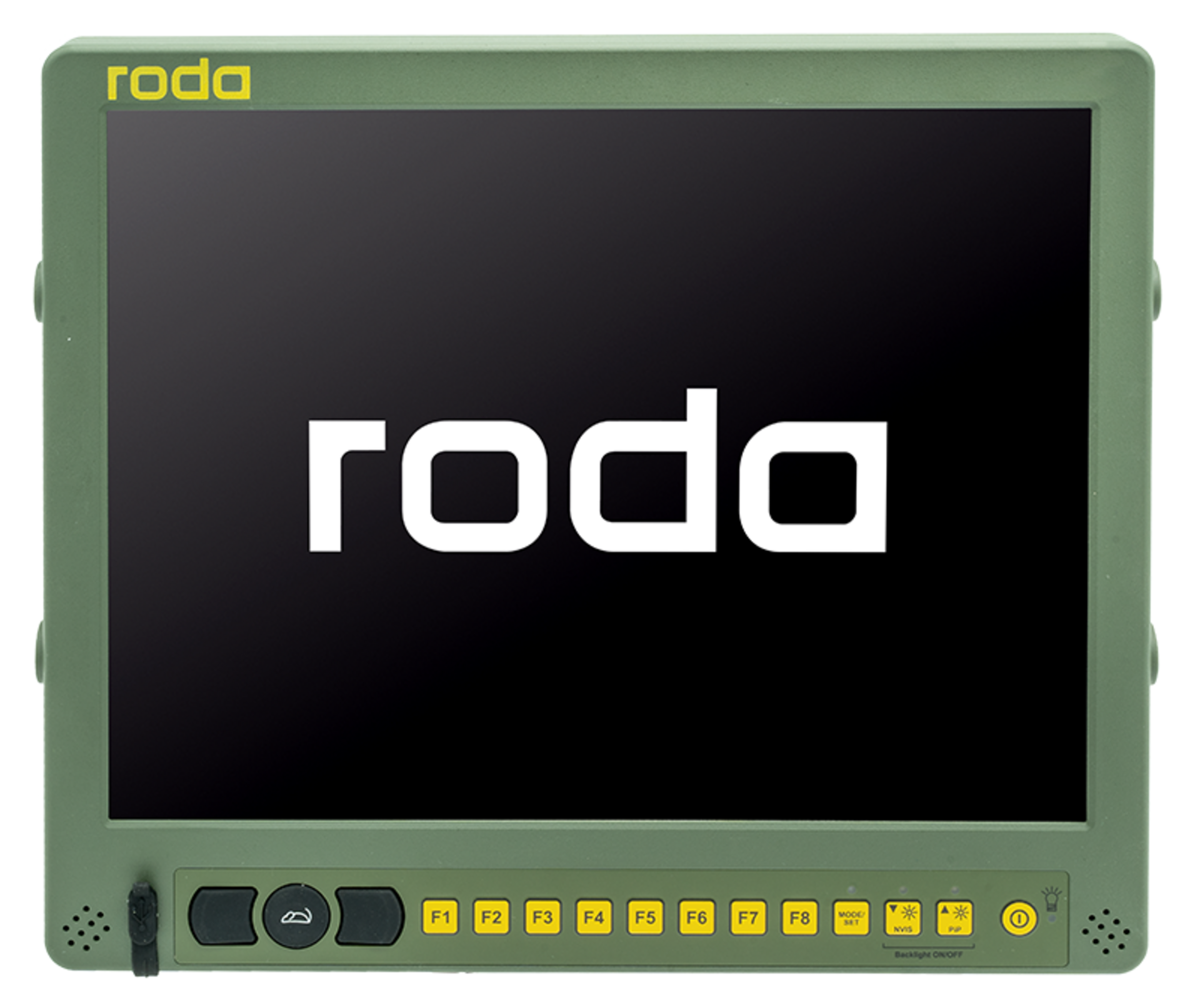

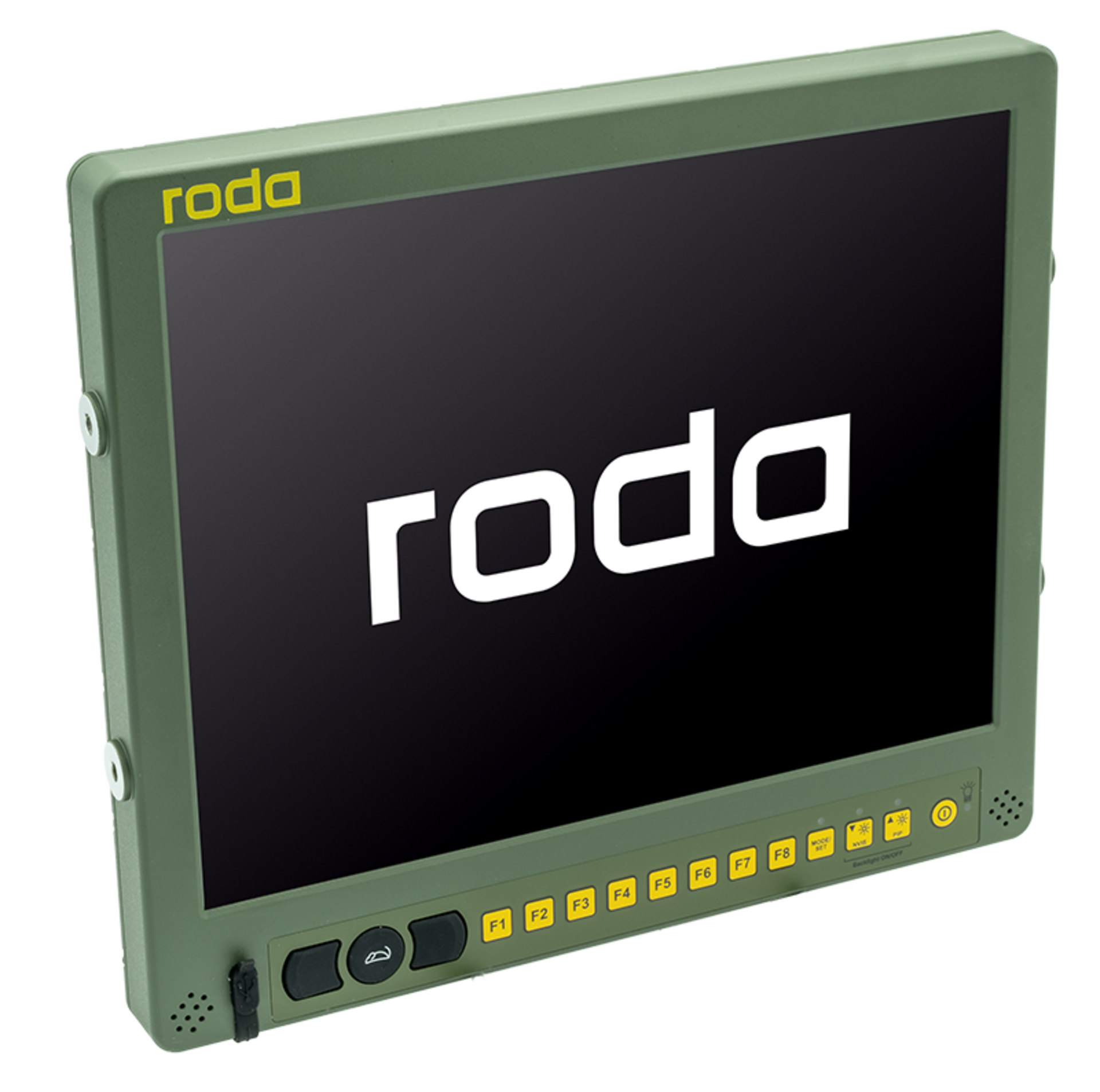

Serval RD15-UXGA-03

rugged 15" display

All rugged roda RD series displays are MIL-STD810, MIL-STD461, and ≥ IP54 certified for use under almost all environmental conditions. As a standard model, they can operate under a temperature range of -20°C to +55°C. With its remote on/off function button/interface and metal housing, the RD series is particularly suitable when combined with a roda computer as well as for installation in protected and armoured vehicles and cabins that, due to space constraints, require a decentralised installation of computer and display. The system can be started at the touch of a button on the display. The perfect conditions for efficient operation!

The compact 15" panel is available in a diverse range of versions and can be customised as well. The displays with and without touch screen, picture-in-picture (optionally with military connector), as well as blackout light and NVIS functionality are frequently used under tough conditions.

Technical specifications

Display

  • 15" TFT colour display (38.1 cm visible area)
  • Integrated touchscreen, resistive

Resolution

  • UXGA 1600 x 1200 pixels

Aspect ratio

  • 4:3

Colour display

  • Display of up to 16.7 million colours or 256 grayscales

Viewing angle

  • vertical: 160°
  • horizontal: 160°

Contrast

  • 700:1

Brightness

  • up to 800 cd/m²

Reaction time

  • 25 ms (Ton+Toff)

Certification

  • IP 65 (front) / IP54 connections
  • MIL-STD 810F
  • MIL-STD 461E Ground Navy

Housing

  • hardened magnesium housing

Colour

  • military-green
  • other colours on request

Dimensions

  • 351 mm x 300 mm x 57 mm

Weight

  • approx. 3.5 kg

Details

  • 8 programmable function keys
  • luminance of the display and keyboard dimmable separately
  • delay of the power button (ON / OFF <- press 5 sec)
  • mousepad with right and left mouse button
  • 2 speakers
  • dimmable backlight to 0,37 cd/m²
  • quick shut down the backlight
  • OSD menu in front panel
  • traction relief
  • Invisible mode (door contact)

Interfaces

front side:

  • 1x USB2.0

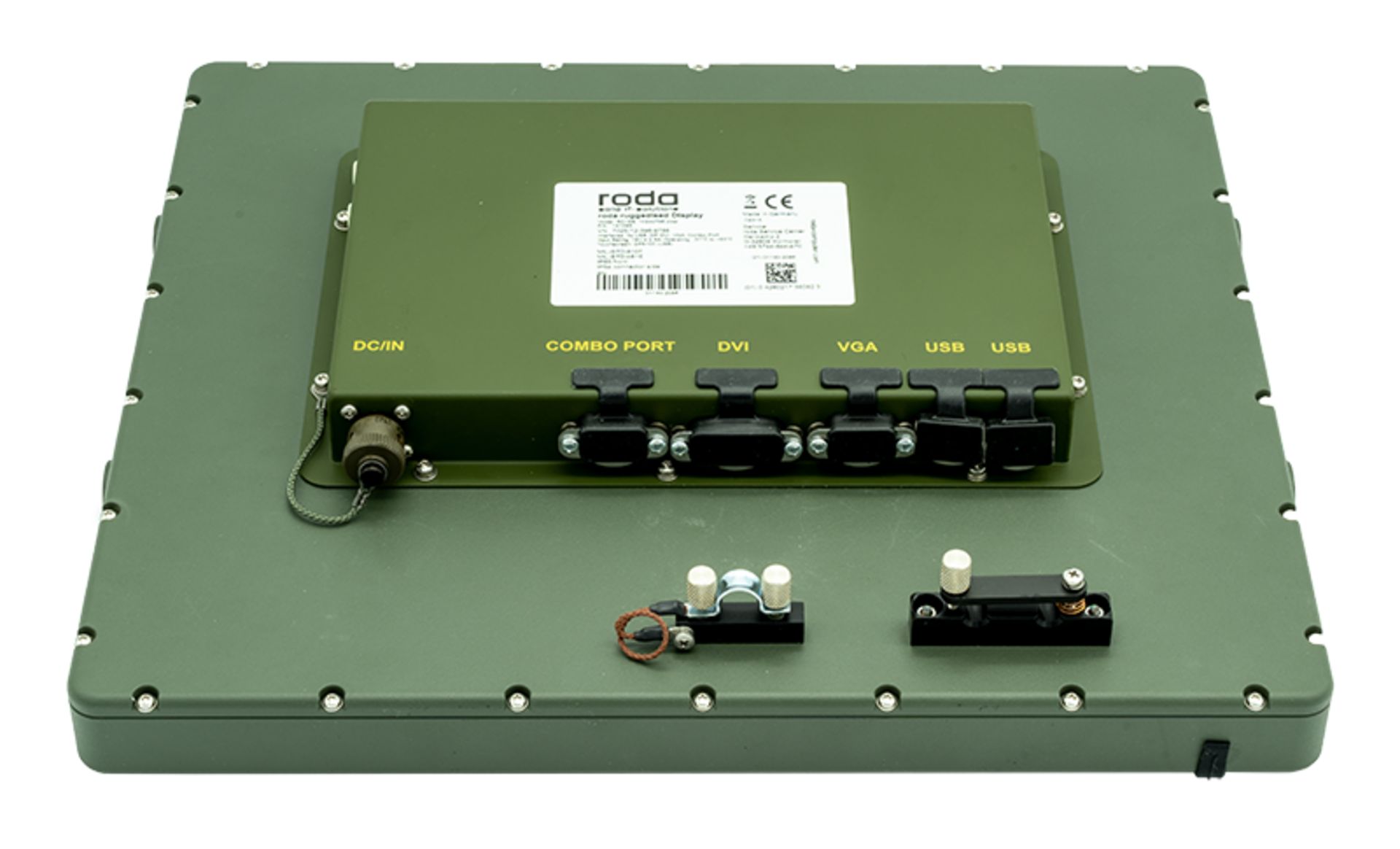

rear side:

  • 3x USB3.1
  • 1x VGA
  • 1x DP-DVI
  • 1x MIL DC-In (integrated Invisible mode function)
