Rocky RK15

The new generation with unique IP65 safety concept

The new generation Rocky model remains true to the roda product philosophy. A form factor that has remained constant to the previous generations, and the unique IP65 protection concept, guarantee that water and dust don't pose any hazard, even with uncovered interfaces and removed drives. Performance has been greatly enhanced, with a stronger Intel® platform and more working memory. Great importance was placed on hardware compatibility with the Microsoft Windows 10 operating systems.

The Rocky RK15 is perfectly suited as a computer for installation in protected and armoured vehicles and aircrafts, with the addition of military connectors and suitable accessories – which is greatly appreciated by many users.

Technical specifications

  • LCD 15.1“ UXGA (1600×1200)
  • LED backlight
  • sunlight readable

Chipset

  • Intel® Tigerlake-H Platform
    Mobile Intel® RM590E

CPU

  • Intel® Xeon® W-11865MLE processor,
    24 MB cache, 8 cores, up to 4.50 GHz

Graphics

  • Intel® Iris XE

Memory

  • up to 64 GB DDR4 3200 MHz ECC/nonECC (2 slots)

Storage

  • 2x exchangable PCIe NVME SSD

FlexBay

  • exchangable optical drive: DVD±RW
  • Optional: Second Li-Ion battery, 10.8 V, 8700 mAh

Power supply

  • Li-Ion battery, 10.8 V, 8700 mAh
  • AC-adaptor 90 W, 90 - 240 V, 50 - 60 Hz
  • Optional: Integratted vehivle adaptor 12 - 32 V with surge protection

Interfaces

  • 2x USB2.0 (1x quick charge)
  • 2x USB3.1 Gen. 2
  • 1x 2.5 GBit LAN (RJ45)
  • 3x Audio (3.5 mm jack)
  • 1x DisplayPort
  • 1x VGA (DB15)
  • 1x DVI (with roda display remote)
  • 2x COM (DB9)
  • 1x Express Card (PCIe)
  • 1x DC-In (2-pin)
  • 1x docking connector

Optionale Interfaces

  • 1x MIL DC-In (3-Pin)
  • 1x PS/2
  • 1x PCMCIA
  • 1x Fiber-LAN (100FX, 1000LX, 1000SX)
  • additional 1x GBit LAN (RJ45)
  • additional 2x COM (DB9)
  • 1x DockUnder docking solution

Security

  • TPM 2.0

Operating system

  • Windows 10 Professional 64 Bit

Certification

  • CE, FCC, WHQL, WEEE, REACH,
  • IP65 (with open I/O-ports),
  • MIL-STD-810
  • MIL-STD-461 Ground Navy (Navy fixed & Air Force)

Housing

  • rugged magnesium housing

Colour

  • black
  • military green RAL6031HR
  • other colours on request

Dimensions [W×H×D]

  • 353 x 78.7 x 301 mm

Weight

  • 5.5 kg

Options

  • Touch screen resistive, sunlight readable
  • Heater for -30 °C operating
  • 4x RS232/422/485 external interfaces
  • 2nd LAN card 10/100/1000 MBit
  • Fiber optic LC or HMC connector (100FX, 1000LX oder 1000SX)
  • Intel® WiFi 6E AX210 (WLAN 802.11 a/b/g/n/ac /ax + Bluetooth 5.2)
    Ublox M9N GPS/GLONASS
  • Integrated Chip/Smart Card Reader class 1
  • Internal vehicle adapter (direct 12 VDC- 32 VDC) incl. SP200 module / surge protector
  • Different keyboard versions available
  • Isolated Housing for vehicle installation
  • Military grade connectors for nearly all kind of interfaces on request
  • Upgrade to MIL-STD-461 Ground Army (Navy mobile & Army)
  • Certification according to TEMPEST SDIP 27 Level B (ER)

CUSTOMIZED FOR YOUR MISSION

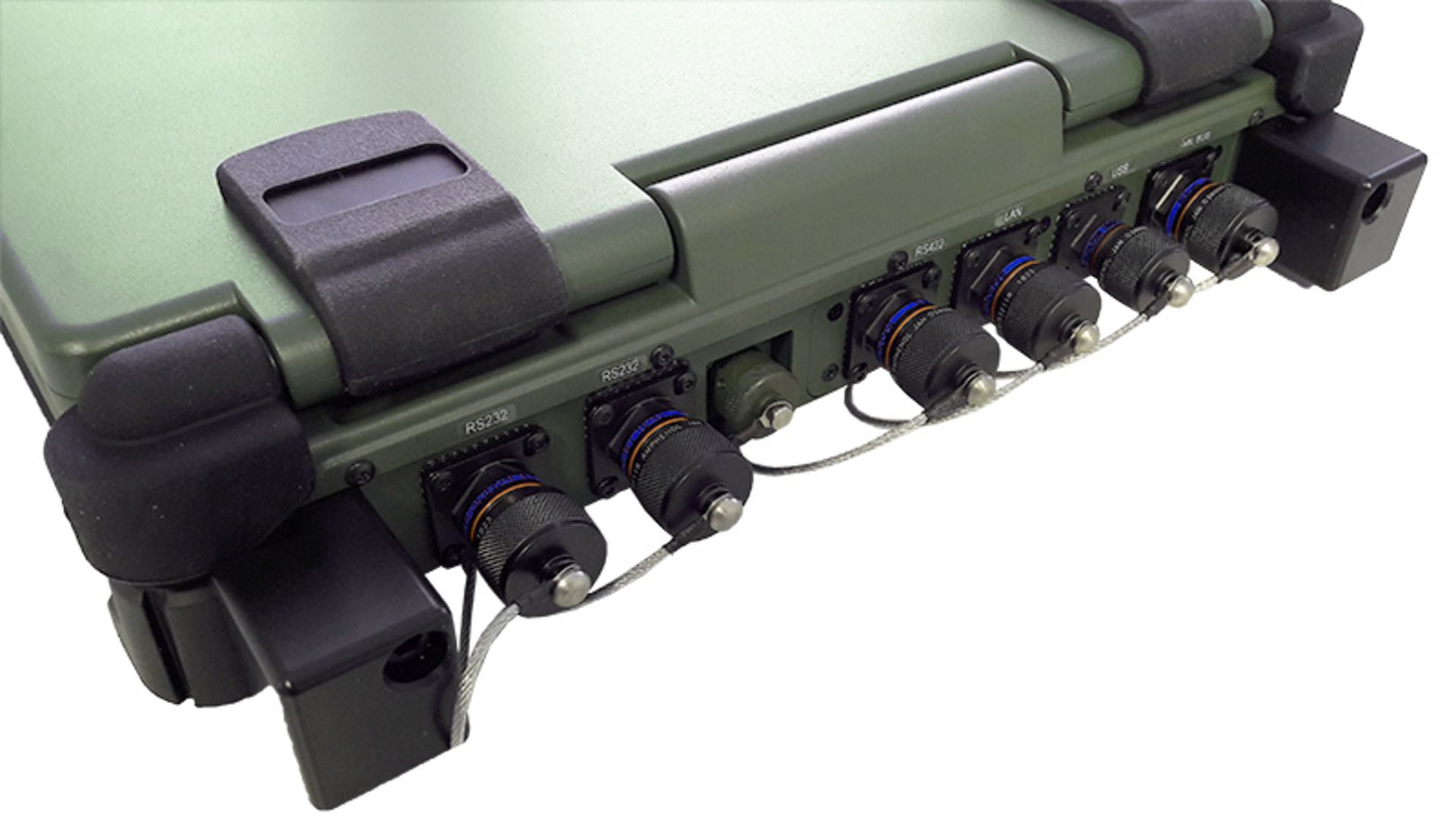

The Rocky series can be customized down to the smallest detail to create the smartest solution for your needs. The devices already offer plenty of space on the back for almost all types of military connectors. If more ports are needed, the housing can be customized and the standard ports can be replaced by military round connectors.

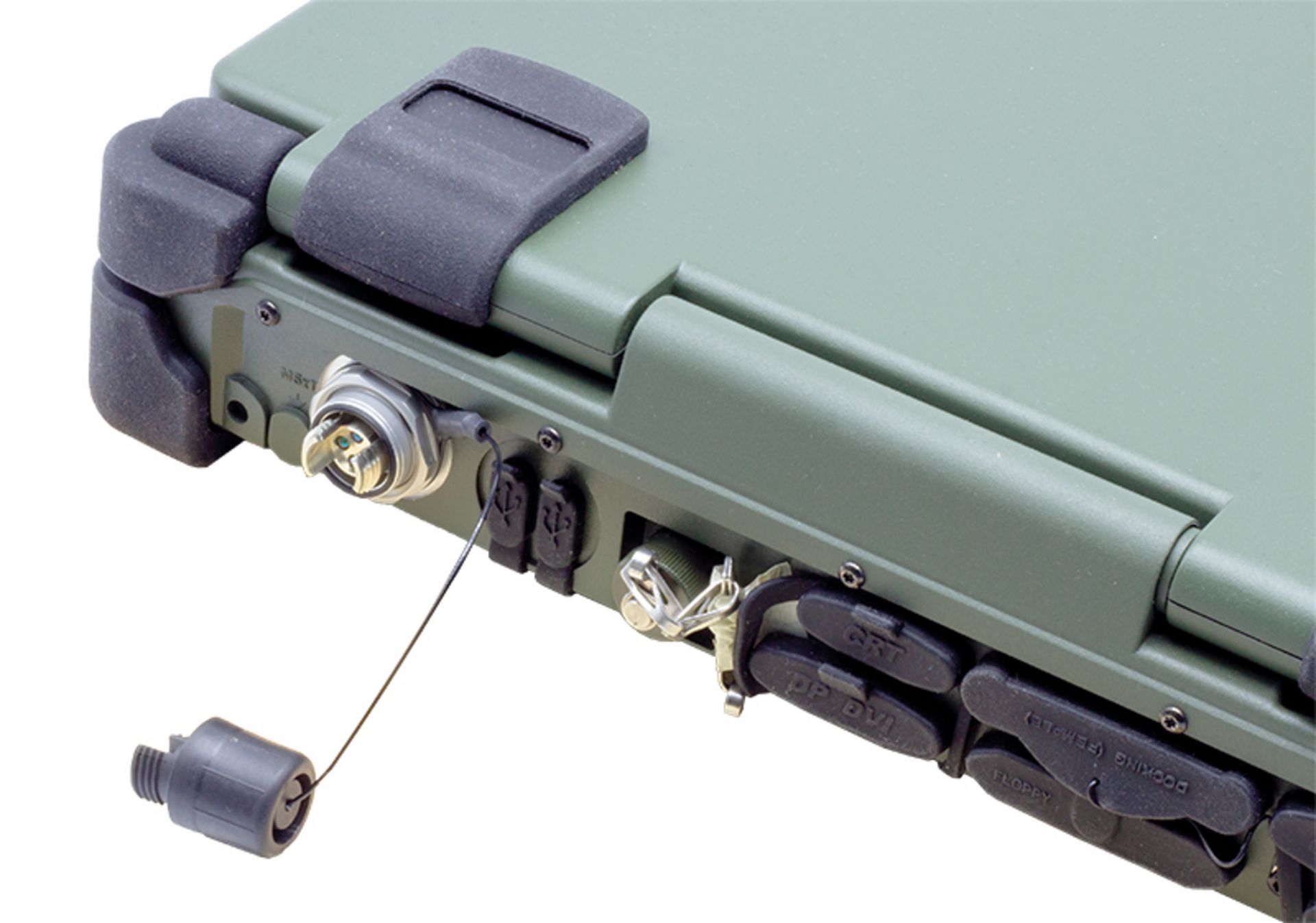

Fiber to the Rocky

The Rocky is one of very few products on the market with optical LAN Interfaces. roda is able to integrate demand oriented and individual solutions, concerning both, standard LC interfaces or rugged HMC / HMA.

Flexbay Extention

A FlexBay Modul can be integrated, with the flexible DVD-Drive Any standard model of the Rocky can be modified to the required configuration and application within a very short time.

Accessories


Standard AC-Adapter 90W
for 2-pol Industry or 3-pol MIL-connections
External DC adaptor
Mounting plate
Fixation plate for vehicle installation
ShockMount
Mountingplate with shock absorber
DockUnder port replicator
for Rocky RK series
Transport bag
External DVD(RW) drive
