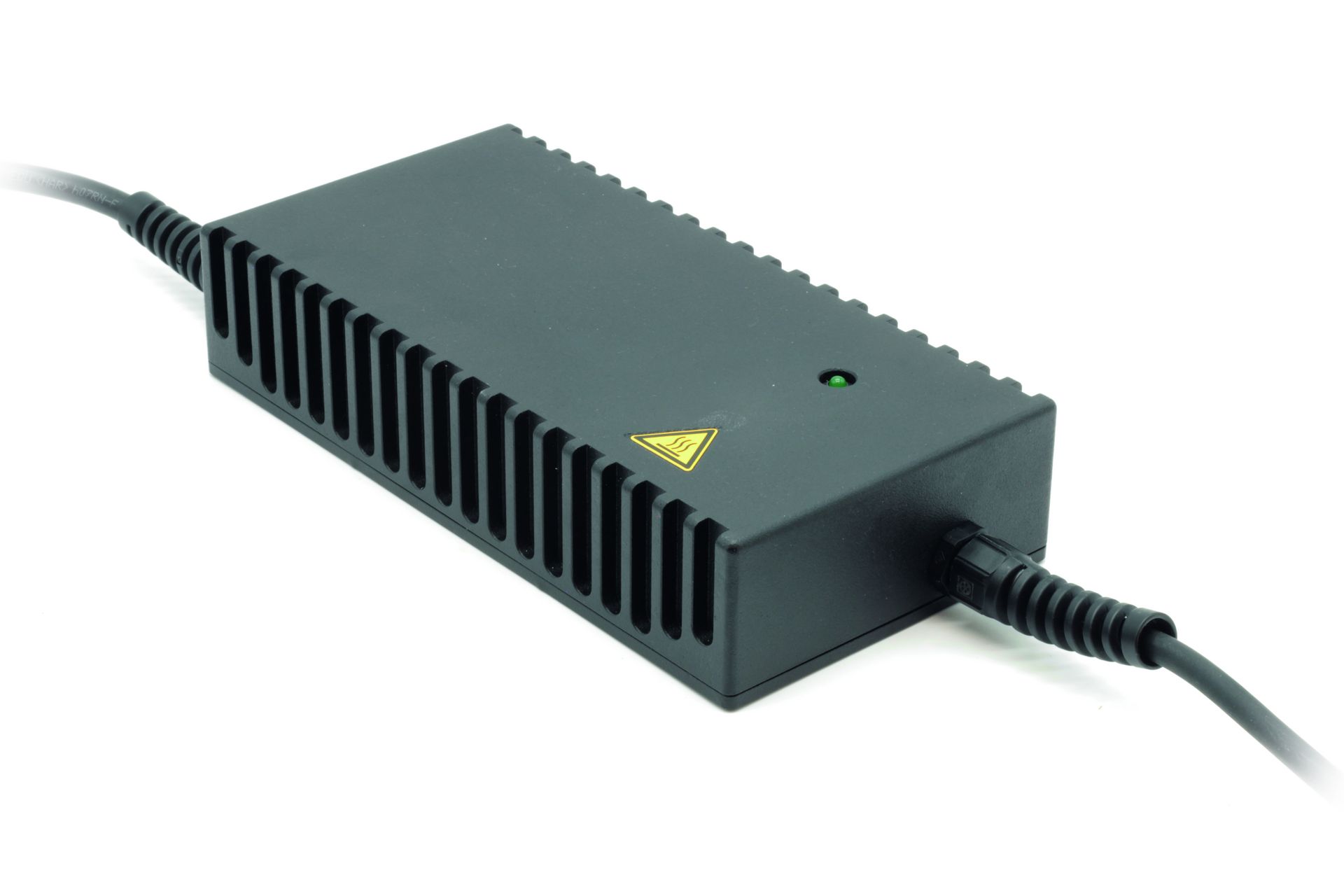

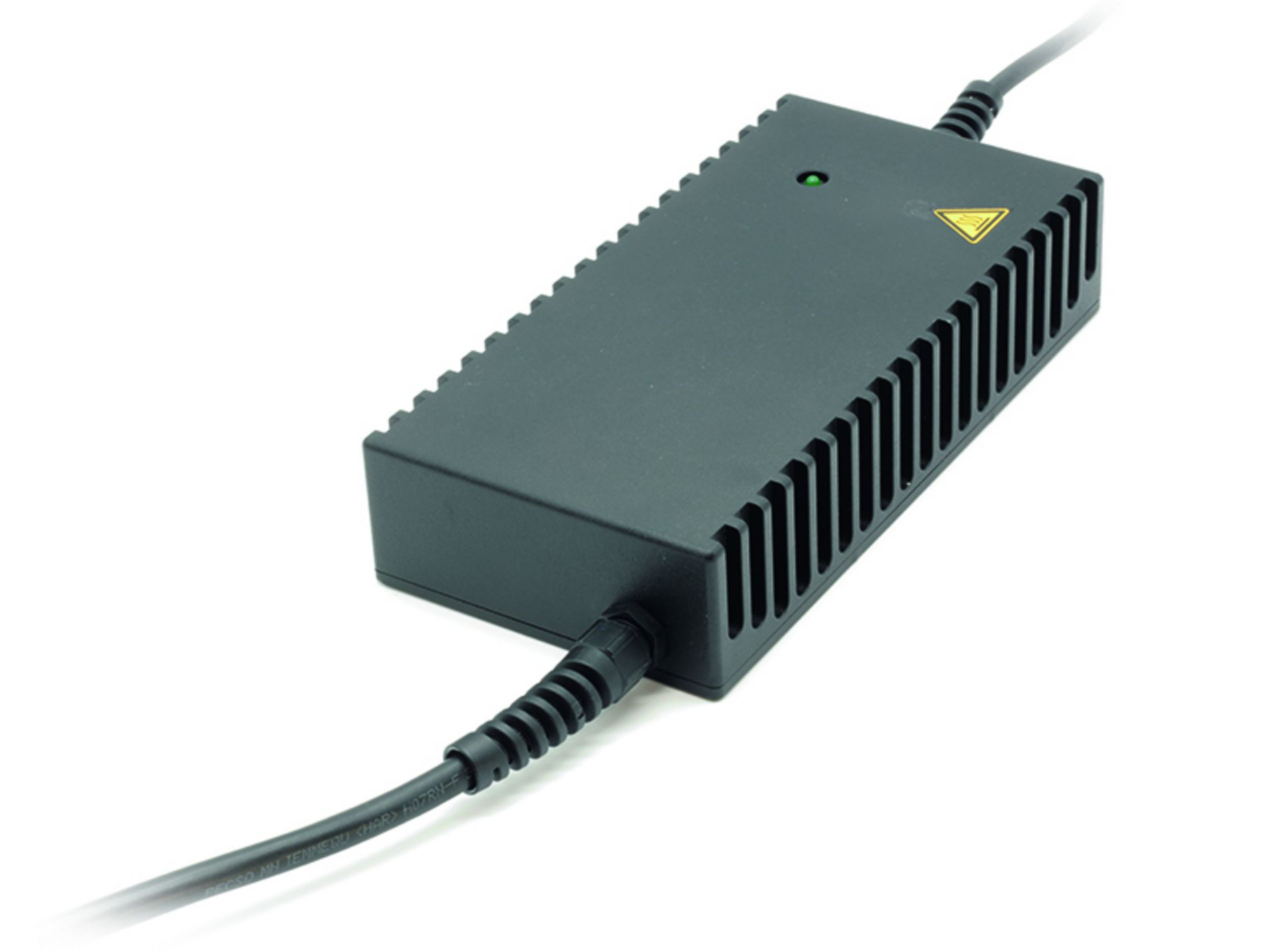

AC/DC power supply AC300

300W AC adapter

The AC/DC adapter AC300 is a new roda design based on a LLC topology for power up to 300 watt. The LLC resonant topology allows for zero voltage switching of the main switches thereby dramatically lowering switching losses. Moreover there is a synchronous rectification control on the secondary side that leads to a boosted efficiency. Efficiencies of > 98% can be achieved with LLC resonant converter.

Besides above, the special feature of this MIL power supply is best EMC properties according to MIL-STD-461G as well as a frequency range of 50 Hz, 60 Hz and 400 Hz. The hardened and powder-coated aluminum chassis makes it dust, vibration and water resistant and meet the environmental requirements of MIL-STD-810H. Connectors on AC and DC side are freely selectable.

General

Safety

  • EN62368-1

CE conformity

  • manufacturer declaration directive related to low voltage

Environmental

  • designed to meet: MIL-STD-810H

EMC

  • designed to meet: MIL-STD-461G

Cooling

  • convection cooling

Indicators

  • output: 1 LED green

Features

  • 110 VAC 60 Hz, 115VAC 400 Hz
  • 230 VAC 50Hz
  • protection class I
  • compact and robust set-up
  • shielded aluminium housing
  • transient protection
  • LED-indicator
  • ingress protection IP65
  • high efficiency
  • active PFC
  • short circuit proof (output)
  • overvoltage and current proof  (output)
  • overtemperature protection
  • temperature: -20°C to +60°C
  • environmental conditions according to MIL-STD-810H/461H
  • connector and cable type customizable

Input values

Input voltage / Frequency

  • 110 VAC (60 Hz), 115 VAC (400 Hz)
  • 230 VAC (50/60 Hz)

Input current

  • type. 3.0 A (115 V)
  • type. 1.5 A (230 V)

Input current

  • typical 3.0 A (115 VAC)
  • typical 1.5 A (230 VAC)

Fuse

  • internal

Efficiency

  • 50/60 Hz typical > 90 %
  • 400 Hz typical > 85 %

Connections (cables)

  • power cord (Schuko/NEMA)

Cable length

  • 147 ± 5 cm

Output values

Output voltage

  • 12 VDC ± 5%, 19 VDC ± 5% or 24 VDC ± 5%
  • others on request

Tolerance

  • ± 5% typical

Output power

  • 300 W (max.)
  • -20°C up to +60°C

Residual ripple

  • < 100 mV

Connections (cables)

  • connector: on customer's request

Cable length

  • ca. 115 cm

Resistance

  • short circuit, overvoltage and overload proof

Mechanics

Housing

  • aluminium / RAL9005 (black)
  • others possible

Protection class

  • IP65

Dimensions

  • 237 x 118 x 49 mm (w/o cable fitting)

Weight

  • approx. 2,4 kg
