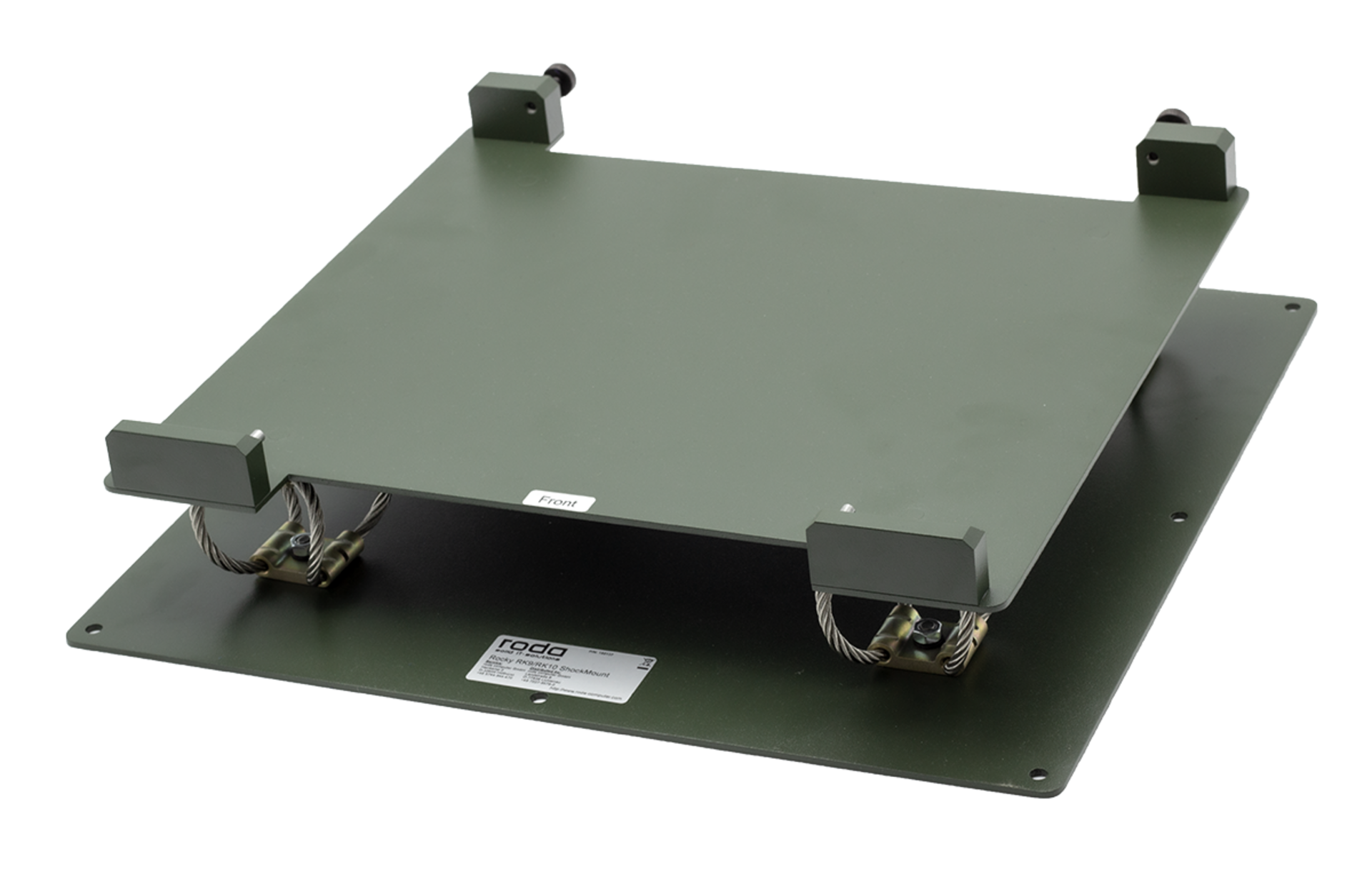

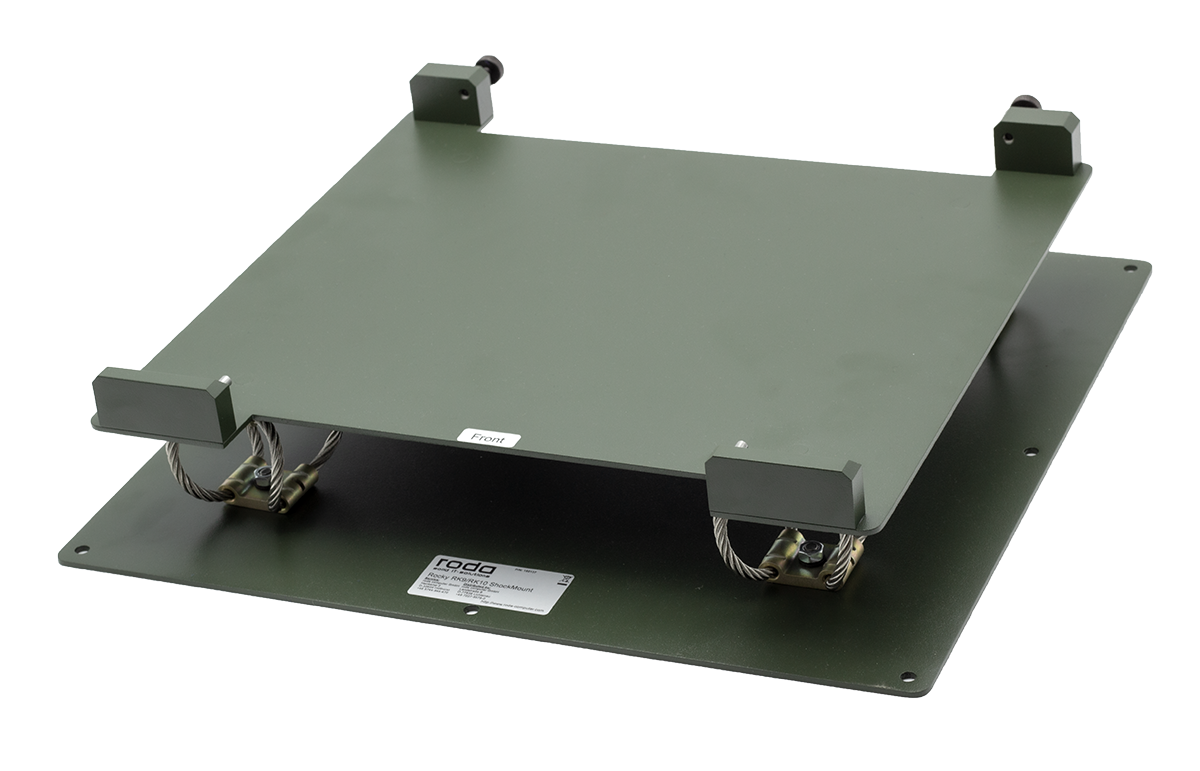

ShockMount

For vehicle mounting for Lizard® or Rocky notebooks

With the ShockMount for the roda notebooks of the Lizard® and Rocky series, any device can be securely mounted, e.g. in vehicles, and additionally protected against shock effects and vibrations. For this purpose, the base plate has mounting holes for screwing the plate and corresponding mounting holes on the corresponding mounting plate for the notebook which is connected to the base plate via special absorber springs. The mounting plates are available either as a stand-alone version with knurled screws or with quick-release screws to secure the units. They are available in 4 sizes and fit the Rocky RK, Lizard® RS, Lizard® RW/RV or Lizard® RB units. As standard they are available in the colours Nato-Olive or black. However, other colours can be realised on request.

Technical specification

Mounting

  • Fixation of the
    • Lizard® RS-Notebooks
    • Lizard® RV/RW Notebook
    • Lizard® RB notebooks
    • Rocky RK notebooks

Version

  • Version with knurled screws
  • Version with quick release fastener

Material

  • Aluminium, powder-coated

Colours

  • NATO green RAL 6031
  • black RAL 9005

Dimensions [W×H×D]

  • Base plate with absorber springs: 390 x 358 x 59 mm
  • Lizard® RS: 338 x 109.5 x 86 mm
  • Lizard® RV/RW: 386 x 319 x 85 mm
  • Lizard® RB: 422 x 34.5 x 85 mm
  • Rocky RK: 351 x 321 x 87 mm

Weight

  • approx. 2.90 kg
