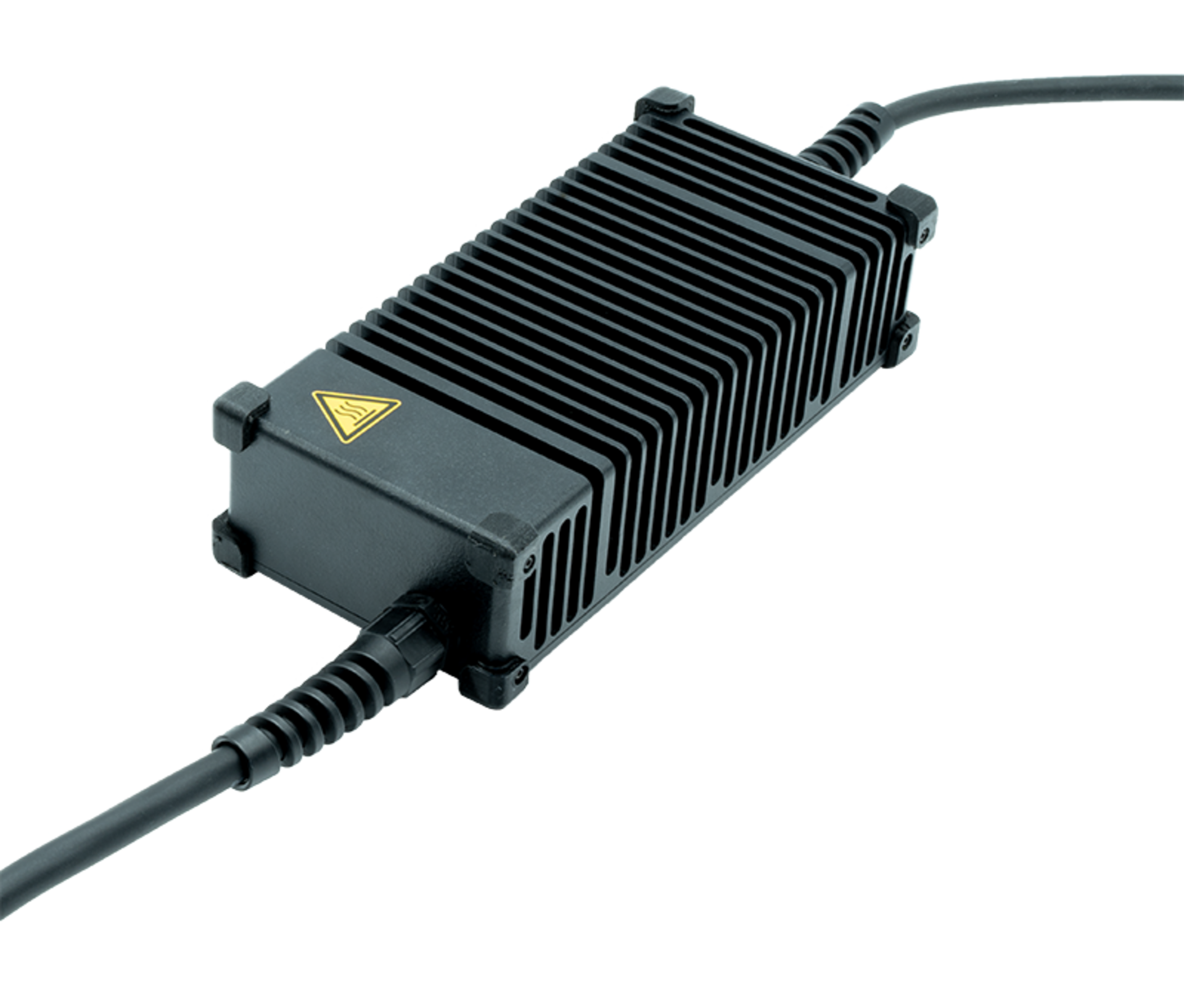

AC/DC power supply ACS90

90 W in protective class I

All over the world, mobile IT equipment such as tablets and laptops are supplied with commercially available desktop power supplies that withstand much worse environmental characteristics than the central IT equipment. With the AC adapter models ACS90 and ACS150, roda is opening a door to a new dimension in the rugged world. Water- and sand-protected, shockproof, drop- and EMC-protected, the AC adapter can also be used at the temperatures designated for IT equipment.
Despite its aluminium housing, EMC filter boards and reinforced cable sheath, the full-rugged ACS90 weighs 1.5 kg with compact dimensions of 204 x 49 x 90 mm.

Technical Specification

Input voltage

  • 100-240 VAC

Frequency

  • 50-60 Hz (100-240 VAC)
  • 400 Hz (110 VAC)

Input current

  • 1.60 A (115 VAC)
  • 0.80 A (230 VAC)

Output voltage

  • 19 VDC ± 5%

Output current

  • 4.74 A (19 VDC)

Output power

  • 90 W

Efficiency

  • ~ 88% (230 VAC)

Protection Class

  • I

Safety

  • Overvoltage proof
  • Overcurrent proof
  • Overload safe
  • Overheating protection
  • according EN62368-1

Interface (input)

  • Connector Schuko / BS1363 / NEMA
  • Cable length ca. 147 ± 5 cm

Interface (output)

  • Connector: 62IN-56T8-33S-622-RH
  • Cable length ca. 115 ± 5 cm

Compatibility

  • Rocky: RT9/RK9/RF9, RK10/RF10, RK12
  • Panther: DR10/DK10, DR13/DK13
  • Lizard®: RS11/RV11, RS13
  • Serval: RD15-UXGA, RD15-FHD, RD19-SXGA

Dimensions [W×H×D]

  • 204 x 49 x 90 mm (without cable fitting)

Weight

  • approx. 1.50 kg

Protection class (IP-Rating)

  • IP65

Environmental specification

  • Designed to meet MIL-STD-810G
  • EMI

  • Designed to meet MIL-STD-461G

TEMPEST

  • Optional: Zone 1
  • Optional: ​​​​​​​​​​​​​​SDIP 27 Level A
  • Optional: ​​​​​​​​​​​​​​SDIP 27 Level B
  • Optional: ​​​​​​​-60 dB filter
