Panther DR13

full-rugged customizable 8.4" tablet

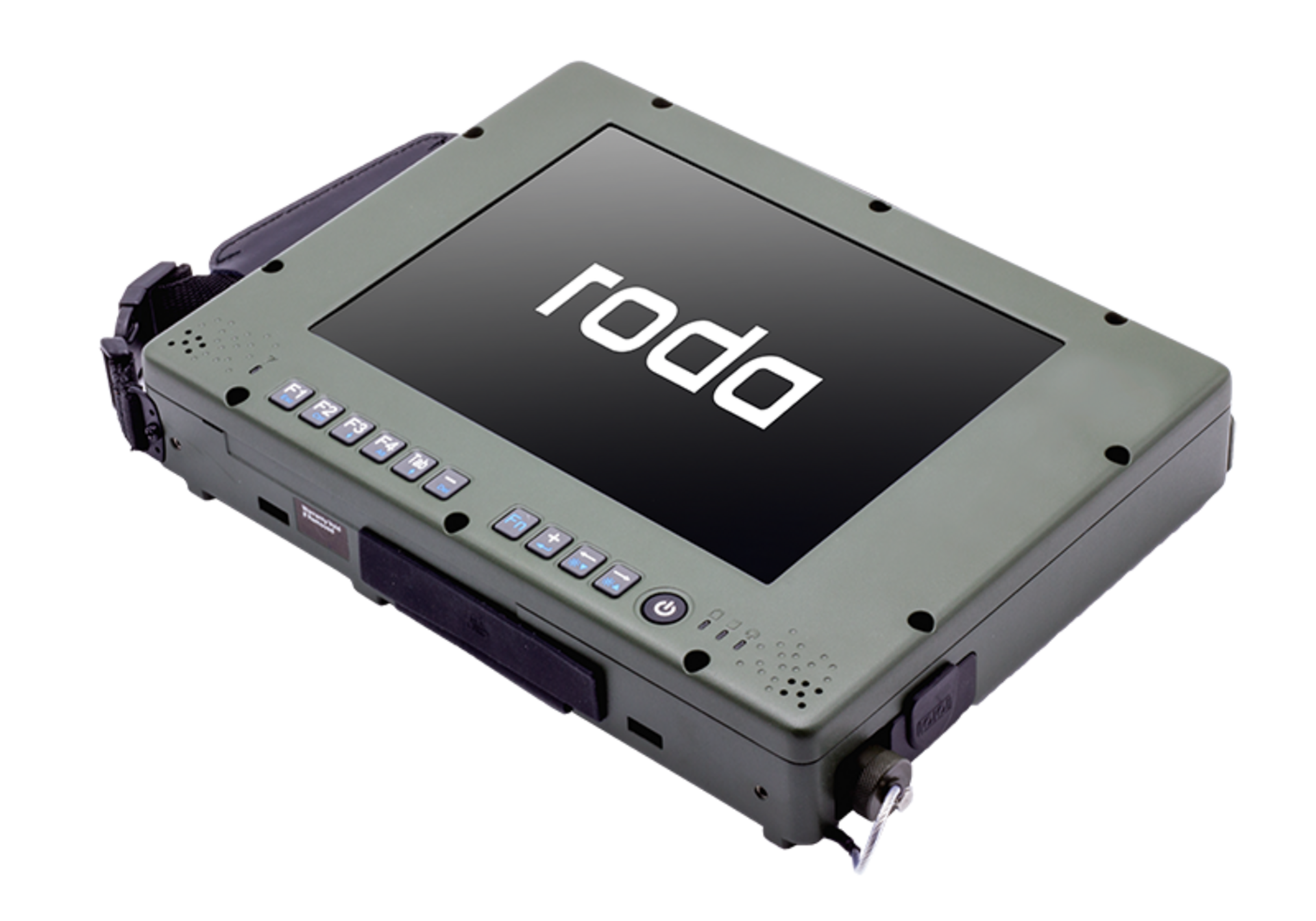

Panther DR13

rugged 8.4" tablet PC

The 8.4" tablet PC Panther DR13 is characterised by its extraordinary customisation options and enormous ruggedness. The variety of available modules and possible interfaces with industrial or military plugs is enormous, which is proven by countless installations in protected and armoured vehicles.

In addition, the Panther series offers the same IP65 protection concept and IT platform as the Rocky laptop, so you can rely on sophisticated technology. The open product architecture of the Panther also allows a modular combination with the roda displays, so that individual panel PCs can be configured from standard components. This is how the development time and expenditures for a panel PC with 10", 15", 19", or 21" are reduced to an affordable and acceptable scale.

Technical specifications

Display

  • LCD 8.4“ XGA (1024×768)
  • LED backlight
  • Sunlight readable

Touch

  • Resistive multi touch screen

CPU

  • Intel® 7th Gen. Core™ i-7600U processor, 4 MB cache, up to 3.90 GHz

Chipset

  • Intel® Kaby Lake U platform

Graphics

  • Intel® HD Graphics 620

Memory

  • DDR4 2133 MHz
  • Up to 32 GB (1x SO-DIMM slot)

Storage

  • Exchangeable 2.5” SATA III SSD

Camera

  • Optional: Webcam 1MP

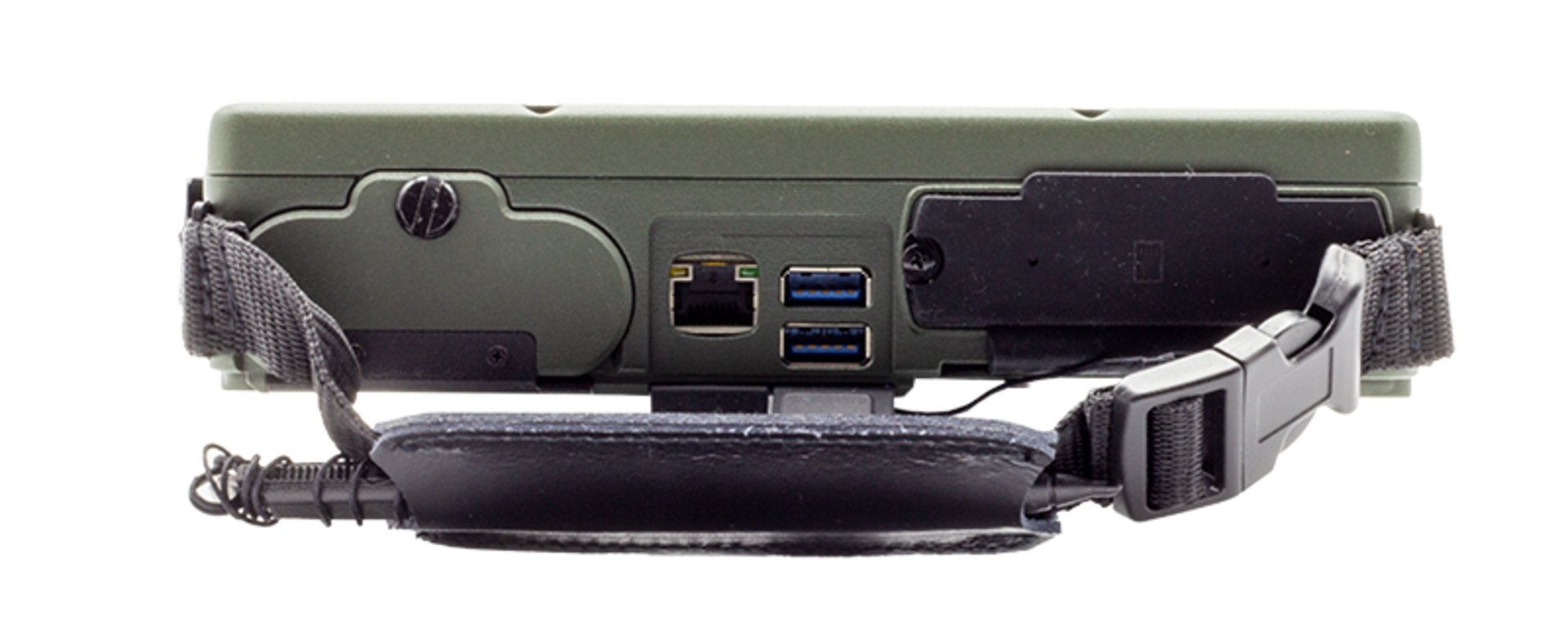

Interfaces

  • 2x USB3.1 (1x fast charge)
  • 1x GBit LAN (RJ45)
  • 1x COM (DB9)
  • 1x DC-In (2-Pin)
  • 1x ExpressCard/54
  • 1x SD card slot
  • 1x SIM card slot
  • 1x docking connector for DockLite DL
  • Optional:
    • 1x MIL DC-In
    • 1x DockLite DL port replicator

Connectivity [WLAN / BT / GPS]

  • Optional: Intel® Dual Band Wireless AC9260
    • WLAN 802.11 a/b/g/n/ac
    • Bluetooth 5.0
  • Optional: Ublox Neo-M8N GPS/GLONASS

Power supply

  • Li-ion battery, 10.8 V, 5800 mAh
  • AC-adaptor 90 W, 100-240 V, 50-60 Hz
  • Integrated vehicle adaptor 12-32 V with surge protection

Security

  • TPM 2.0

Operating System

  • Windows 10 Pro

Dimensions [W×H×D]

  • 250 x 190 x 45.2 mm

Weight

  • 2.30 kg

Protection class

  • IP65

Certification

  • MIL-STD-810G
  • MIL-STD-461G Ground Navy
  • Optional: MIL-STD-461G Ground Army

TEMPEST

  • Optional: SDIP 27 Level B (ER)
