Serval Series

Rugged display solutions

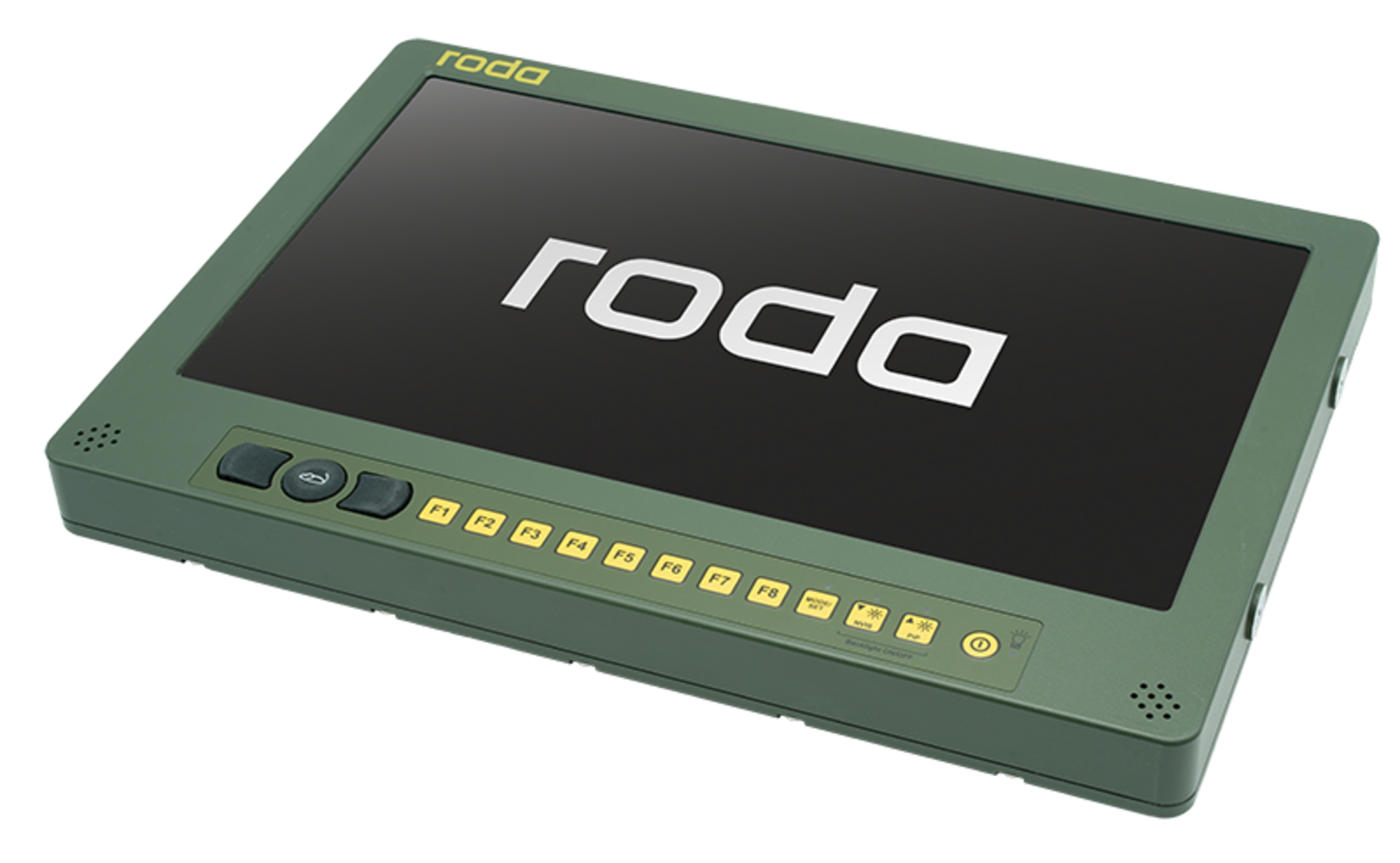

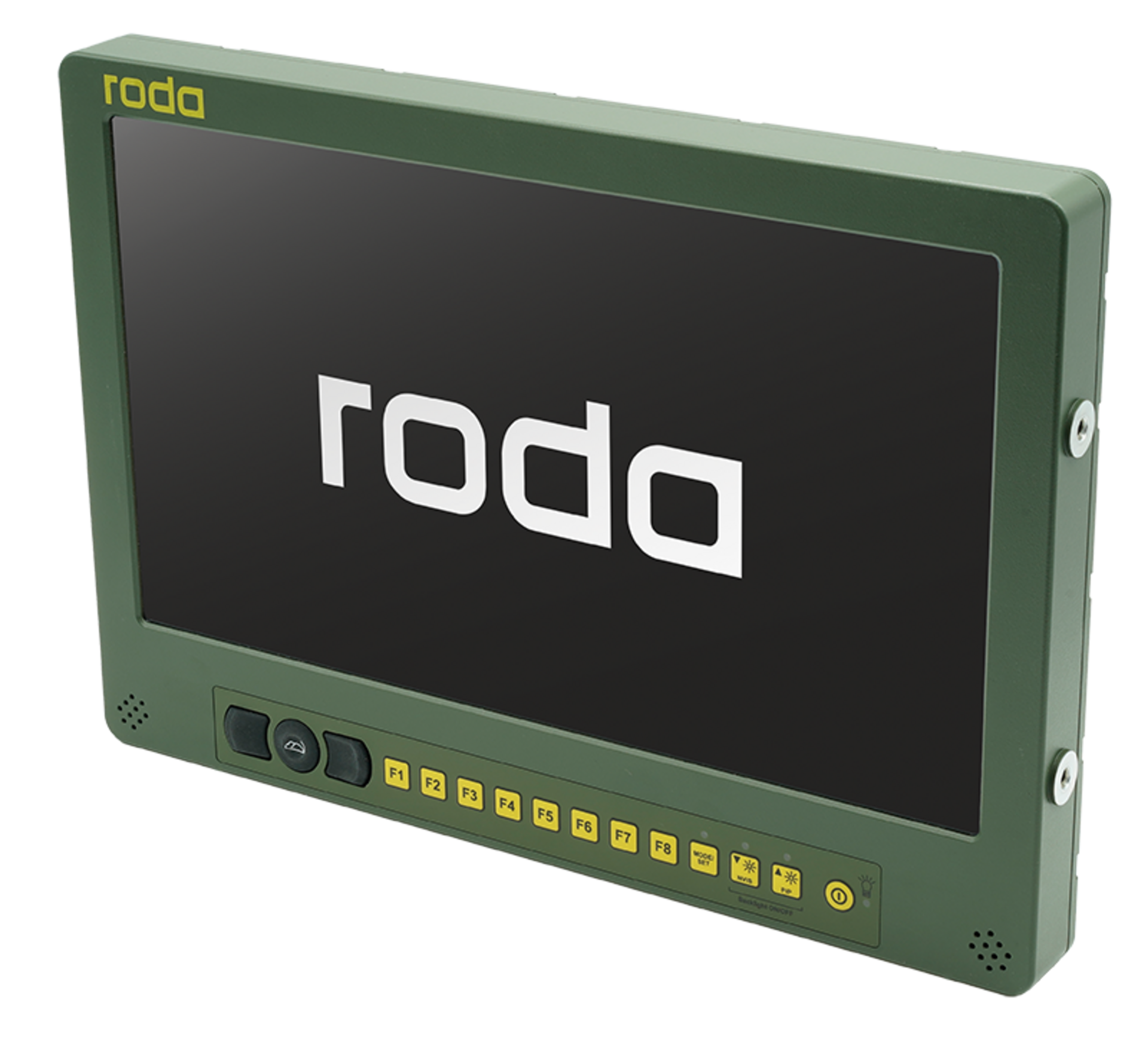

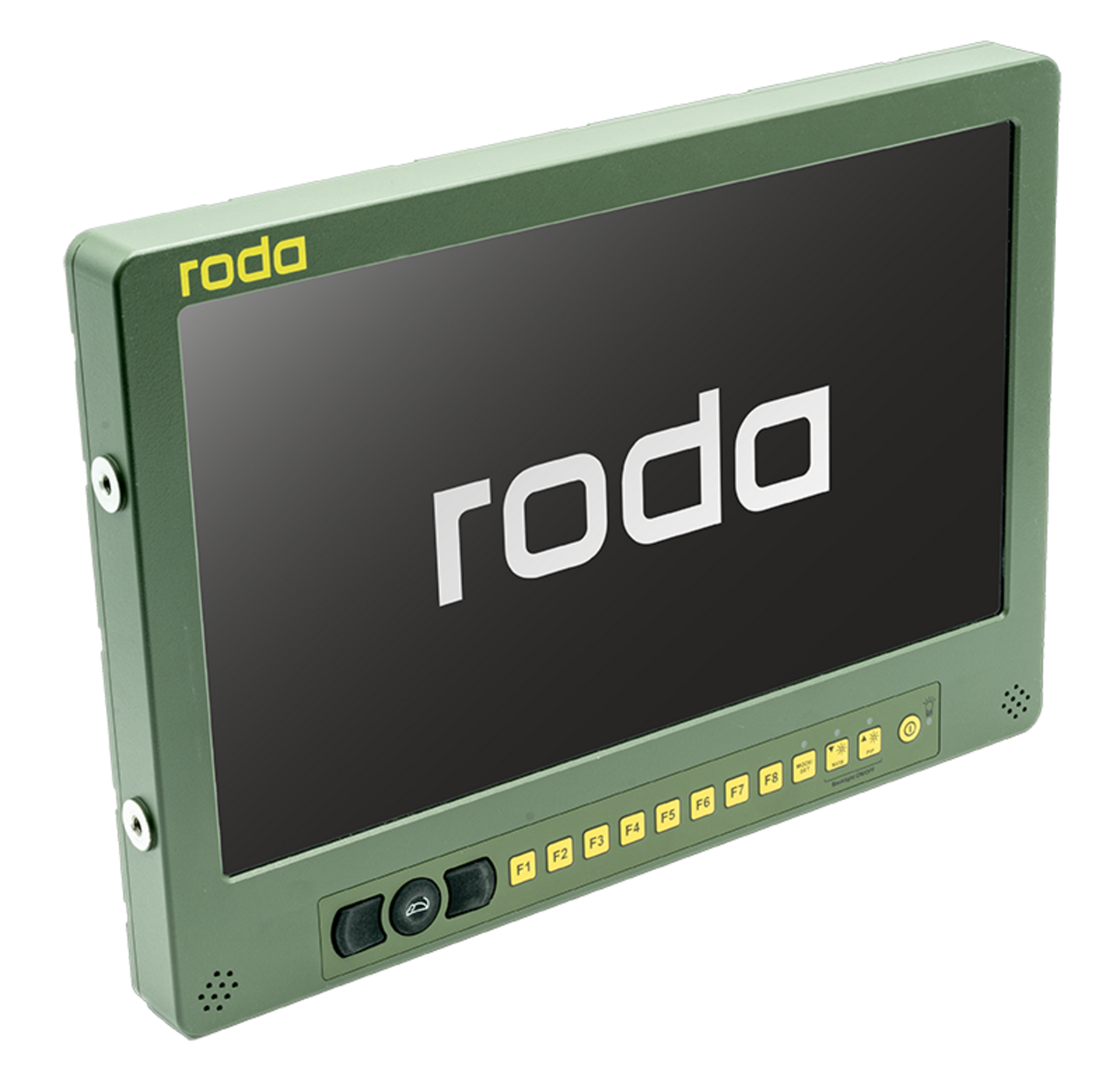

Serval RD15-FHD-02

High-resolution 15.6" display

All rugged roda RD series displays are MIL-STD-810, MIL-STD-461, and ≥ IP54 certified for use under almost all environmental conditions. With its remote on/off function button/interface and metal housing, the RD series is particularly suitable when combined with a roda computer as well as for installation in protected and armoured vehicles and cabins that, due to space constraints, require a decentralised installation of computer and display. The system can be started at the touch of a button on the display. The perfect conditions for efficient operation!

The compact 15.6“ Panel display RD15-FHD is available in different versions and can also be customised with military connectors. The displays with touch screen, high brightness, picture-in-picture, as well as blackout light and NVIS functionality are frequently used under tough conditions. As a standard model, they can operate under a temperature range of -31°C to +60°C.

Technical specifications

Display

  • LCD 15.6“ FHD (1920x1080)
    LED backlight

Format

  • 16:9

Touch

  • resistive touch screen

Contrast

  • 750:1

Brightness

  • typ. 800 cd/m²

Color representation

  • up to 16.7 million (8 bit / colour)

Viewing angle

  • vertical: ±160°
  • horizontal: ±160°

Reaction time

  • 30 ms (Ton+Toff)

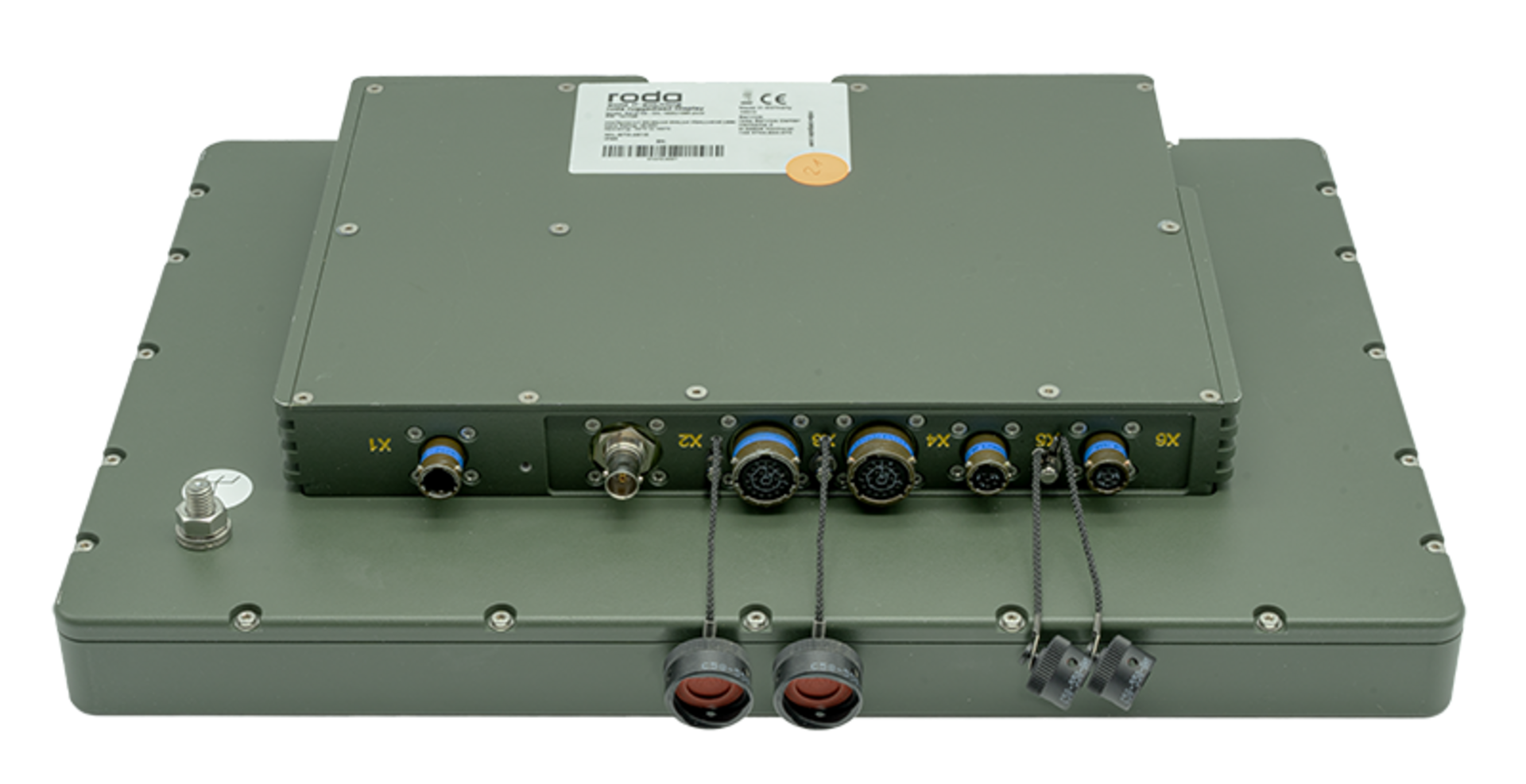

Interfaces

  • 2x USB2.0
    1x VGA
    1x DVI (with roda display remote)
    1x MIL DC-In (with integrated camouflage function)
  • Optional:
    • 1x USB2.0 (front side)
    • 1x SDI (BNC 75 Ohm) video input
    • All connectors also available MIL version!

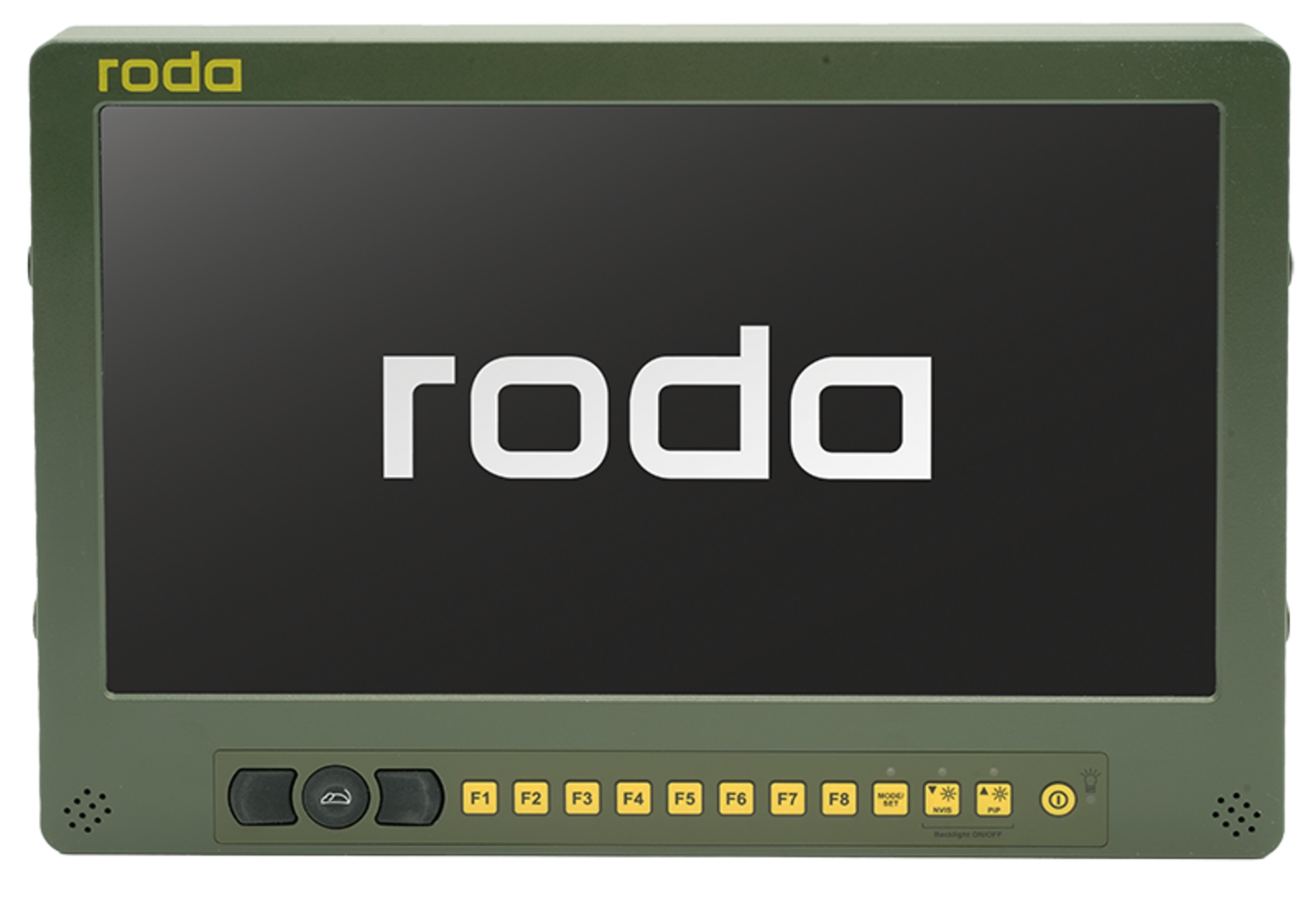

Keys

  • 8x programmable function keys

Functions

  • Camouflage mode
    NVIS compliant
  • Optional:
    • PiP - picture in picture

Power supply

  • 18-32 VDC, nominal 24 VDC
  • Power consumption< 45 W
  • Transient protection according to VG96916 T5 without intermittent operation

Certification

  • IP65
  • MIL-STD-810F
  • MIL-STD-461G

Colour

  • bronce green (RAL 6031 HR)
  • deep black (RAL 9005 HR)

Dimensions

  • 393 x 270 x 66 mm

Weight

  • approx. 4.80 kg
