Panther Tablet Series

rugged customizable tablets from 7" to 12"

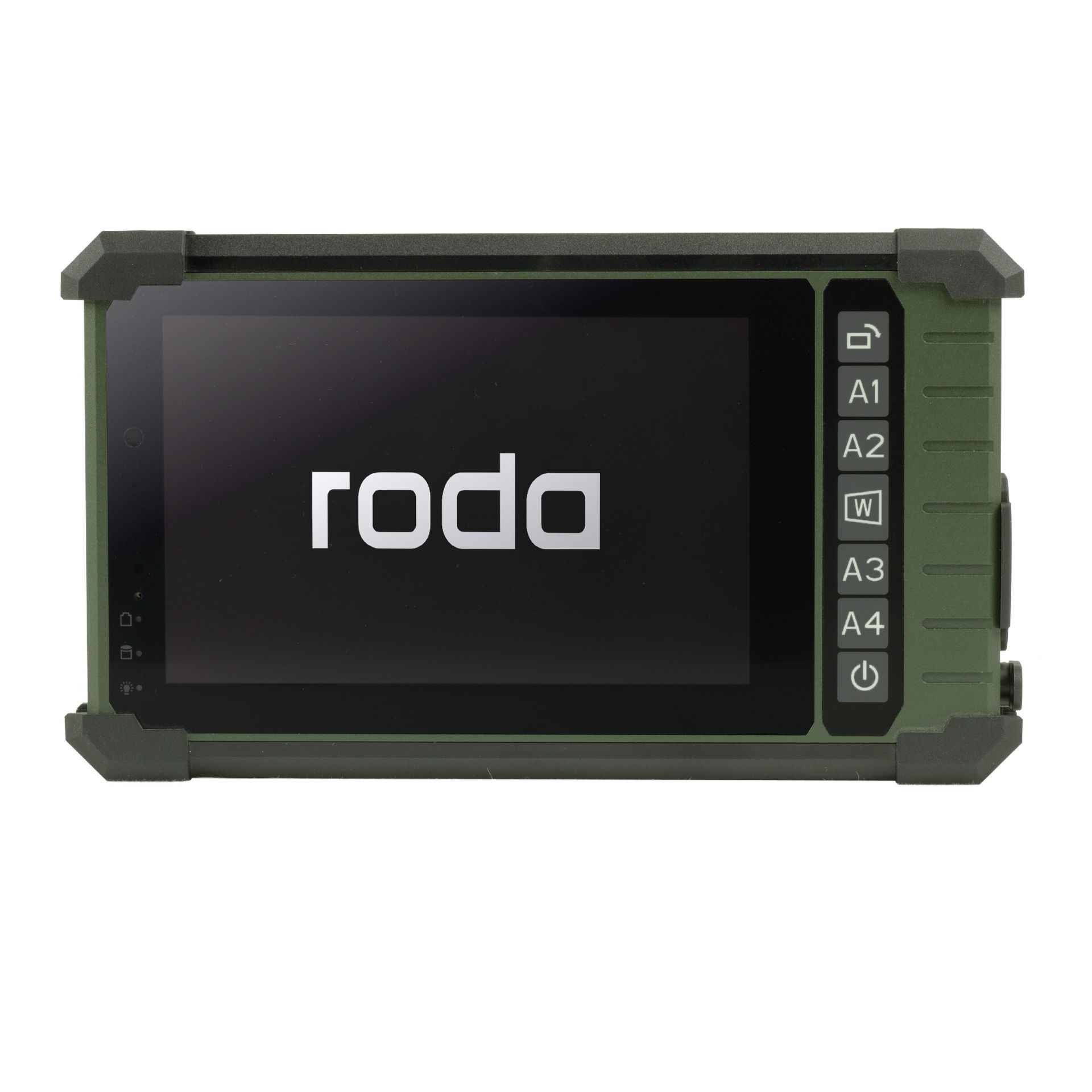

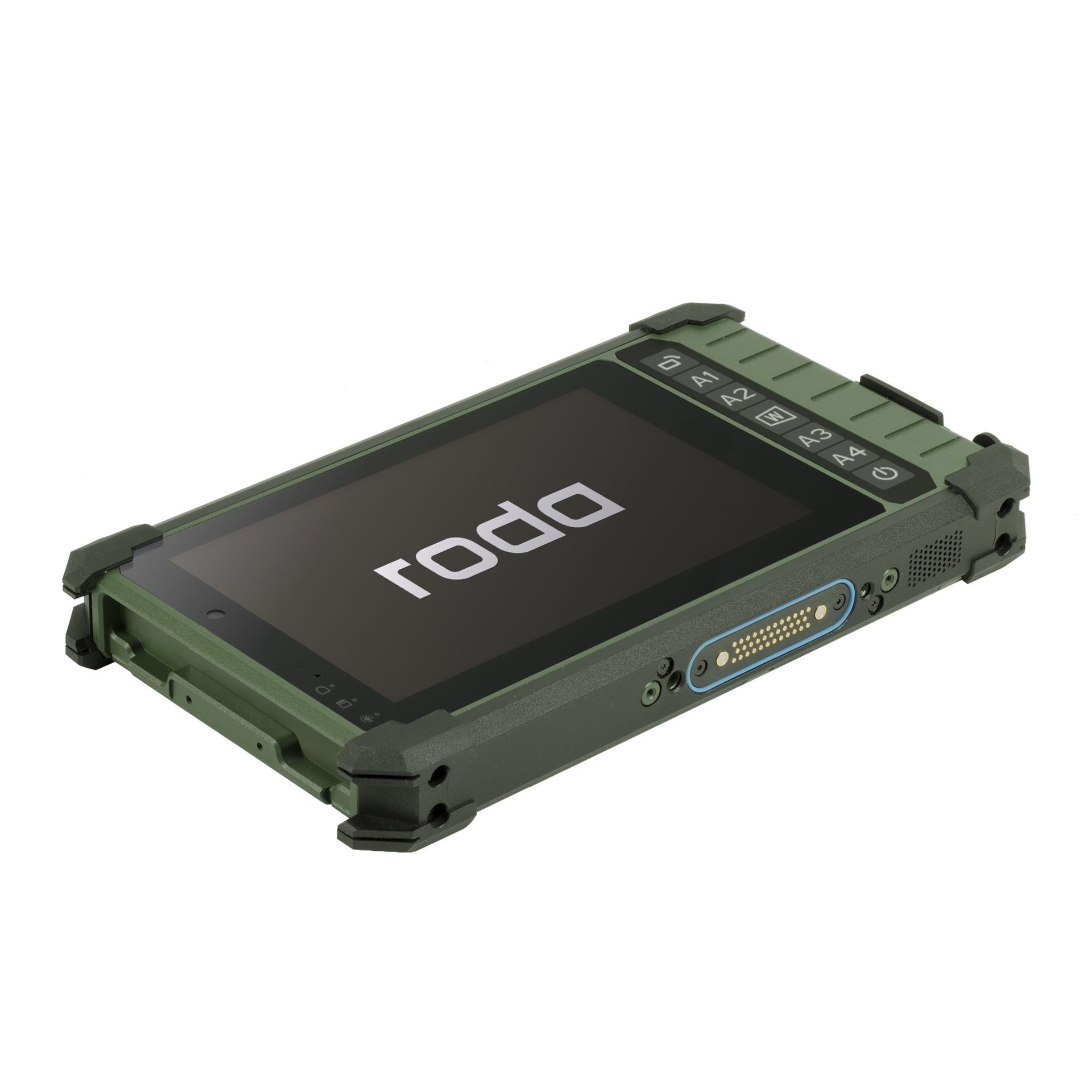

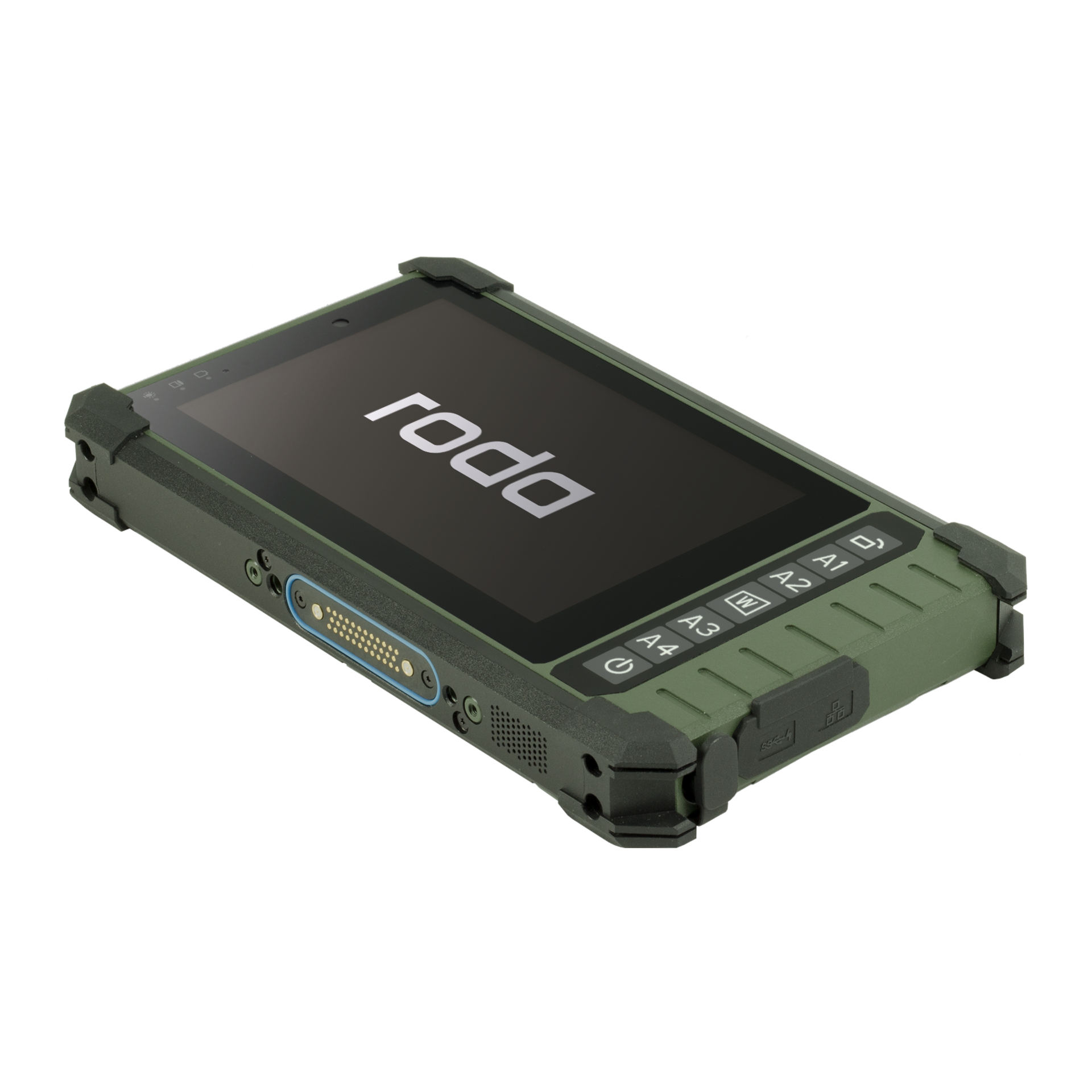

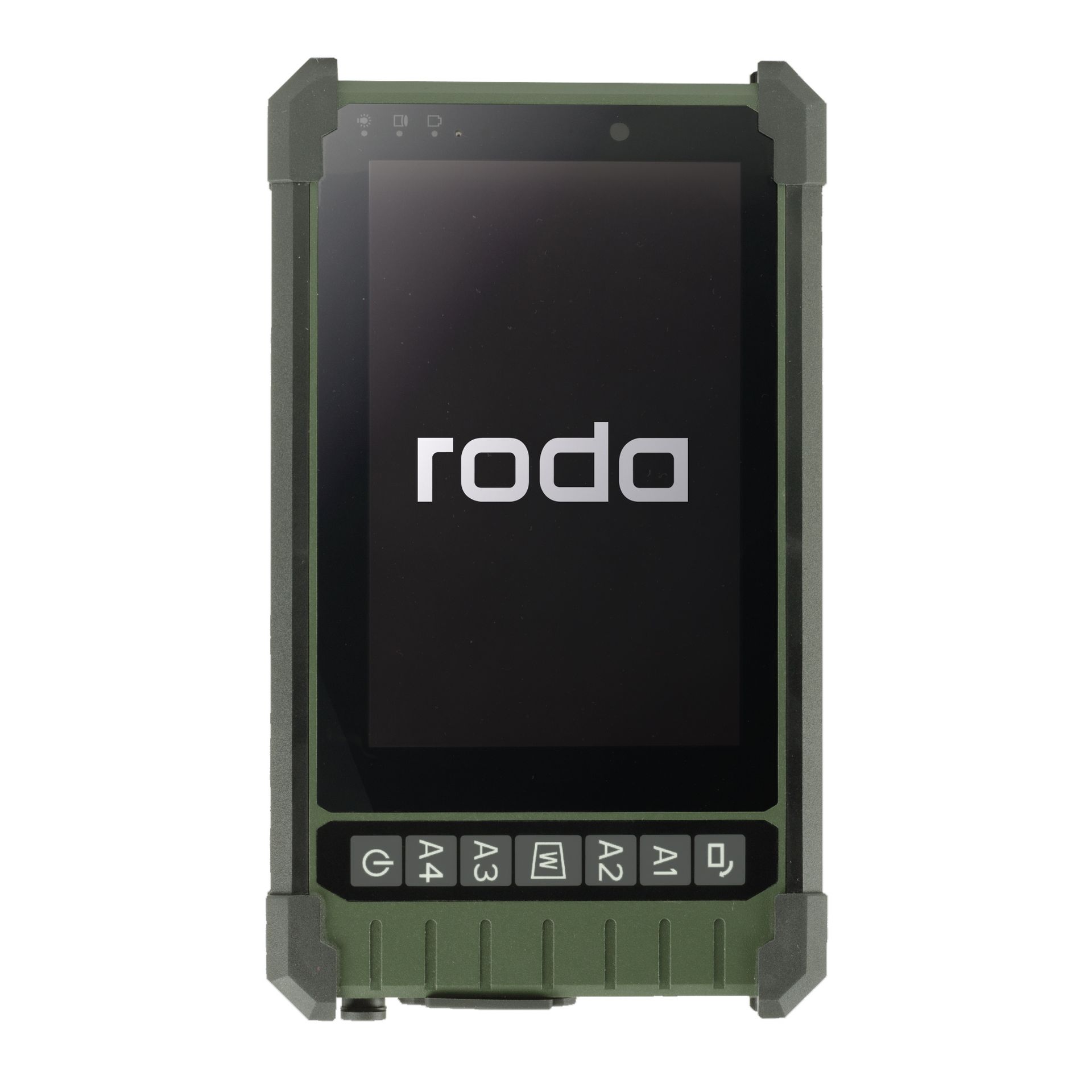

Panther DE13

up to 1000cd bright 7" display

The 7" Panther DE13 closes the gap between the tried-and-tested 5" and 10" Panther models; the market eagerly awaits this innovation to go "the last mile". Following the trend of lightweight tablet PCs, the DE13 innovatively combines the great customisability of the Panther series with the slim design of the Lizard® series with a shaped aluminium housing. The powerful Intel® Core™ i7 Processor (Skylake) with a brilliant display of up to 1000 nits brings enormous performance. The device is IP65 and MIL-STD810 certified to withstand the harshest environmental conditions. Similar to the Lizard® series, this model offers customers the opportunity, despite its slim design, to customise the tablet with military connectors.

Technical specifications

Display

  • 7“ WXGA (1280 x 800) LCD
  • sunlight readable typ. 800 cd/m²
  • resistive multi touch screen

Chipset

  • Intel® Kaby Lake-Y platform

CPU

  • Intel® 7th Gen. Intel® Core™i7-7Y75 (4 MB Cache, up to 3.6 GHz)

Graphics

  • Intel® HD Graphics 615

Memory

  • 16 GB LPDDR3, 1066 MHz

Storage

  • M.2 2280 SSD 128 - 256 GB I-Temp

Audio

  • HD Audio and mono speakers
  • embedded digital mic

Button

  • 1st layer: power, Win, Fn lock, input lock, 3x application key
  • 2nd layer: Esc, F2, Enter, →, ↓
  • backlight

Power Supply

  • 12~32 VDC with BVA & surge protector
  • Li-ion battery 7.4V, 4400 mAh
  • AC-adapter 90 W, 19 VDC, 3.4 A, 100~240 VAC , 50/60 Hz

Sensors

  • light sensor

Interfaces

  • 1x Amphenol USB3.1 Type-C
  • 1x DC-In (3-pin)
  • 1x DockLite connector
  • 2x ext. antenna signal

Security

  • Kensington cable lock slot
  • Password security (supervisor password, user password)
  • TPM2.0 module

Certification

  • CE/FCC, WEEE, REACH, WHLK, RoHS2.0,
  • IP67
  • MIL-STD-810G
  • MIL-STD-461G

OS

  • Windows 10

Case

  • milled anti-corrosive aluminum

Colour

  • military green (NATO olive / RAL6031HR)
  • black

Dimension

  • 250 x 144 x 30.5 mm (L x D x H)

Weight

  • 1.15 kg incl. battery (ca. 180 g)

Options

  • WiFi module (Intel® Dual Band-Wireless-AC 8265)
    • WLAN 802.11 a/b/g/n/ac
    • Bluetooth 2.1+EDR, 3.0+HS, 4.0, 4.1, BLE, 4.2
  • GPS module u-blox M8N (GPS/GLONASS)
  • front camera 0.3M Pixels
  • invisible mode
  • wide temperature -30°C operating
  • additional sensors: AMG sensor module
    • accelerometer, magnetometer, gyroscope
  • optional MIL Fischer I/O-ports: (max. 2 MIL-interfaces possible)
    • 1x USB 2.0
    • 1x Displayport
    • 1x GBit LAN
    • 1x audio
    • 1x COM (1x RS232/1x RS422)
    • 1x sealed headset (headphone + mic)
  • MIL-STD-461G certification
    • Ground Army (Navy mobile & Army)
