Serval Series

Rugged display solutions

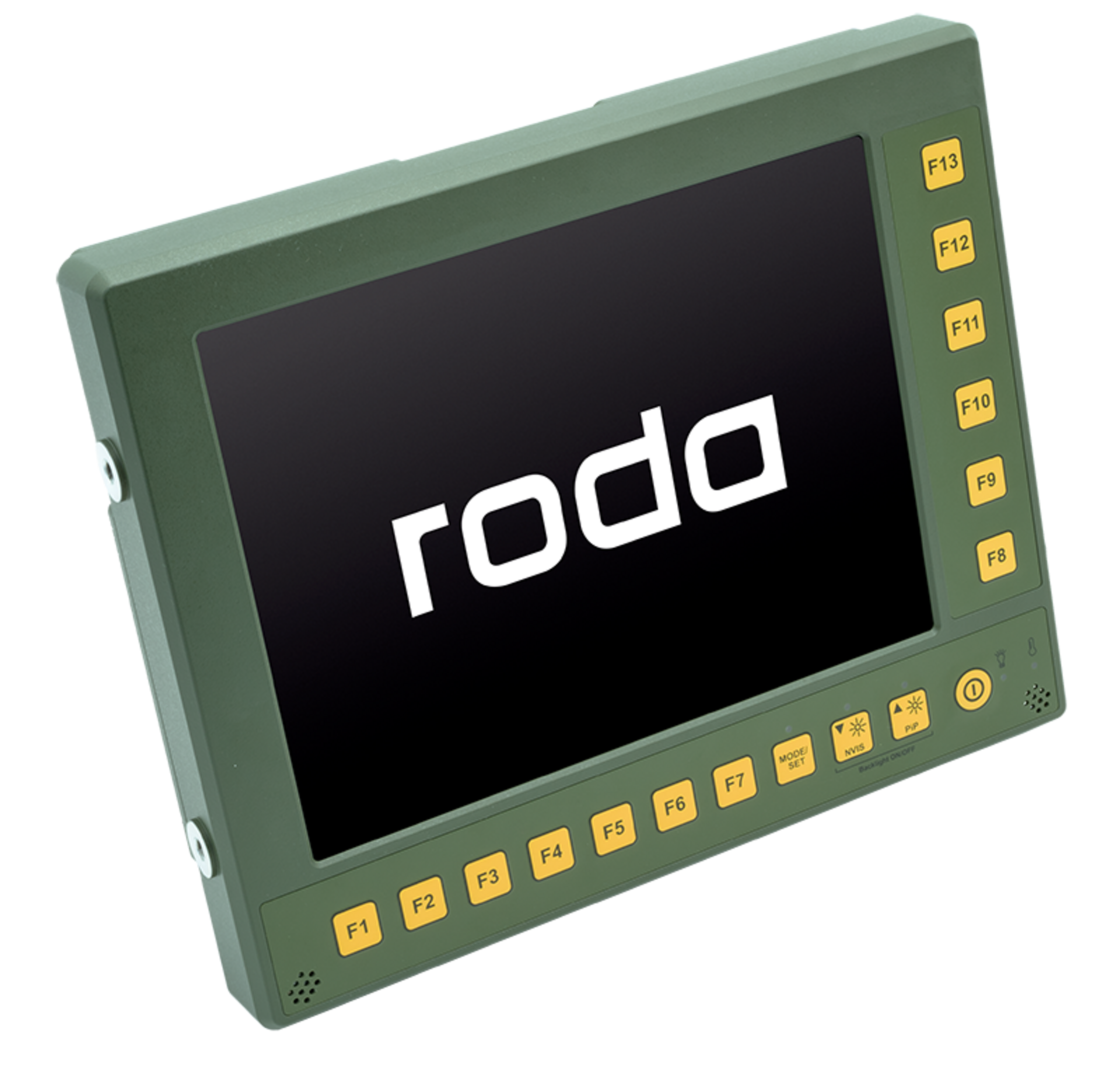

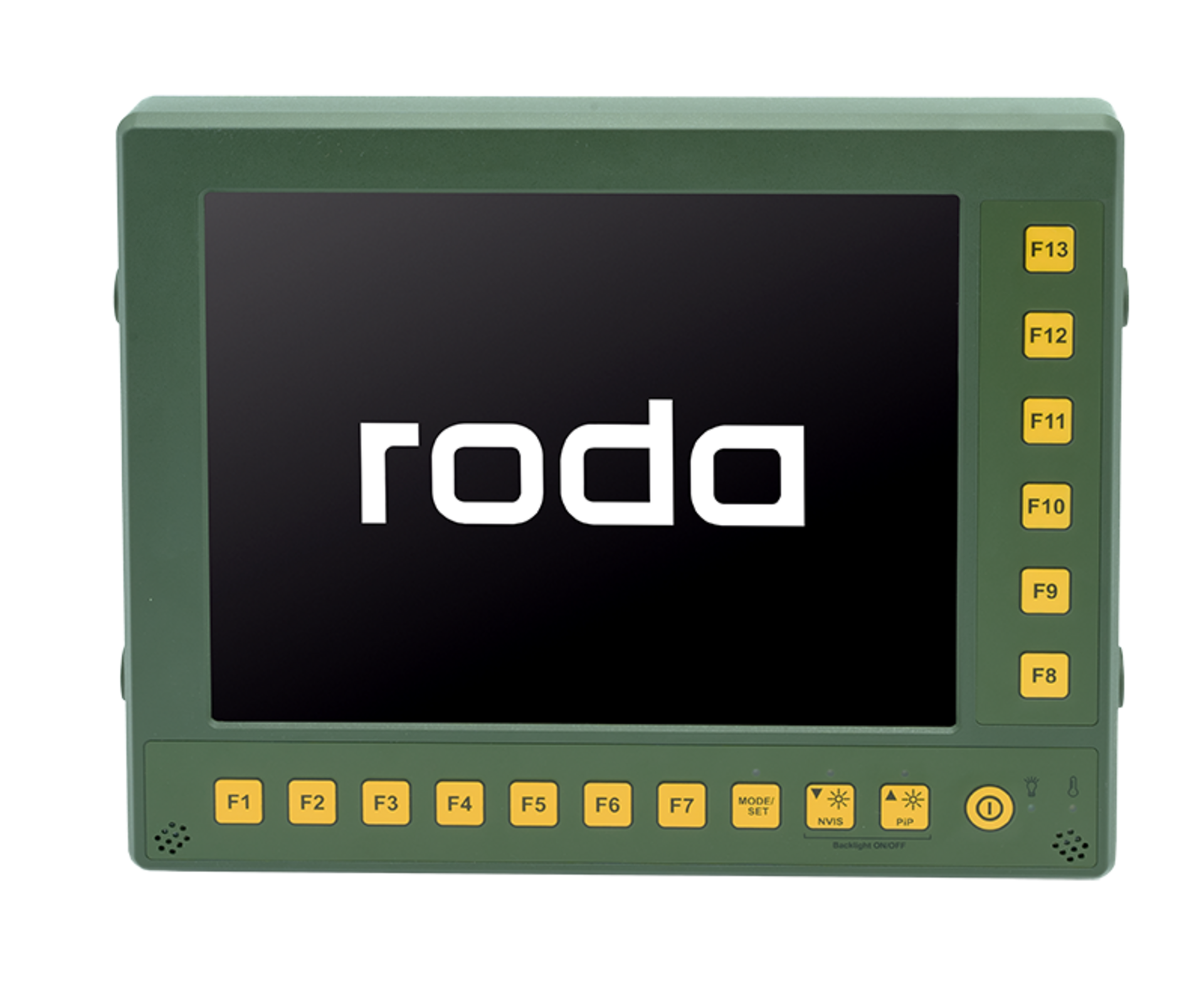

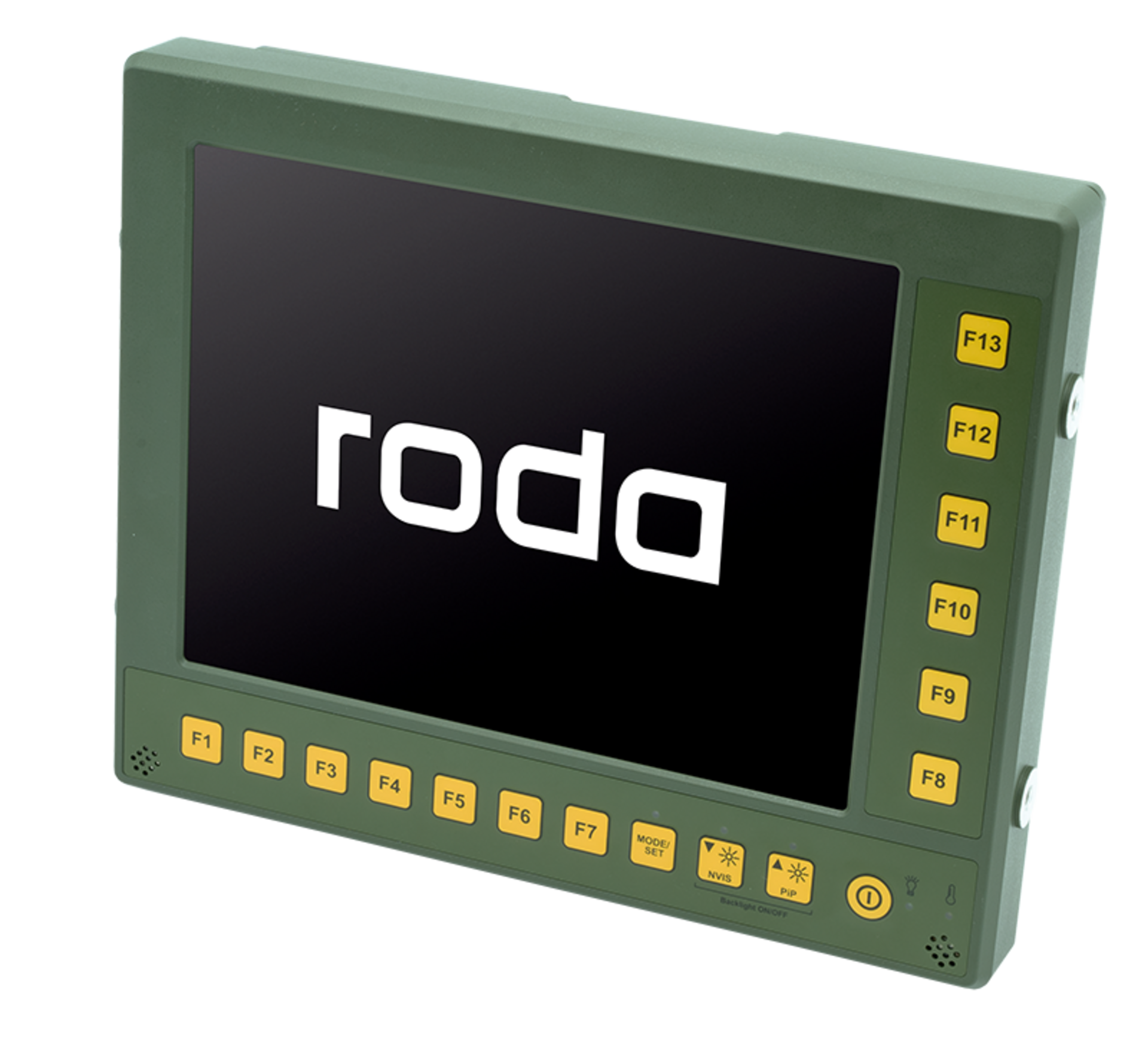

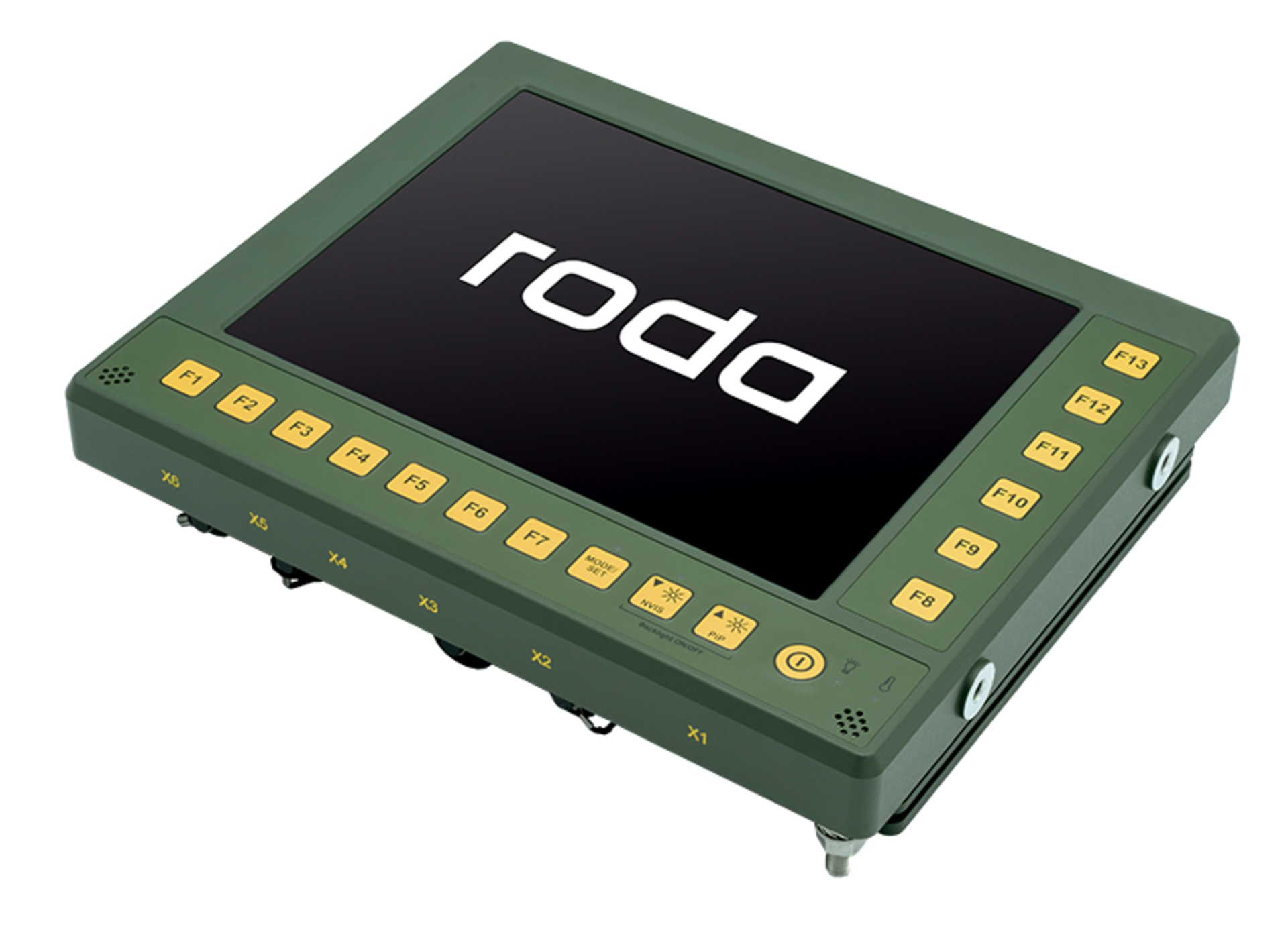

Serval RD10-XGA-03

rugged 10.4" display

All rugged roda RD series displays are MIL-STD810, MIL-STD461, and ≥ IP54 certified for use under almost all environmental conditions. As a standard model, they can operate under a temperature range of -20°C to +55°C. With its remote on/off function button/interface and metal housing, the RD series is particularly suitable when combined with a roda computer as well as for installation in protected and armoured vehicles and cabins that, due to space constraints, require a decentralised installation of computer and display. The system can be started at the touch of a button on the display. The perfect conditions for efficient operation!

The compact 10" Panel display RD10 is available in different versions and can also be customised with military connectors. The displays with and without touch screen, high brightness, picture-in-picture, as well as blackout light and NVIS functionality are frequently used under tough conditions.

Technical specifications


  • 10.4" TFT colour display (26.4 cm visible area)
  • integrated touchscreen, resistive


  • XGA 1024 x 768 Pixel

Aspect ratio

  • 4:3

Colour display

  • Representation of up to 16.7 million colours or 256 grayscales

Viewing angle

  • vertical: 160° horizontal: 160°


  • 900:1


  • type. 600 cd/m²

Reaction time

  • 25 ms (Ton+Toff)

Power supply

  • 18 - 32 V DC, nominal 24 V DC,
  • Transient protection in accordance with VG96916 T5 without intermittent operation

Power consumption

  • < 30 W


  • IP65
  • MIL-STD 810F
  • MIL-STD 461F


  • hardened aluminium housing


  • military-green
  • other colours on request


  • 293 mm x 235 mm x 62 mm


  • approx. 3 kg


  • 13 programmable function buttons
  • Brightness of display and buttons can be dimmed separately
  • Turn-on/switch-off delay (ON / OFF <- press for at least 5 sec.)
  • 2 speakers
  • Backlight dimmable down to 10%
  • NVIS-compatible
  • Blackout light integrated in DC in connection
  • Fast-shutdown of the backlight
  • OSD menu in the front panel
  • Grounding screw
  • PiP (picture-in-picture) function
    • Simultaneous processing of 2 signal sources

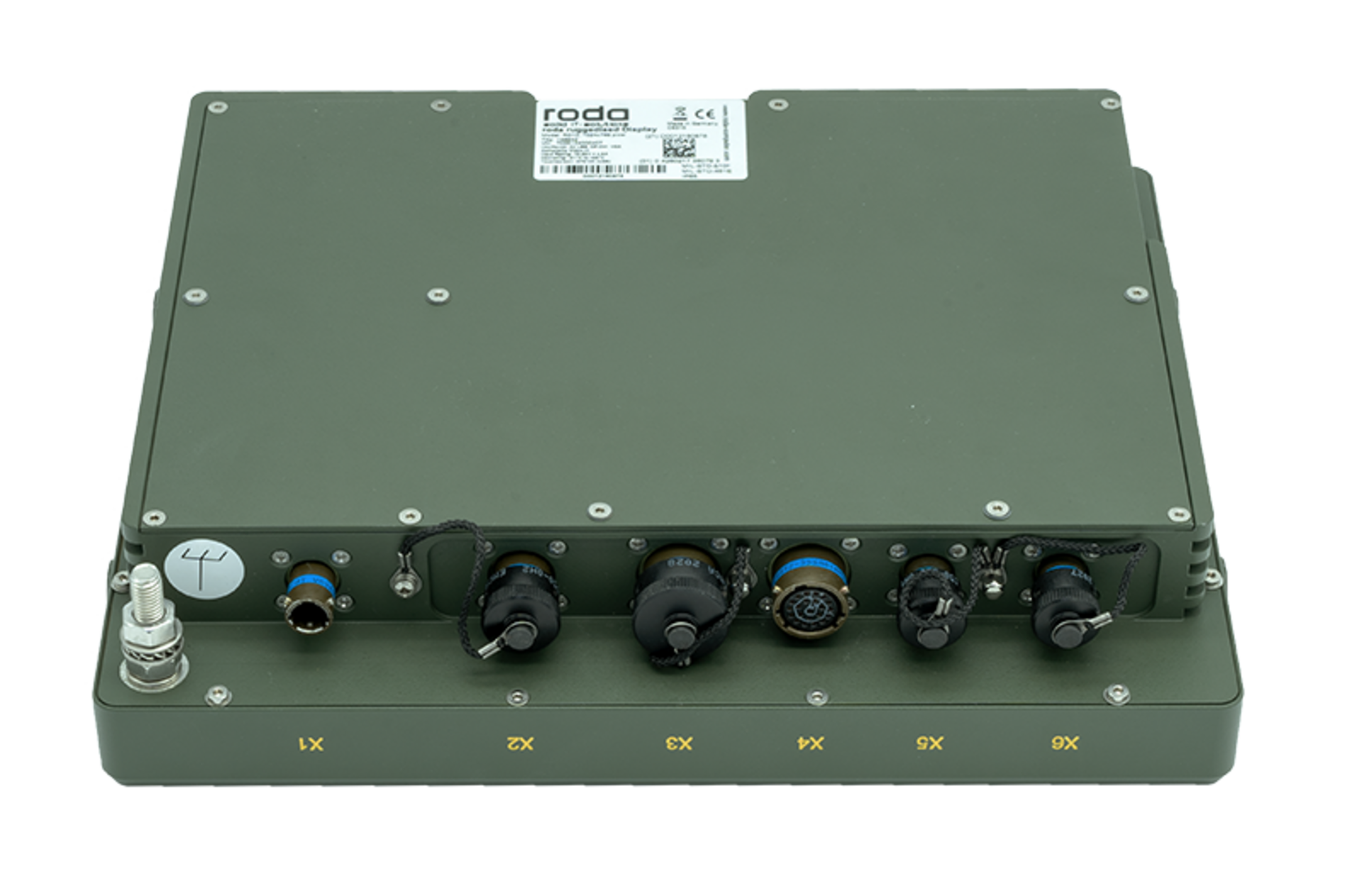

  • 1x MIL DC-In (integrated invisible mode)
  • 1x MIL SDI Video-In (for PiP function)
  • 2x MIL USB 2.0
  • 1x MIL DP-DVI / combo
  • 1x MIL VGA / combo (optional / trade-off with DVI Combo)
