DC/AC-Inverter

Rugged Power Supply

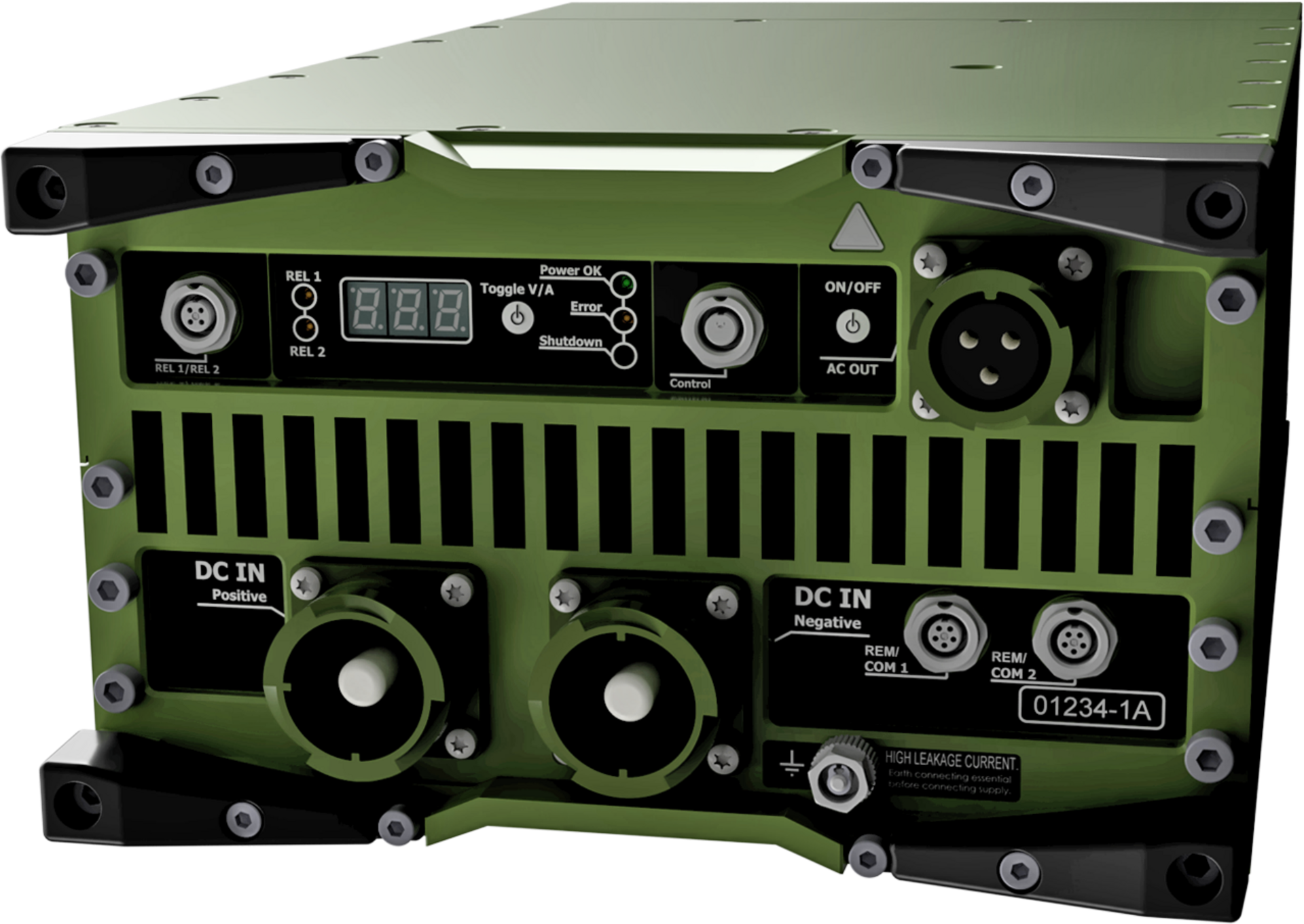

PowerPac 2000 DC/AC

sine wave inverter 2000 W

The robust and scalable PowerPac 2000 DC/AC inverter with a (single) power up to 2000 watts offers a very high efficiency and can be operated independently or mounted in a 19-inch rack system. The RS-485/CAN bus can be used for control, monitoring and setup. Detailed status and statistics can be found. The bus is available at the signal terminals and is used to connect multiple units in a redundant or parallel system. The signal connections also provide alarm relay outputs. The PowerPac 2000 DC/AC can be configured by software according to customer specifications. The Sinus inverter is protected against overvoltage, overcurrent, short circuit, reverse polarity reversal polarity and typical environmental influences of the defense industry.

Technical specifications

Input voltage

  • 16-34 VDC

Input current

  • ≤ 115 A @ 20 VDC
  • ≤ 68 A @ 34 VDC

Output voltage

  • 200-240 VAC / 50 Hz
  • 100-120 VAC / 60 Hz
  • Standard: 230 VAC / 50 Hz

Frequency

  • 50/60 Hz ±0.1 Hz



Output power

  • 2000 W: 20-34 VDC
  • 1800 W: 18-34 VDC
  • 1600 W: 16-34 VDC

Output current

  • 9 A @ 120 VAC
  • 9 A @ 230 VAC

Efficiency

  • ≥ 88 % @ 20 VDC
  • ≥ 90 % @ 34 VDC

Overload

  • 105-115%, 120 sec
  • 115-150%, 10 s
  • shut down, re-power to recover

Short circuit current

  • ≤ selected current limit +70 %
  • shut down, re-power to recover

Security

  • CE

Interfaces (Input)

  • Connector (negative): Allied Electronics Corporation MG 02R 20-2P-SQF 36 126 LT-003E-RT. Bayonet
  • Connector (positive): Allied Electronics Corporation MG 02R 20-2P-SQF 36 123 LT-00
  • S3E-RT. Bayonet

Interface (Output)

  • Connector: 97B-3102E-16-10S or equivalent. Bayonet

Dimensions[WxHxD]

  • 220 x 132 x 420 mm

Weight

  • 16 kg

Environmental specification

  • IP65
  • MIL-STD-810G
  • RoHS

Temperature range [operating]

  • -40°C to+60°C

EMI

  • Designed to meet MIL-STD-461F: CE101, CE102, RE101, RE102, RS103, CS101, CS114, CS115 and CS116
  • Electrical systems in vehicles acc. to MIL-STD-1275E.
  • Electrostatic discharge acc. to EN 61000-4-2 for ESD
