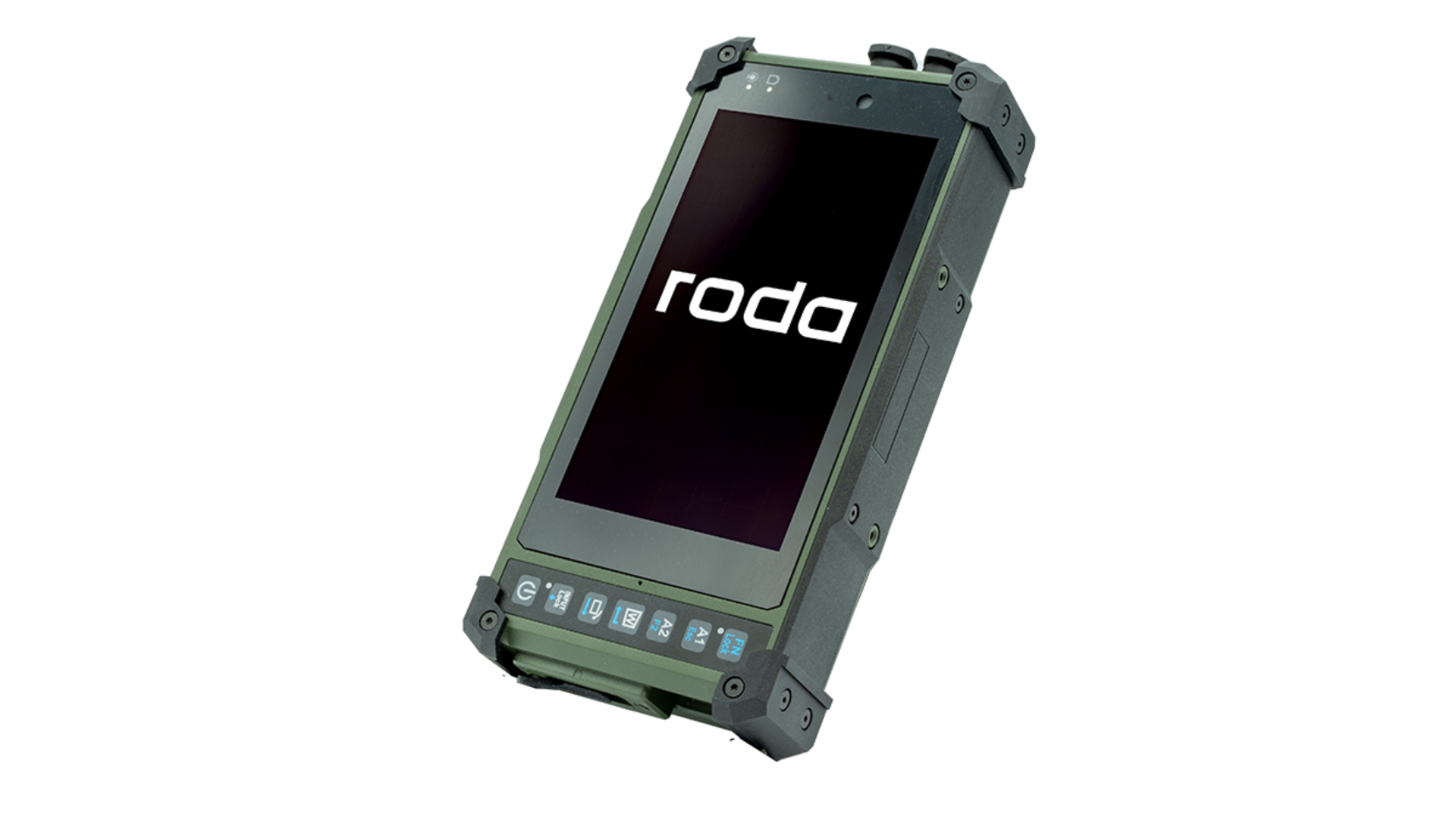

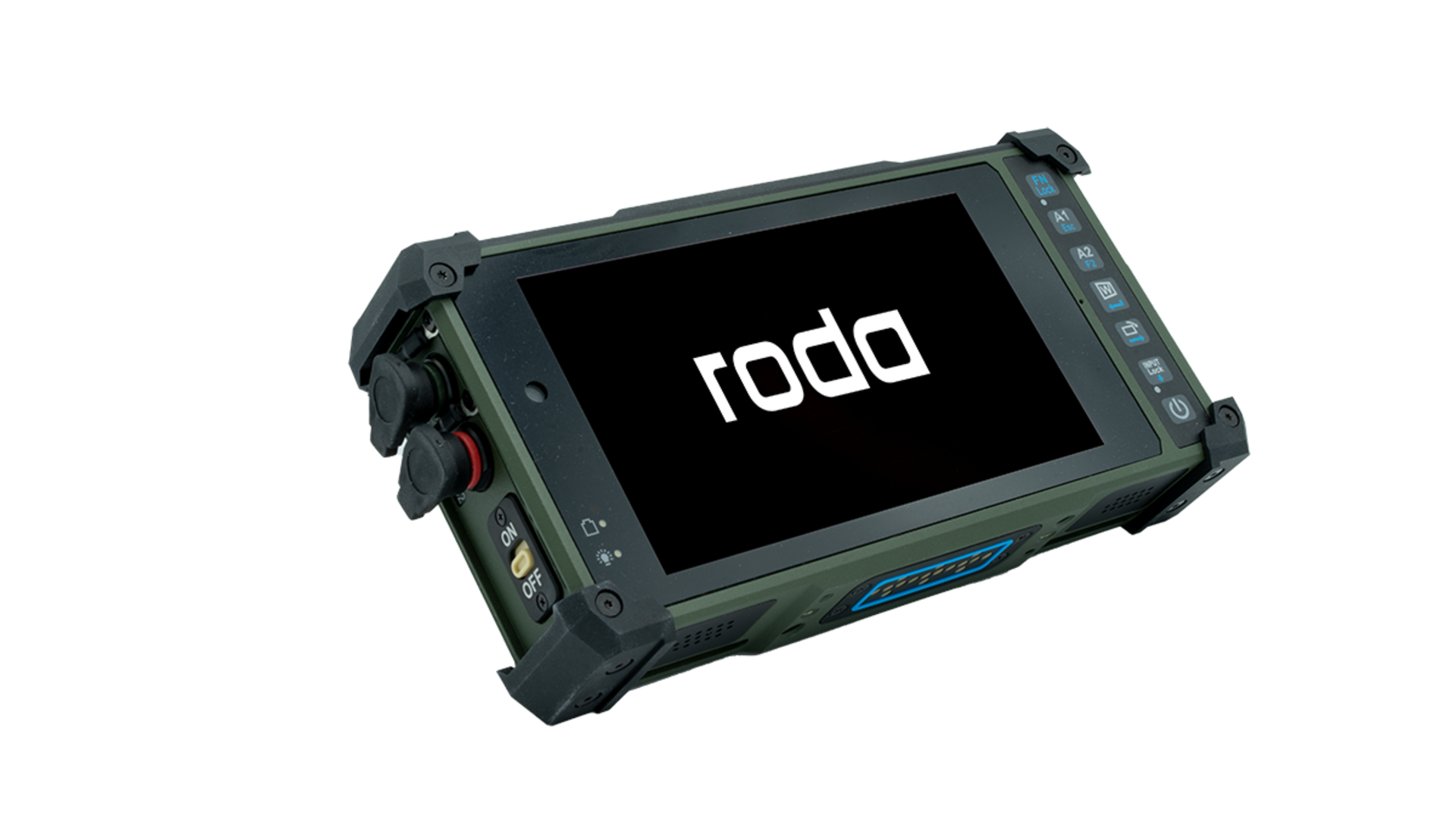

Panther DH8

full-rugged 5.7" handheld

The fully-rugged Panther DH8 is roda‘s new Intel® Atom based handheld and also the lightest model in the product range with 890 g. As one of the few devices in the field of fully-rugged handhelds, the 5.7“ pad offers a large number of possible interfaces with military connectors, such as Fischer connectors. In addition, to MIL-STD-810H, the IP65 certified device also inherently complies with MIL-STD-461G according to Ground Army.

Technische Spezifikation

Display

  • LCD 5.7“ HD (720 x 1280)
  • LED backlight
  • Sunlight readable

Touch

  • resistive touch screen

CPU

  • Intel® Atom™ x6211E processor, 1.5 MB cache, up to 3.00 GHz

Chipset

  • Intel® Elkhart Lake

Memory

  • DDR4
  • up to 32 GB (1x SO-DIMM slot)

Storage

  • up to 1 TB M.2 SATA3 SSD

Features

  • Optional: Invisible mode (trade-off with night vision)
  • Optional: Night Vision (trade-off invisible mode)

Interfaces

  • 1x USB3.1 Gen. 2 Type-C

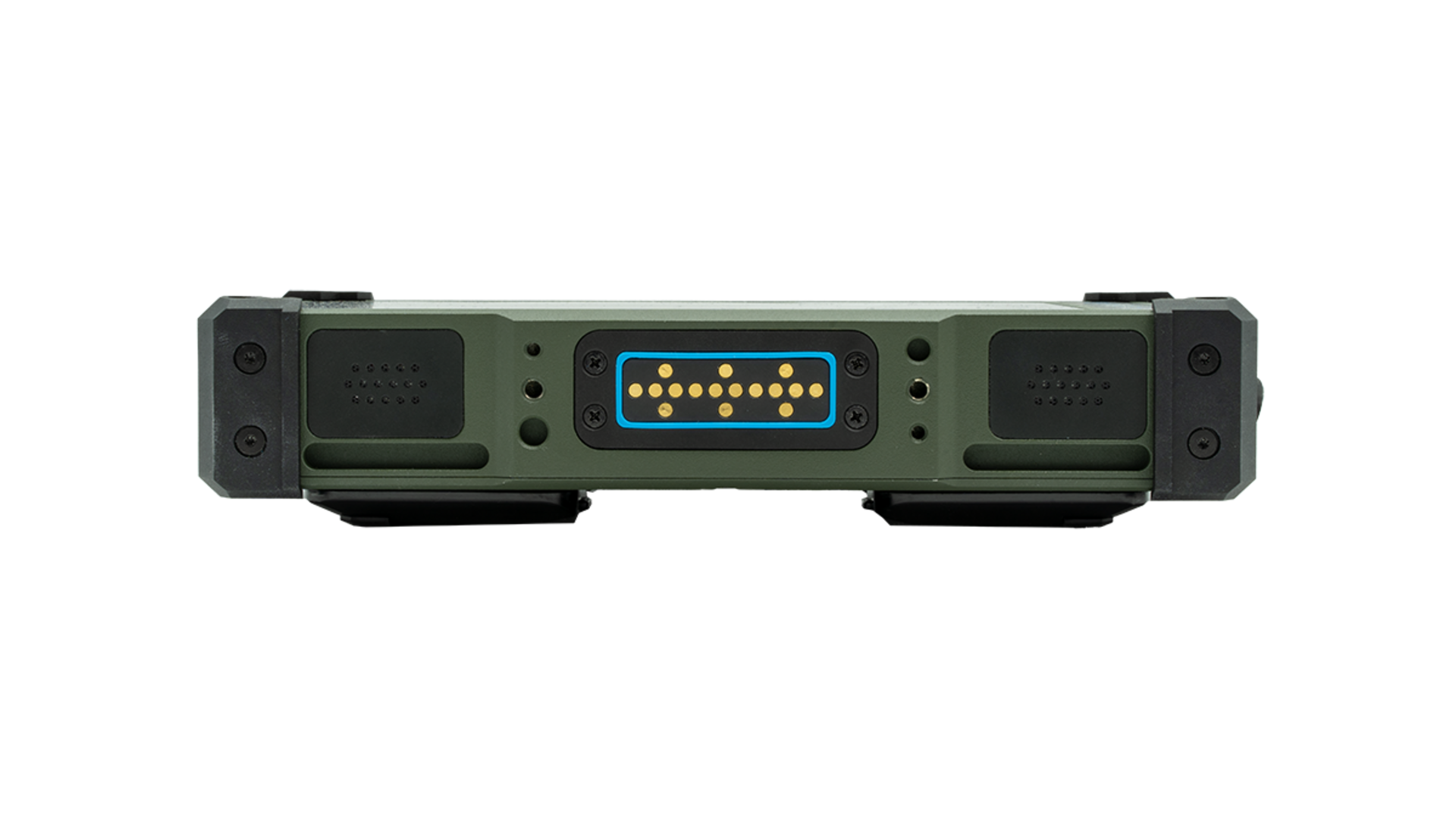

  • 1x Docking connector (POGO-pin)
  • Optional:
    • 3x MIL Fischer connector (bottom side)
  • the following signals are available:
    • USB2.0, GLAN, RS232, Audio

Connectivity [WLAN / BT / GPS]

  • Optional: Intel® AX2100 WiFi 6
    • WLAN 802.11 a/b/g/n/ac/ax
    • Bluetooth 5.2
  • Optional: Ublox Neo-M9N (GPS/GLONASS/Galileo)

Power supply

  • 2x Li-ion battery, 7.4 V, 2500 mAh (hot swappable)
  • AC-input 20 V / 3 A, 100-240 V, 50-60 Hz

USB-C AC-adaptor 60 W
Security

  • TPM 2.0 

Operating System

  • Windows 10 Pro

Dimensions [W×H×D]

  • 201 x 99 x 44.5 mm

Weight

  • 890 g

Protection class

  • IP65
  • Optional: IP67

Zertifizierung

  • MIL-STD-810H
  • MIL-STD-461G Ground Navy
  • Optional: MIL-STD 461G Ground Army
