AC/DC power supply AC150

150W in protective class II or I

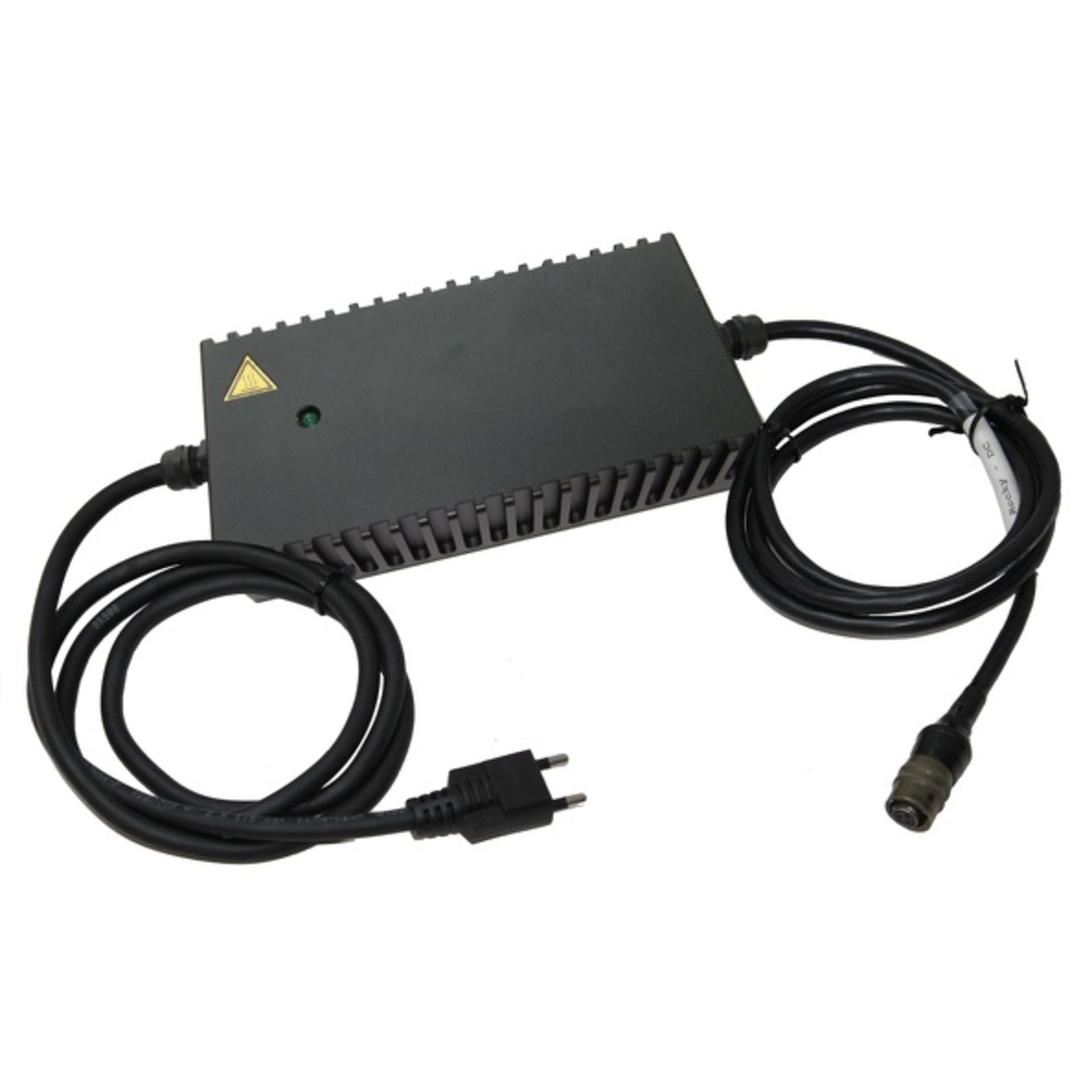

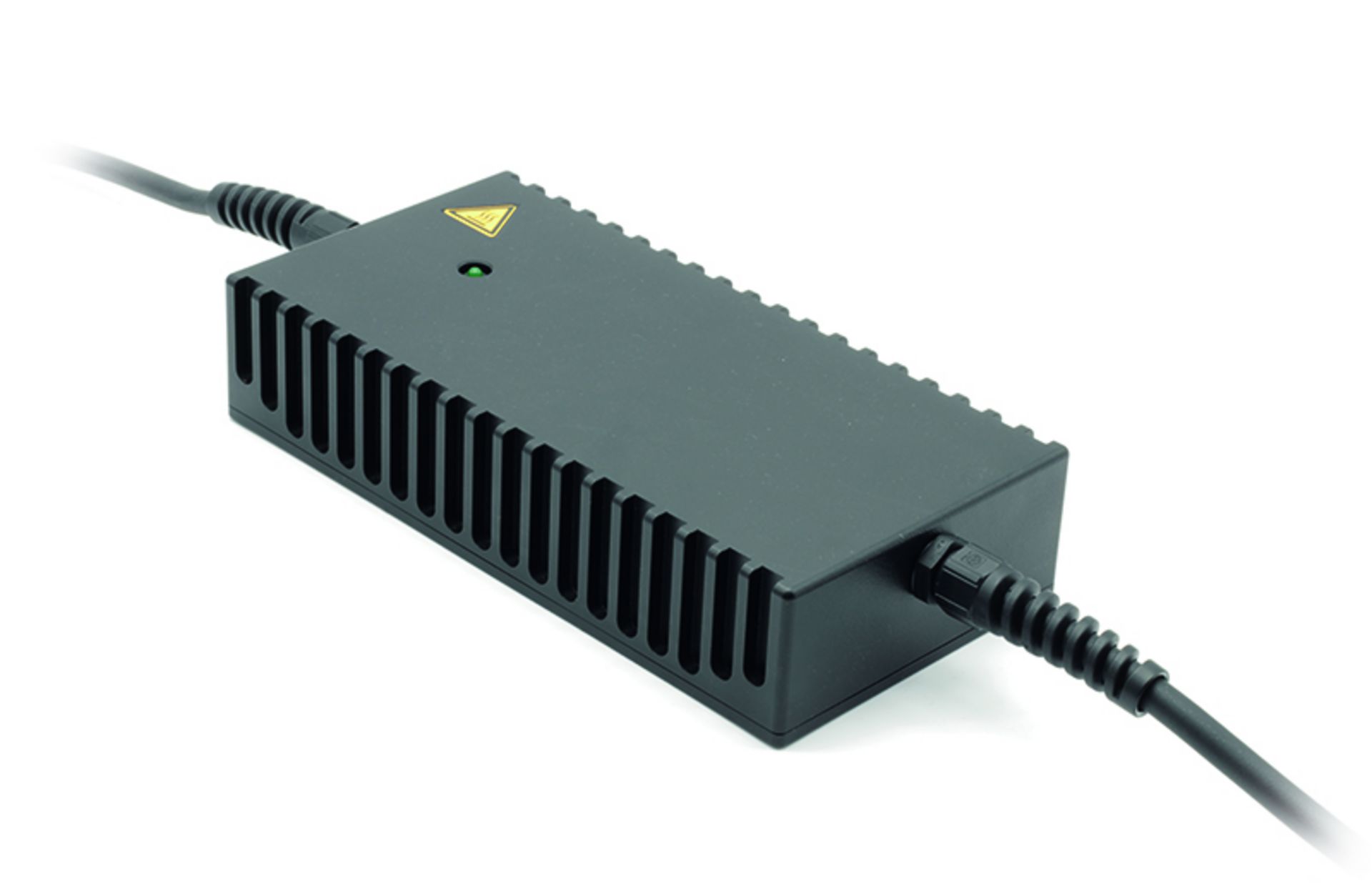

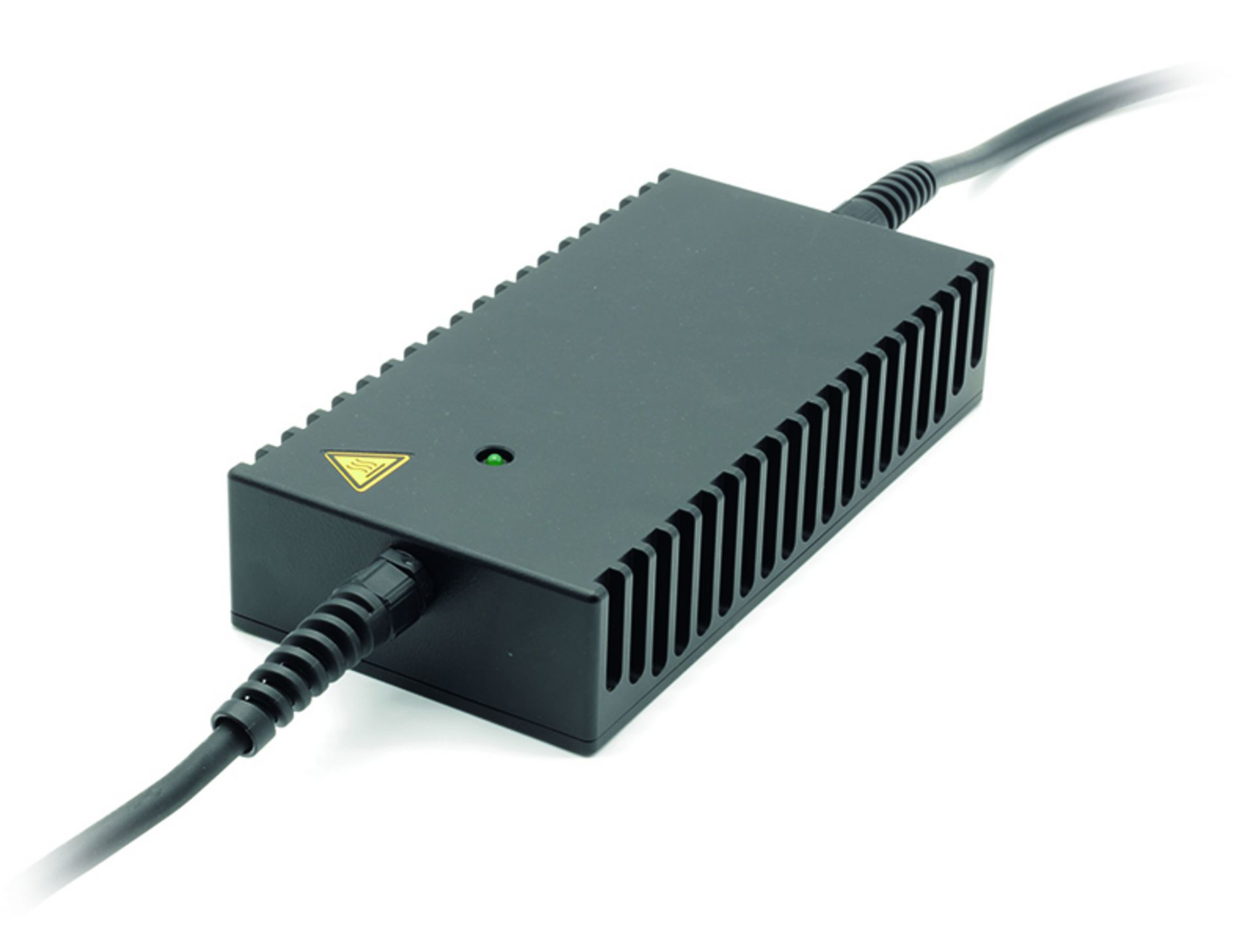

Widely used is the AC / DC adapter AC150 for power up to 150 watts. Originally designed for usage with the Lizard® RW11 laptop in the Airbus A400M, the AC150 is now being used in variants of the rugged Lizard® notebook with IP65 certification, for mobile communication platforms and non-roda IT products. The special features of this MIL power supply are the protection class II (optional I), a low leakage current, best EMC properties according to MIL-STD461F and TEMPEST NATO 27 SDIP level B (ER) as well as a frequency range of 50Hz, 60Hz and 400Hz. The hardened and powder-coated aluminum chassis makes it dust, vibration and water resistant and verified by MIL-STD810G certification. Connectors on AC and DC side are freely selectable.

General

Protection class

  • I or II (without protective conductor)

Safety

  • following EN60950, 62368

CE conformity

  • manufacturer declaration directive related to low voltage

Environmental

  • designed to meet: MIL-STD-810G
  • temperature range: operating -20°C to +60°C (optional: -40°C to +60°C)

EMC

  • designed to meet: MIL-STD-461F (Ground Army)

Resistance

  • short-circuit resistant

Cooling

  • convection cooling

Indicators

  • output: 1 LED green

Features

  • 110 VAC 60/400 Hz
  • 230 VAC 50Hz
  • protection class I, optional II
  • compact and robust set-up
  • shielded aluminium housing
  • transient protection
  • LED-indicator
  • ingress protection IP65
  • high efficiency
  • active PFC
  • short circuit proof (output)
  • overload proof (output)
  • overvoltage and current proof  (output)
  • temperature: -20°C to +60°C (optional -40°C to +60°C)
  • environmental conditions tested according to MIL-STD-810G/461F, DO 160D
  • optional: explosive atmosphere according MIL-STD-810G, Method 511
  • optional: -60 dB filter, NATO SDIP 27 Level A and B
  • connector and cable type customizable

Input values

Input voltage / Frequency

  • 110 VAC (60 Hz), 115 VAC (400 Hz)
  • 230 VAC (50/60 Hz)

Input current

  • type. 1.6 A (115 V)
  • type. 0.8 A (230 V)

Fuse

  • internal

Efficiency

  • type. > 80 %

Connections (cables)

  • power plug (without protective conductor)

Cable length

  • 147 ± 5 cm

Output values

Output voltage

  • 19 VDC or 24 VDC
  • others on request

Tolerance

  • ± 5% typical

Output power

  • 150 W (max.)
  • -20°C up to +60°C (with derating)

Residual ripple

  • < 100 mV

Current limit

  • 7.9 to 9.5 A

Connections (cables)

  • connector: 62GB-16F10-02SN

Cable length

  • 147 ± 5 cm

Mechanics

Housing

  • aluminium / RAL9005 (black)
  • others possible

Protection class

  • IP65

Dimensions

  • 237 x 118 x 49 mm (w/o cable fitting)

Weight

  • < 2,4 kg
