RW11/14 Power Module

Power Module for Lizard® RW Mobile Server Mission Systems

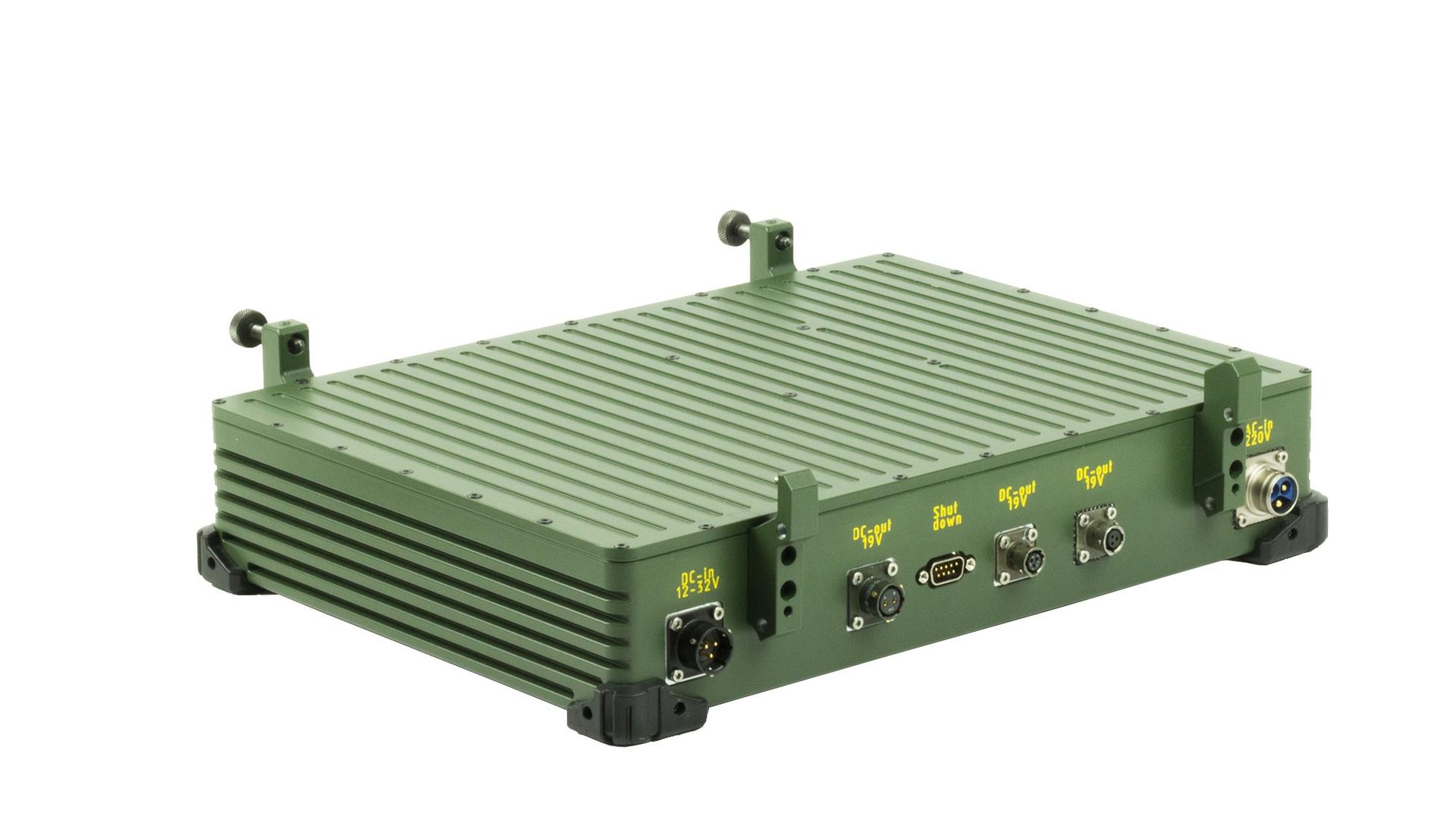

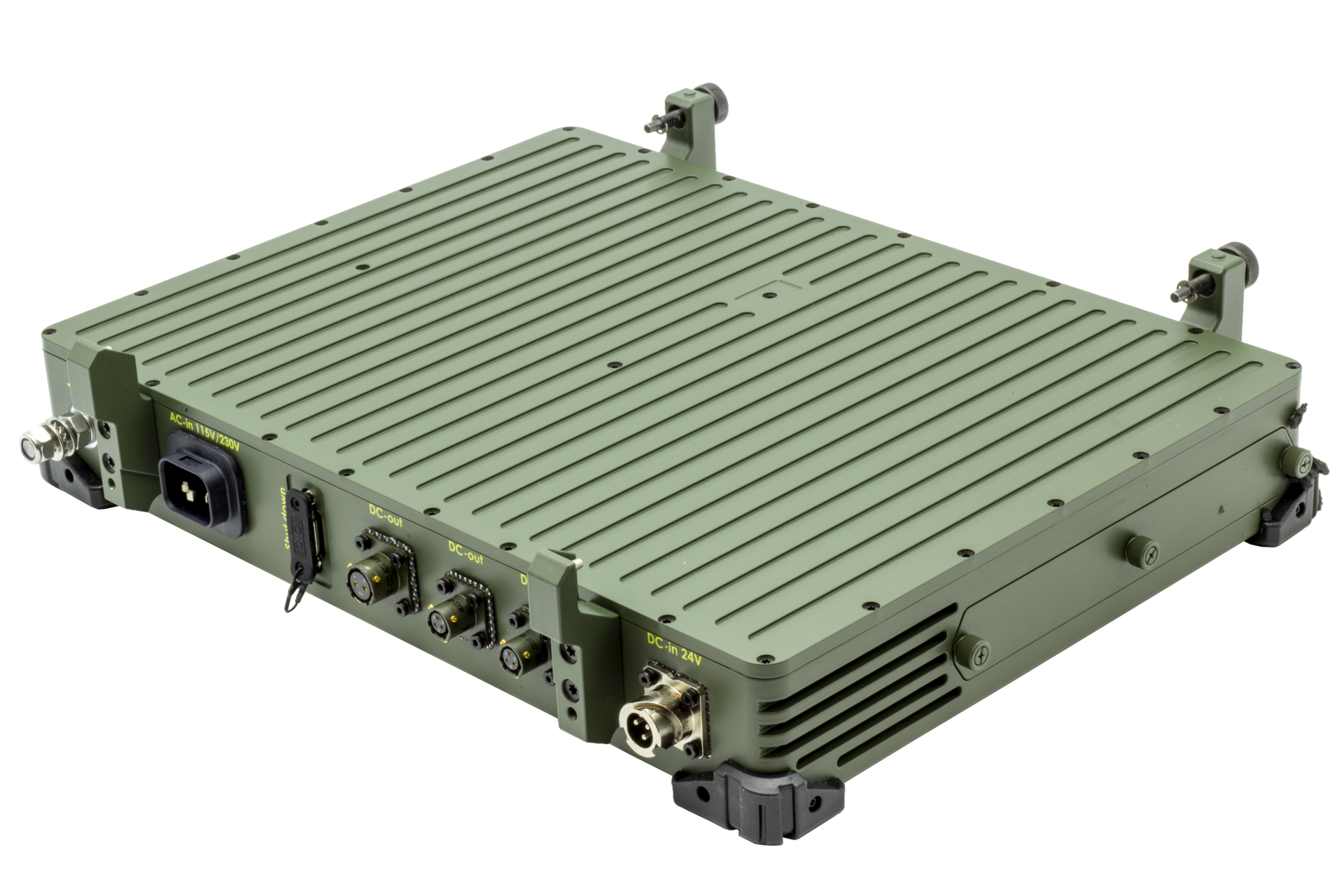

The RW Power Module is the logical extension of the Lizard® RW11 Mobile Server Mission System, building on the same design footprint. The two versions are available with one AC and one DC wide range input or with one single AC wide range input. The DC outputs, which are identical for both versions, can be used to power up to two mission modules (e.g., switches) and a Lizard® RW notebook via military DC connectors. An internal back-up battery detects power failures and briefly bypasses them in order to complete important applications on the laptop. If there is no power supply, the power module gently and precisely shuts down the notebook via the RS232 interface.


Because it is coupled via the patented mounting and holding system, the power module can be connected to the Lizard®RW and the associated switches perfectly with a maximum overall weight of 16 kg for rapid reaction forces and special forces that need to rely on quickly deployable and highly available rugged IT.

General

Input voltage AC

  • 110-230 VAC , 50 - 60 Hz

Input voltage DC

  • 18-32 VDC
  • Surge and spike resistance for 28 VDC systems according to MIL-STD-1275 and VG96916 part 5
  • Reverse polarity protection

Output voltage DC

  • max. 3x 19 VDC or 24 VDC

Output Power

  • max. 135 W

Internal UPS

  • minimum 20 minutes buffer (2x 6900 mAh = RW Li-ion battery)

Interfaces
AC+DC-In Variant:

  • 1x DC-In (18-32 VDC)
  • 1x AC-In (90~264 VAC)
  • 3x DC-Out (19 VDC or 24 VDC)
  • 1x DB9 (management)

AC-In Variant:

  • 1x AC-In (90~264 VAC)
  • 3x DC-Out (19 VDC or 24 VDC)
  • 1x DB9 (management)

LEDs
AC+DC-In Variant:

  • 1x LED für AC-IN
  • 1x LED for DC-IN
  • 1x LED for UPS battery (charging or full)
  • 1x LED status UPS (operating/flashes in UPS mode)

AC-In Variant:

  • 1x Supply voltage
  • 1x LED for AC-IN
  • 1x LED for UPS battery (charging or full)
  • 1x LED status UPS (operating/flashes in UPS mode)

Mounting

  • as DockUnder Station for RW14

Dimensions [W×H×D]

  • ca. 382 x 70 x 277 mm

Weight

  • 6.6 kg (AC-Variant)
  • 6.8 kg (AC+DC-Variant)

Protection class

  • IP65

Environmental Specification

  • MIL-STD-810G

Temperatures

  • Operating: -20 °C to +50 °C  (0 °C to +45 °C while charging batteries)
  • Storage: -35 °C to +70 °C

EMI

  • designed to meet MIL-STD-461G

TEMPEST

  • Optional: SDIP 27 Level B (ER)
