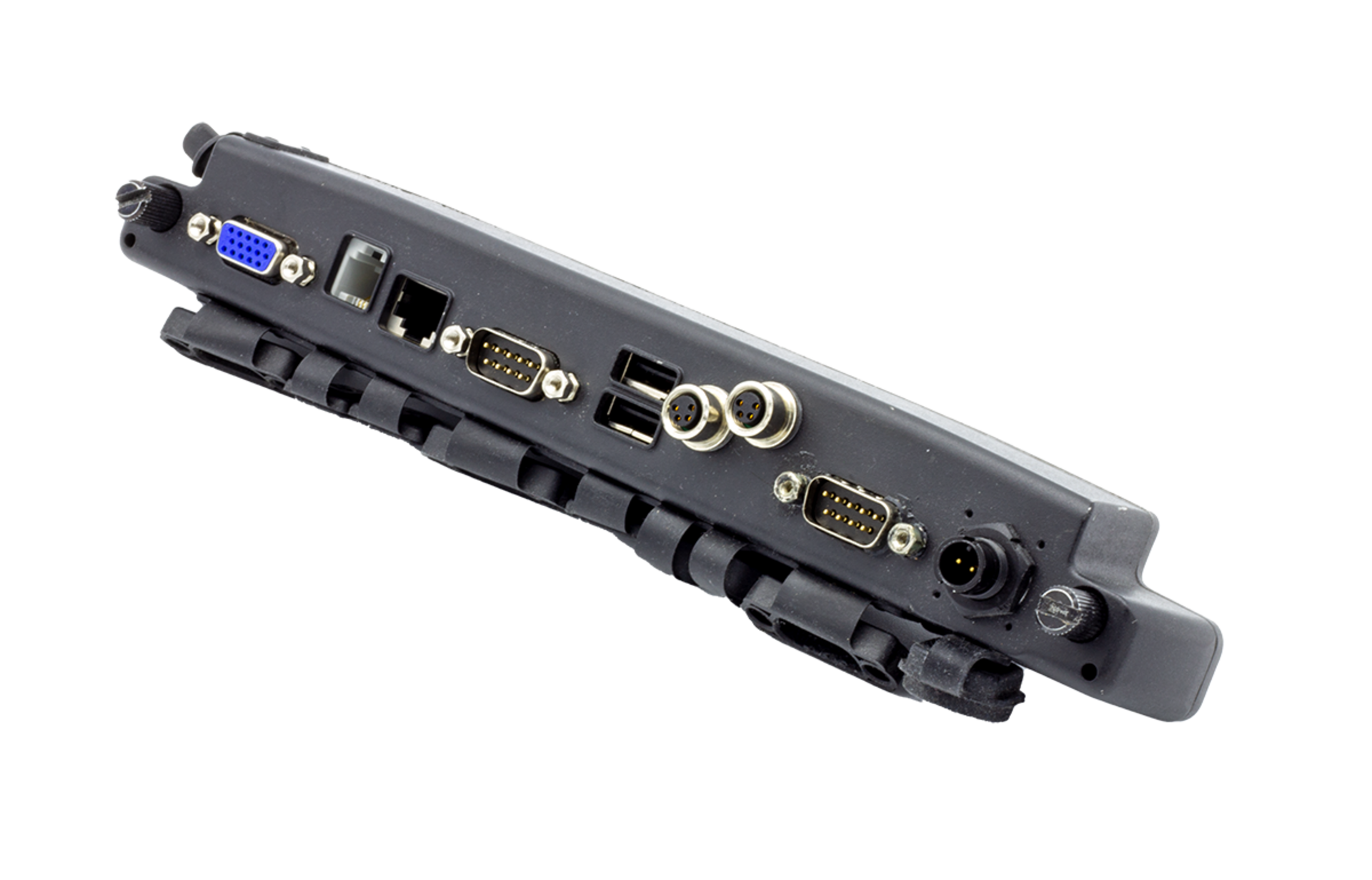

DockLite DL

Port replicator for Panther DR/DK

The Docklite DL is designed for more connection options on the Panther DR or DK series units. When the Docklite is connected, various types of connections are available, which can be used flexibly.

Technical Specification

Input voltage

  • 12-32 VDC

Features

  • Mounting holes for vehicle mounting

Easy mounting

  1. 1. align DockLite
  2. 2. attach to the unit
  3. 3. fasten screws

Interfaces

  • 1x DC-In
  • 4x USB 2.0 (2x Type A, 2x M Type)
  • 2x DB9
  • 1x VGA
  • 1x Audio (MIC, SPK)
  • Optional: 1x GLAN RJ45

Compatibility

  • PANTHER: DR13, DK13

Dimensions [B×H×T]

  • 250 x 61 x 37 mm

Weight

  • approx. 450 g

Protection class

  • IP54
