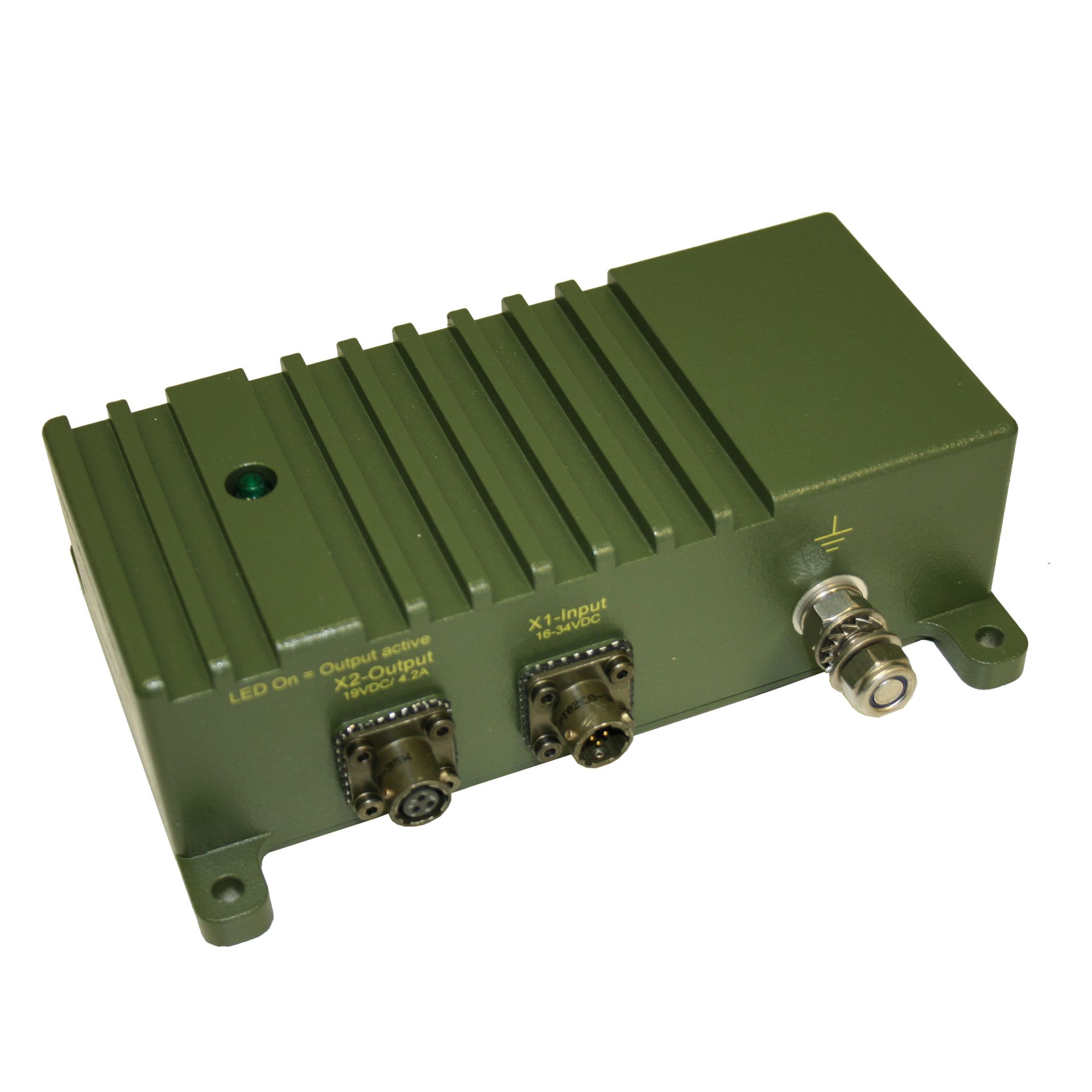

DC/DC Converter ROD 04

65 watt DC converter


The 65Watt DC converter ROD04 with 12 V or 14 V output voltage is an adaptation of the proven ROD 01.2 model. It has a hardened and powder-coated aluminium housing and is dust, water, vibration, and shock proof. Tested according to various national and international military standards. The IP65 housing also provides very good EMC characteristics and has holes and a ground connection for fixed installation, e.g., in a protected vehicle.

Originally, the model was developed exclusively for the vehicles of the Bundeswehr [German Federal Army], which have a wide range input and place high demands on surge and transient protection of the on-board voltage according to VG96916T5 (equivalent MIL-STD1275) and the ground concept. However, it is now used in many national and international projects.

Mainly used for roda Notebooks and tablet PCs with MIL DC IN connectors; however, it is also available as an open frame circuit board.

Technical specifications

Operating principle

  • DC/DC converter, insulated


Efficiency

  • ->86 % type. at UEIN = 24 V DC


Connectors

Standard version

  • Input X1: PT02E8-3P
  • Output X2: PT02E8-3SW
  • Grounding bolts M 8 x 30

Cadmium-free version

  • Input X1: Amphenol PT02E8-3P023 (nickel-plated)
  • Output X2: Amphenol PT02E8-3SW023 (nickel-plated)
  • Grounding bolts M 8 x 30


Input voltage

  • 16 V DC to 34 V DC (in accordance with VG 96916 T5)
  • Internal EMC filters for spike suppression
  • Polarity reversal protection
  • Surge and spike resistance for 28 V DC systems in accordance with MIL-STD 1275
  • ISO 16750-2:2010 for "centralised load dump suppression" test for 12 and 24 V DC systems


Current consumption

  • < 20 mA no-load up to a maximum of 4.5 A in case of UEN


Max. Inrush current

  • <20 A with UEN


Output voltage

  • 12 ±0.5 V DC or 14 ±0.5 V DC -operation display via green LED on top side
  • Internal EMC filter
  • Short-circuit-proof


Current output

  • up to 4.5 A (65 W) at 40°C


Housing

  • Material: AlMgSi1
  • Dimensions:
    (L x W x H)
    - 175 mm x 80 mm x 53.5 mm (without fixing straps or grounding screw)
    - 175 mm x 113 mm x 55.5 mm (with fixing straps)
  • Colourless passivated and green-painted RAL 6031HR
  • Silkscreen lemon-yellow RAL 1012


Weight

  • approx. 1.0 kg
