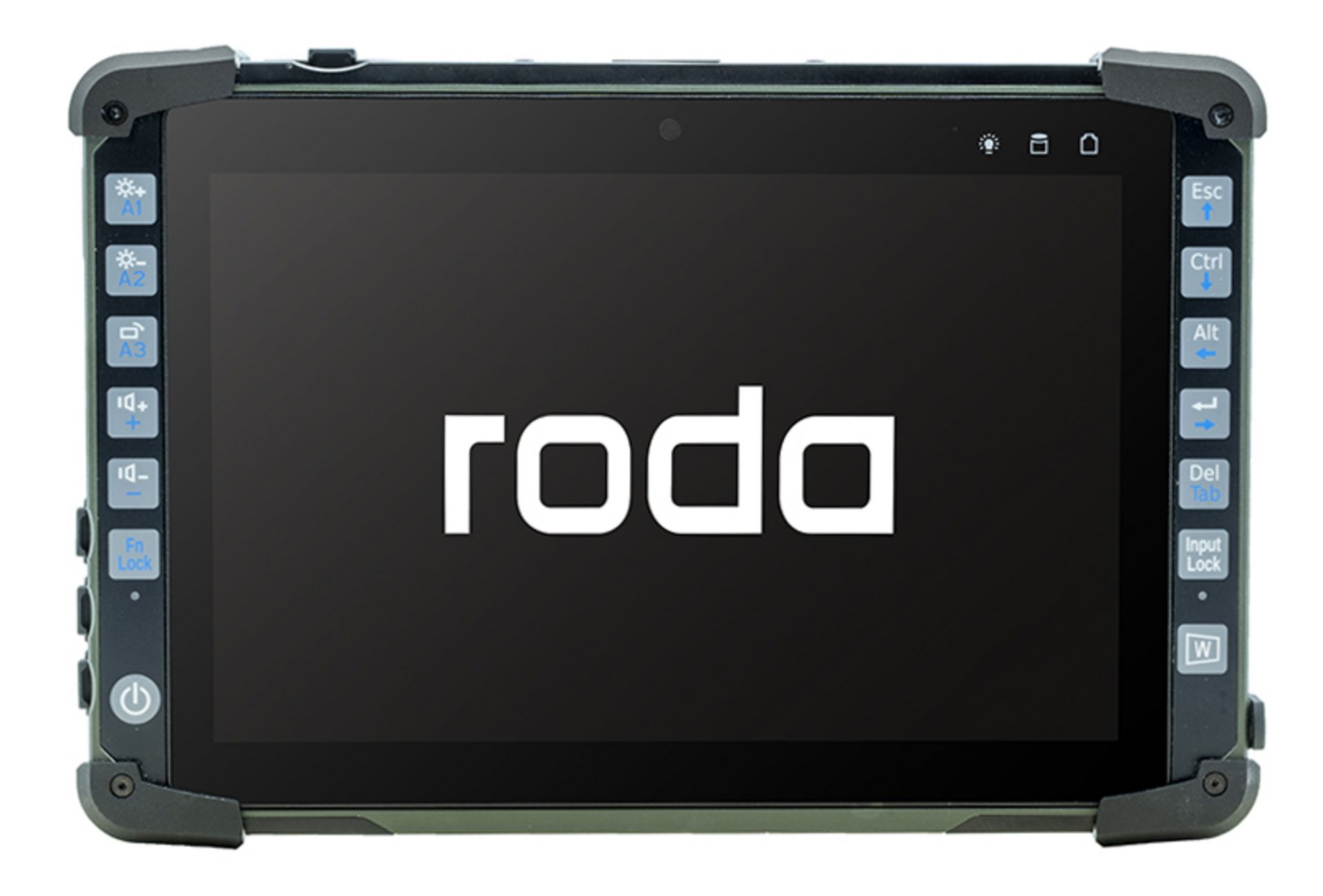

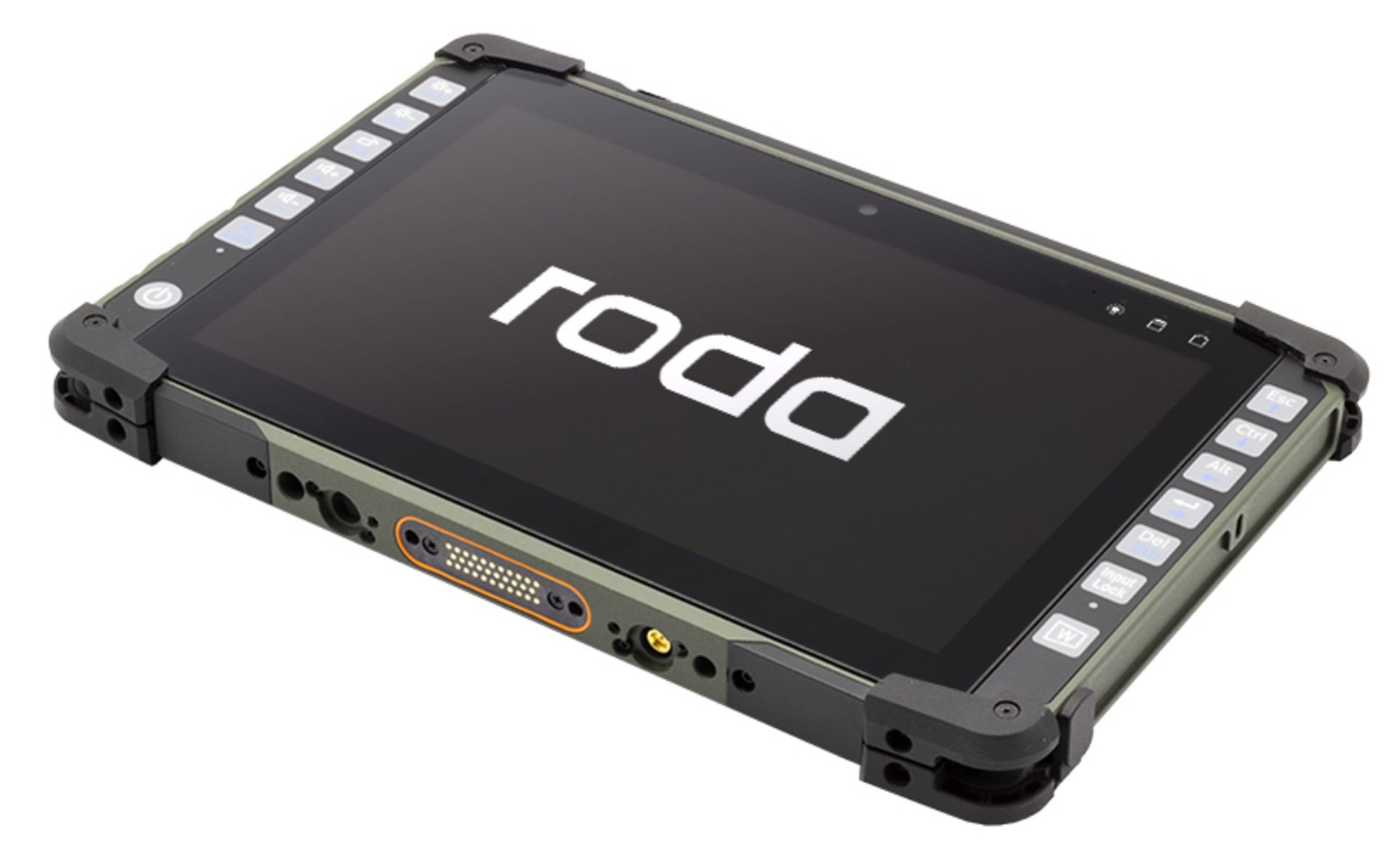

Panther DS13

rugged 10“ Tablet-PC

Following the trend of lightweight tablet PC, the Panther DS13 combines the high mobility of the Panther series with the slim design of Lizard^® series. The Powerful Intel^® Core ™ i7 processor provides a outstanding performance. The device is IP65 and MIL-STD-810 certified to withstand even the harshest environmental conditions. As the Lizard^® series the Panther DS13 provides also options for custom-specific MIL-grade connectors.

Technical specifications

Display

LCD 10.1“ WUXGA (1920x1200) 16:10
LED backlight
sunlight readable typ. 800 cd/m²
resistive multi touch screen

Chipset

Intel^® Kaby Lake-Y platform

CPU

Intel^® 7th Gen. Intel® Core™i7-7Y75 (4 MB Cache, up to 3.6 GHz)

Graphics

Intel^® HD Graphics 615

Memory

16 GB LPDDR3, 1866 MHz

Storage

mSATA 2280 SSD 128 - 512 GB I-Temp

Audio

HD Audio and mono speakers

Buttons

power button
function keys

Power supply

12~32 V_DC with BVA & surge protector
Li-ion battery 11.1 V, 4200 mAh
AC-adapter 90 W, 19 V_DC, 3.4 A, 100~240 V_AC, 50/60 Hz

Sensor

light sensor

Security

TPM2.0 module
Kensington lock
password security (supervisor password, user password)

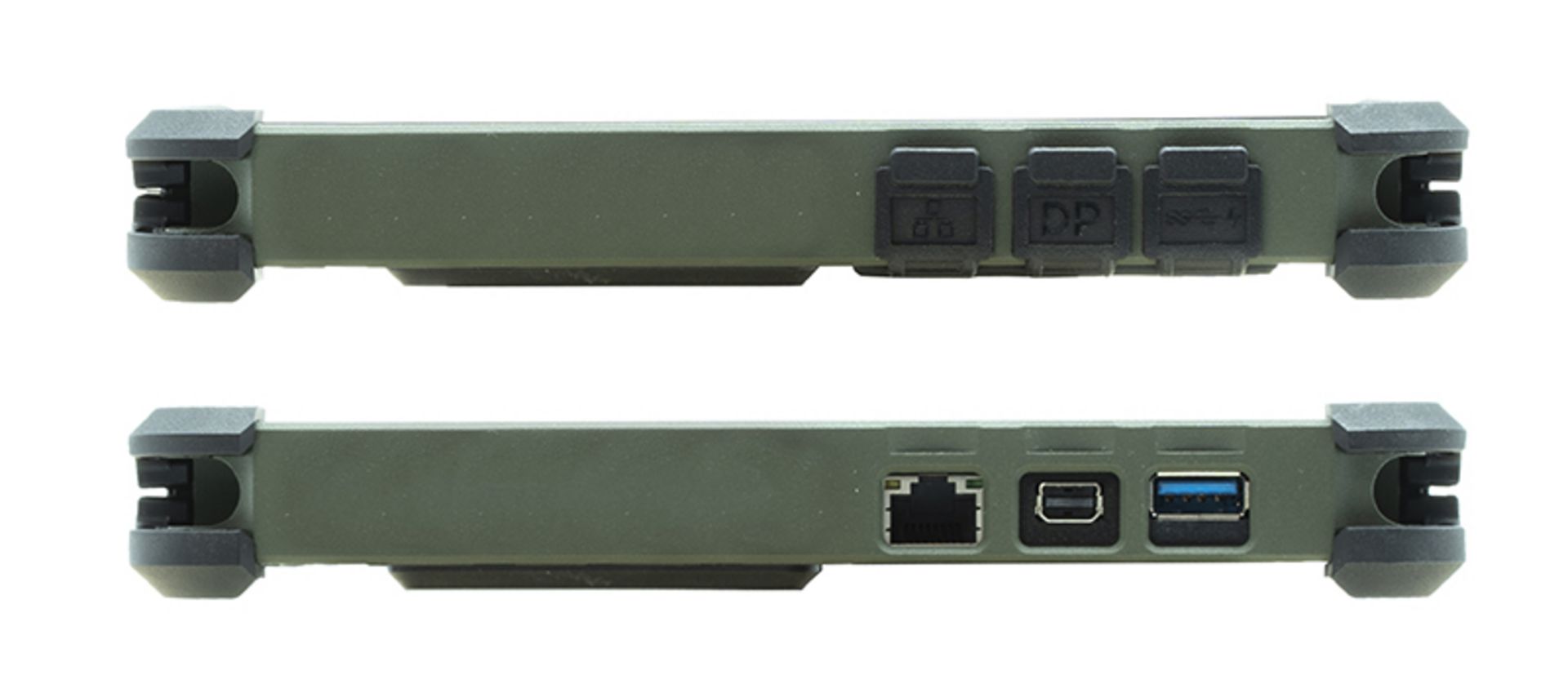

Interfaces (left side)

Variant 1: 2x USB 3.1, 1x mini Displayport
Variant 2: 1x GLAN RJ45, 1x mini Displayport, 1x USB3.1

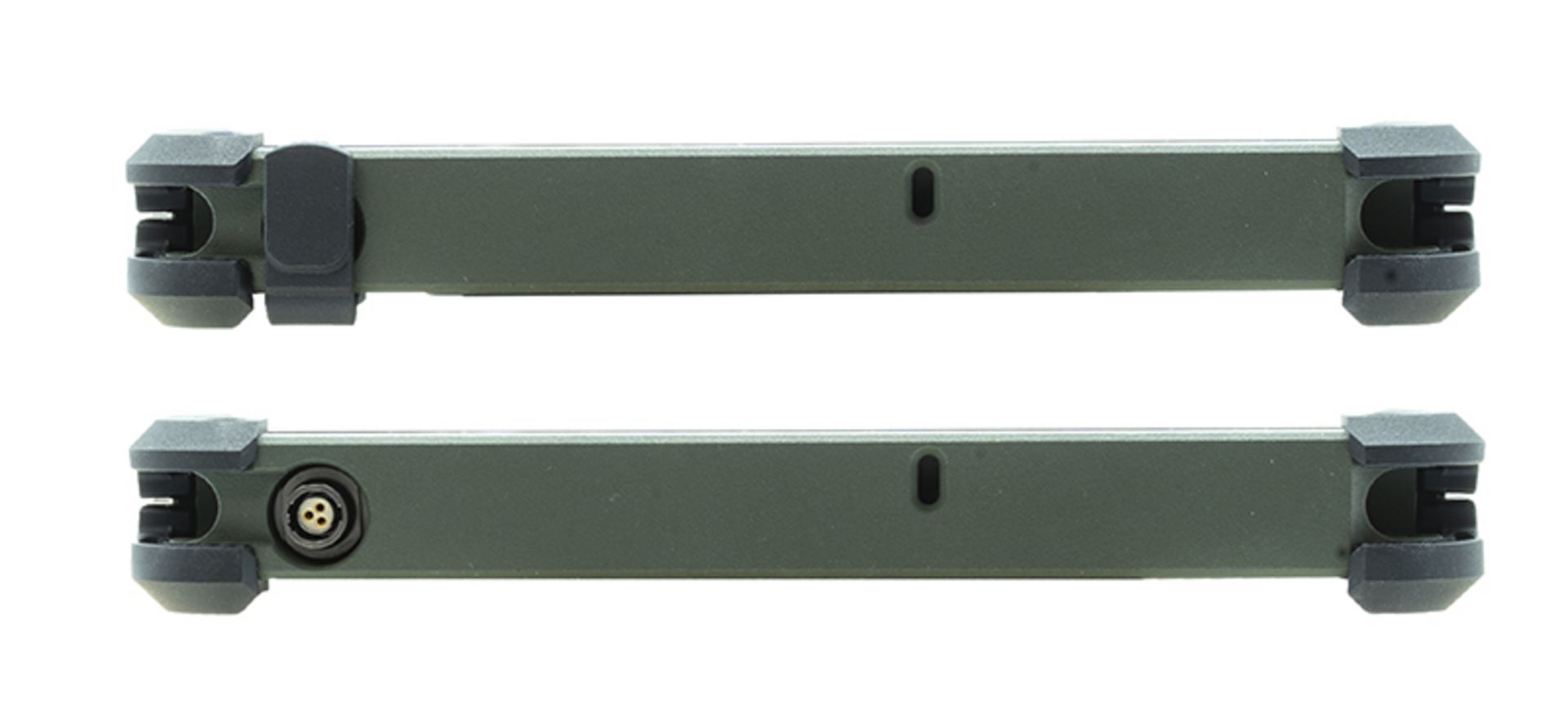

Interfaces (right side)

1x DC-In (2-Pin)

Interfaces (top side)

micro SD card slot

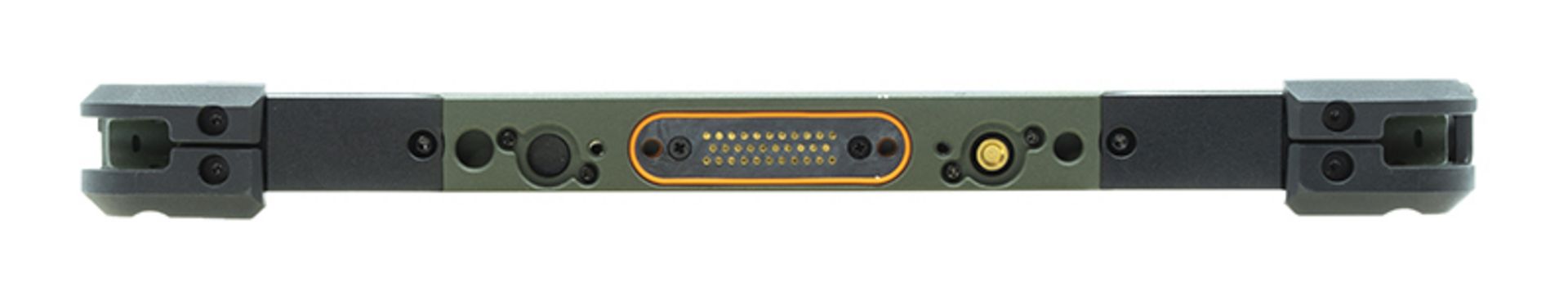

Interfaces (bottom side)

1x DockLite connector
2x ext. antenna signal

Operating Systems

Windows 10

Certification

CE/FCC, WEEE, REACH, RoHS2.0
full IP65 (with opened I/O-port covers)
MIL-STD-810G
MIL-STD-461G

Housing

milled anti-corrosive aluminum

Colour

military green (NATO olive / RAL6031HR)
black

Dimensions

286 x 193 x 27 mm (L x D x H)

Weight

1.39 kg with battery (ca. 0.3 kg)

Options

capacitive multi touch screen (typ. 1000 cd/m²)
WiFi module (Intel® Wireless-AC 9260)
- WLAN 802.11 a/b/g/n/ac
- Bluetooth 5.0
GPS module u-blox Neo-M8N (GPS/GLONASS)
additional sensors: AMG sensor module
- accelerometer, magnetometer, gyroscope
embedded digital mic
barcode reader (trade-off with micro SD card slot)
COM port (trade-off with micro SD card slot)
wide temperature range for -30°C (heater)
night vision mode (trade-off with invisible mode)
invisible mode (trade-off with night vision mode)
MIL Fischer I/O-ports (max. 4 MIL-interfaces possible)
- up to 2x MIL COM [not switchable by BIOS] (2x RS232 or 1x RS232 + 1xRS422)
- 1x MIL Audio (audio or headset)
- 1x MIL VGA / RGB interface for external display
- 1x MIL USB2.0 interface
- 1x MIL Gigabit LAN interface
MIL-STD-461G certification
- Ground Army (Navy mobile & Army)

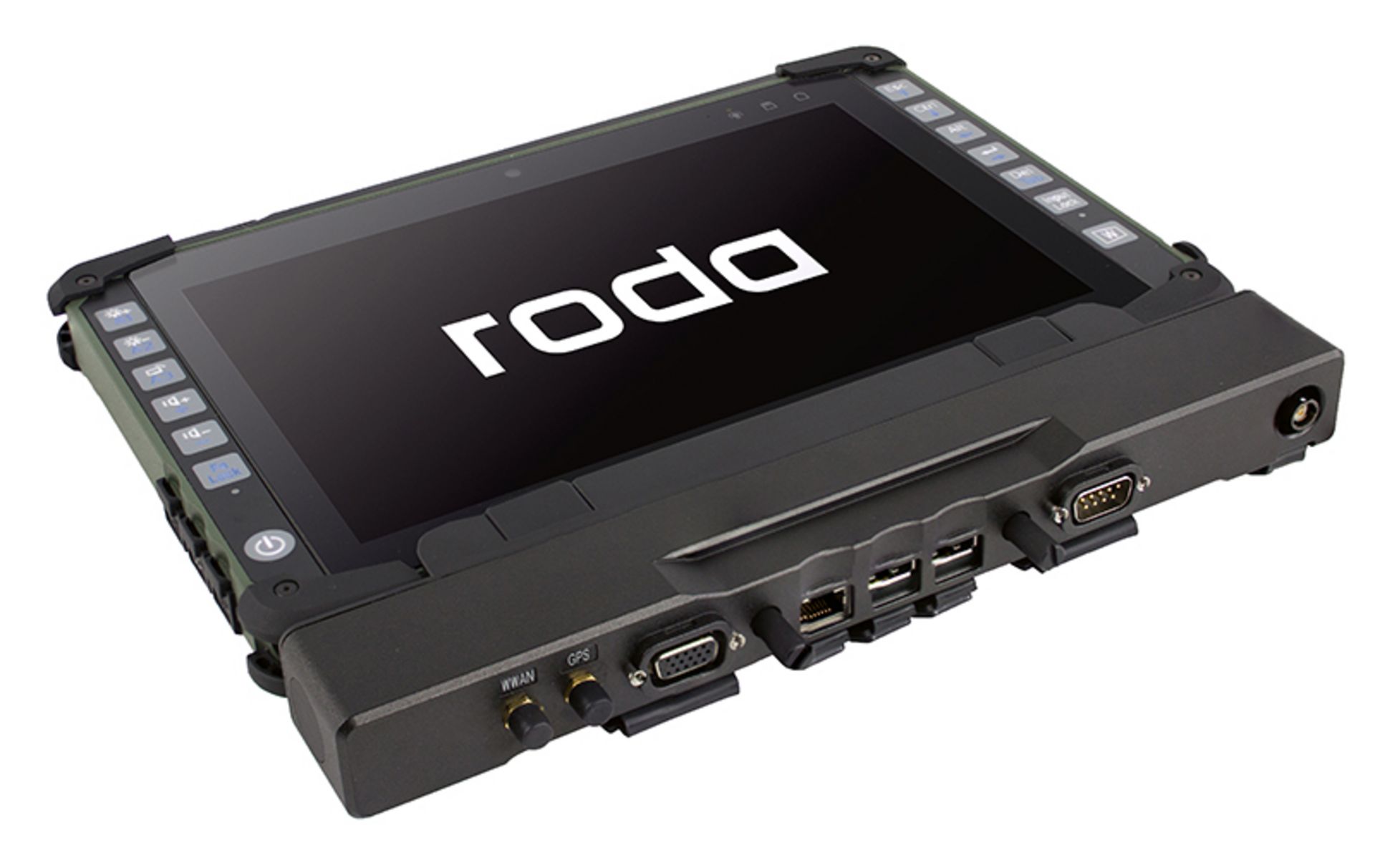

Easy and fast extensible

By means of the Docklite DS for Panther DS13, an easy and fast extension of a large range of interfaces is possible.
With this additional option of the docking solution, the basic variant with commercially available connectors can be used or, at customer's request, own solutions can be realized, optionally also with military round connectors.

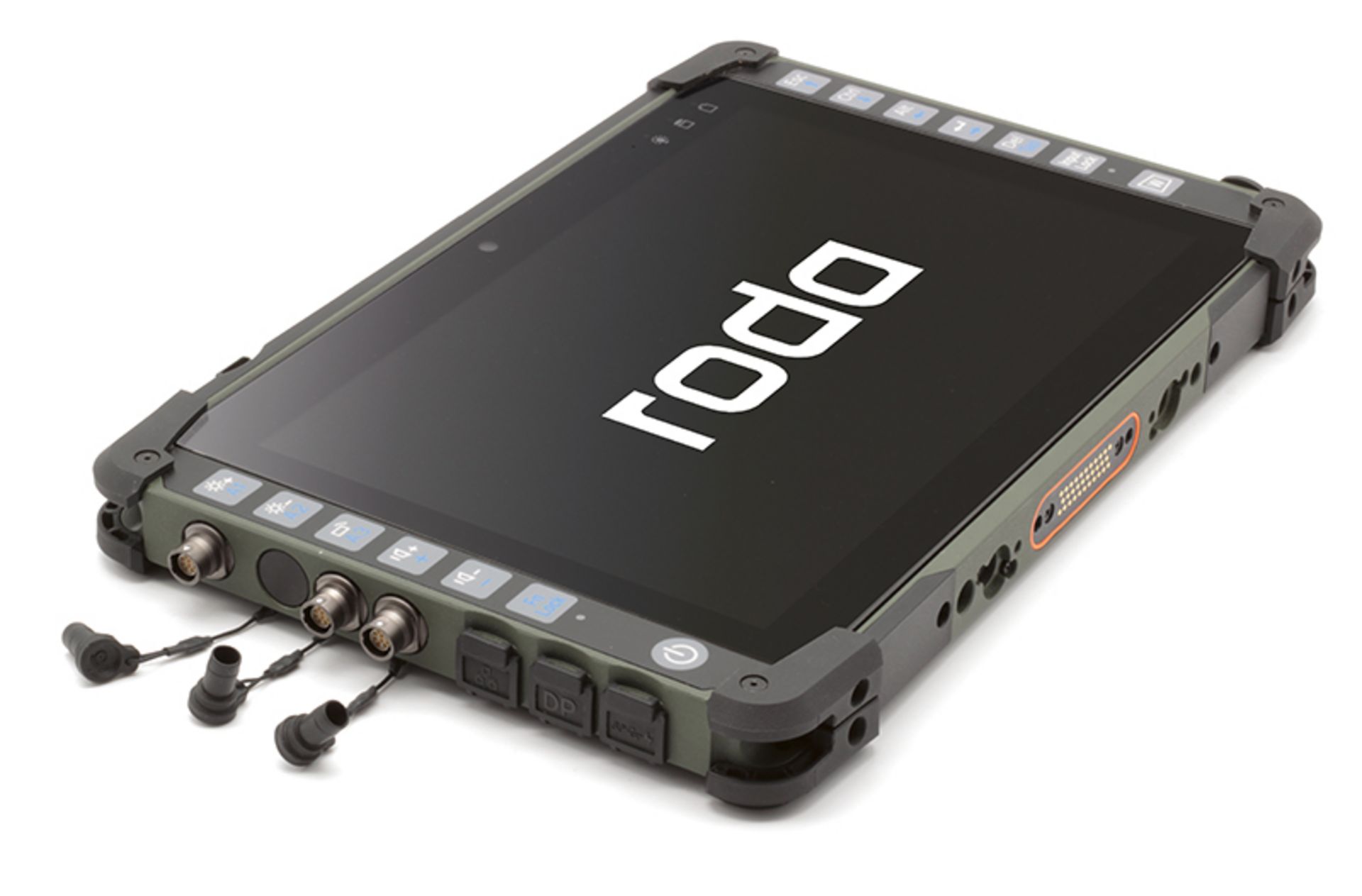

Flexible modifications

The standard version of the Panther DE13 and DS13 can be extended at any time with Fischer military round connectors. A wide range of interfaces is available as standard option and can be integrated into the device subsequently. Customized conﬁgurated connections can be implemented at any time.

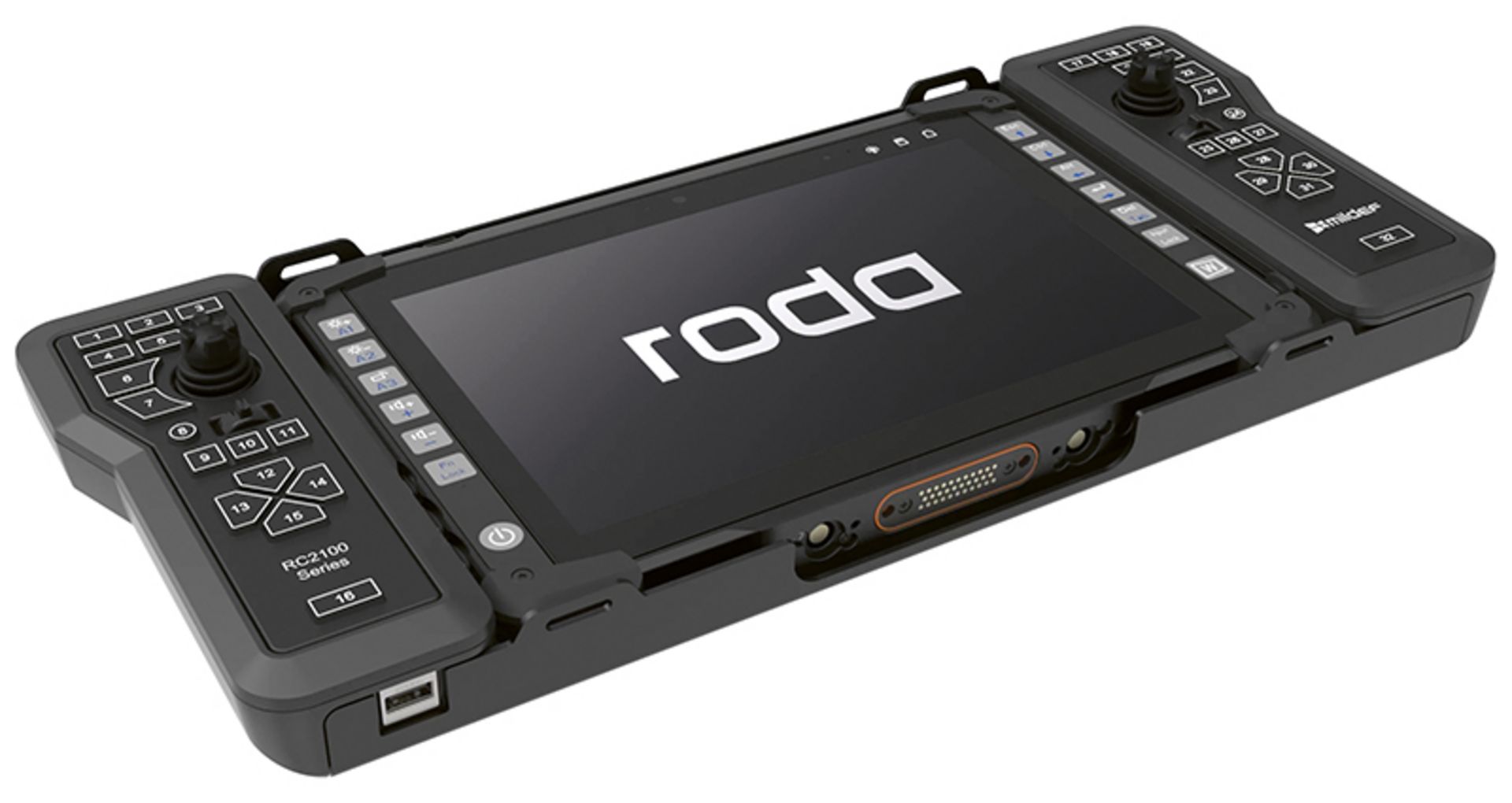

Retain full control

Specifically designed for the Panther DS13, the HUD Controller expands the 10" device into a complete controller for drones and unmanned vehicles. The Panther is simply connected to the controller via docking solution, without the need for any special modiﬁcations. This way, even if the tablet generation changes, the device can be easily swapped at any time without replacing the controller.
