Isolated Eth/CAN Gateway

Isolated CANBUS interface over Ethernet

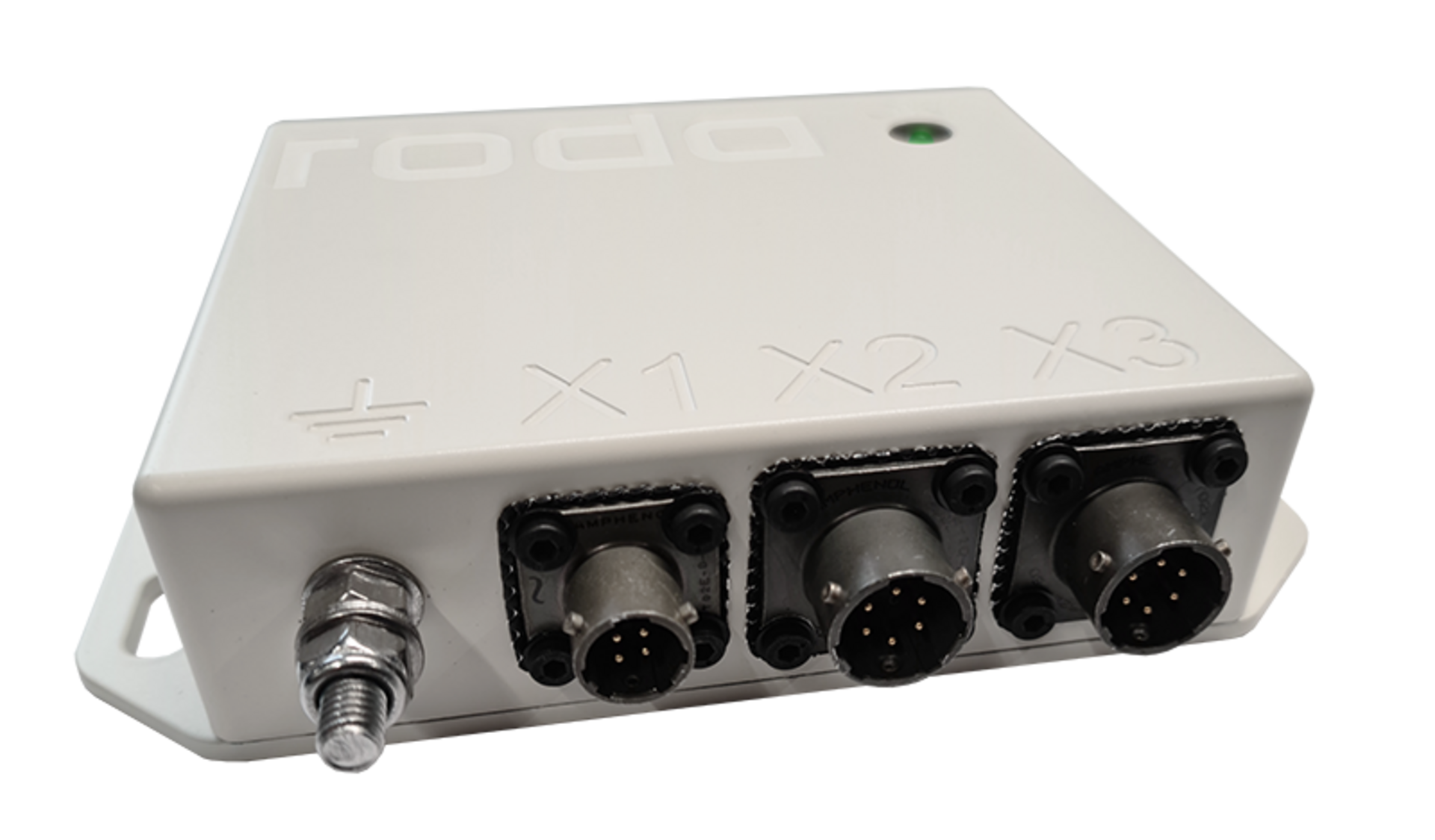

Actual military vehicles are prepared with CANBUS to host modern C4I systems. In order to convert Ethernet to CAN signals, roda has already built initial functional samples of the Ethernet-CAN isolated adapter which are VG96916-T5 and MIL-STD-1275 qualified. The isolated Ethernet-CAN adapter is equipped with a micro-controller and its own power supply. The controllable communication paths allow data transmission in full-duplex (CAN to Ethernet and Ethernet to CAN) or half-duplex (data transfer in one direction) over internet with standard TCP/IP protocol.

In addition, the web interface can be used to set individual functions, including a CAN network filter.

Technical specifications

Input voltage

  • 16 - 32 VDC according to MIL-STD-1275 and VG96916T5

Ethernet port

  • LAN (10/100 Mbps) >500 VDC isolated

CAN port

  • DB9 (250/500/1000 kbps) >500 VDC isolated

Communication

  • Full-Duplex: Simultaneous transmission between Ethernet and CAN
  • Half-Duplex-1: Only data transmission from Ethernet to CAN
  • Half-Duplex-2: Only data transmission from CAN to Ethernet

Configuration

  • Web-Interface: Setting up the device, the communication mode and CAN-filter

Interfaces

  • Evaluation model with standard connectors: 1x RJ45, 1x DB9, 1x DC-In, 1x grounding bolt
  • Serial model with MIL connectors: 1x MIL LAN, 1x MIL CAN, 1x MIL DC-In, 1x grounding bolt

Environmental qualification

  • IP54
  • Design to meet MIL-STD-810H
  • Design to meet MIL-STD-461G
  • MIL-STD-1275
  • VG96916-T5

Housing

  • Aluminum

Weight

  • Approx. 1 kg
