8-Port RJ45 cable drum switch

unmanaged, yet rugged

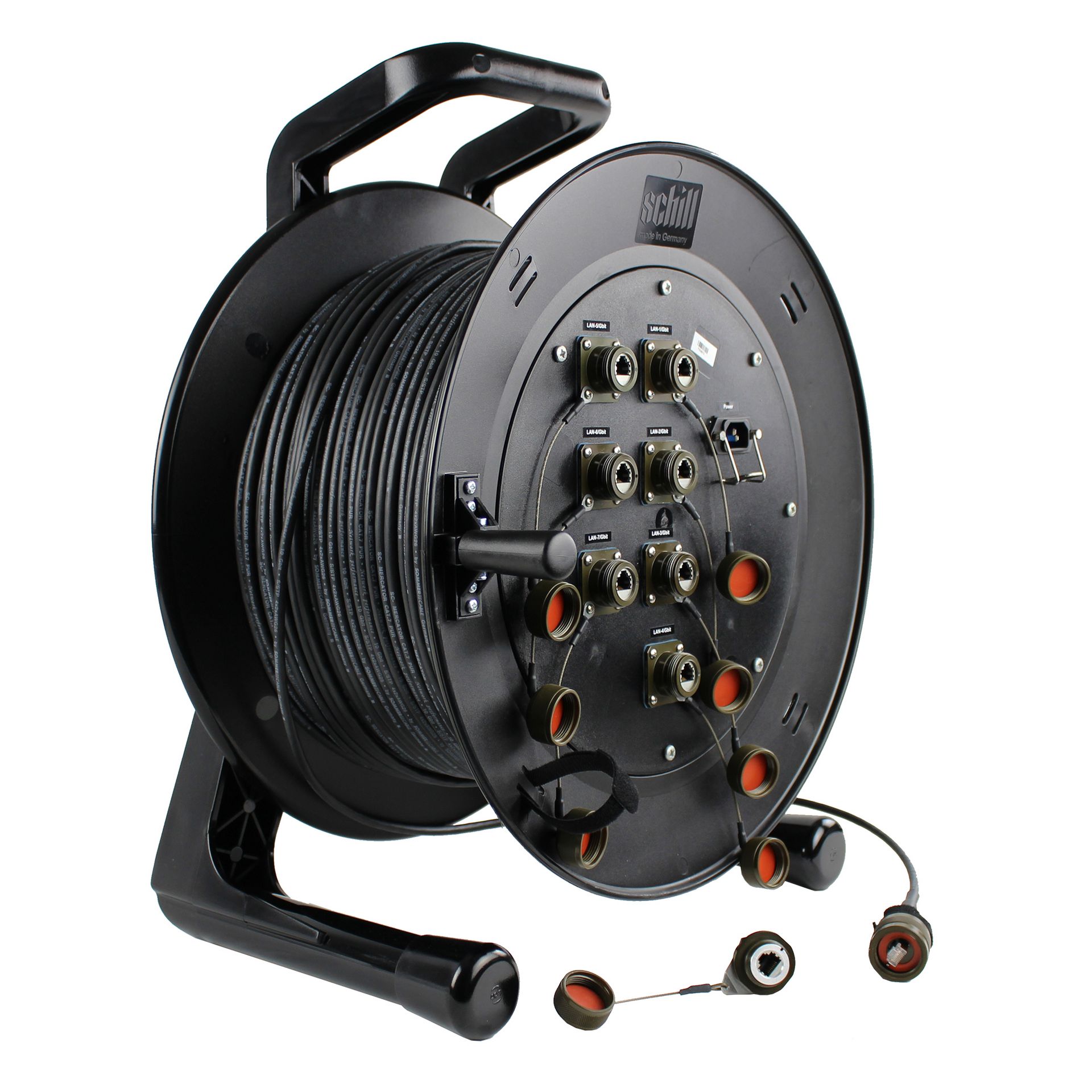

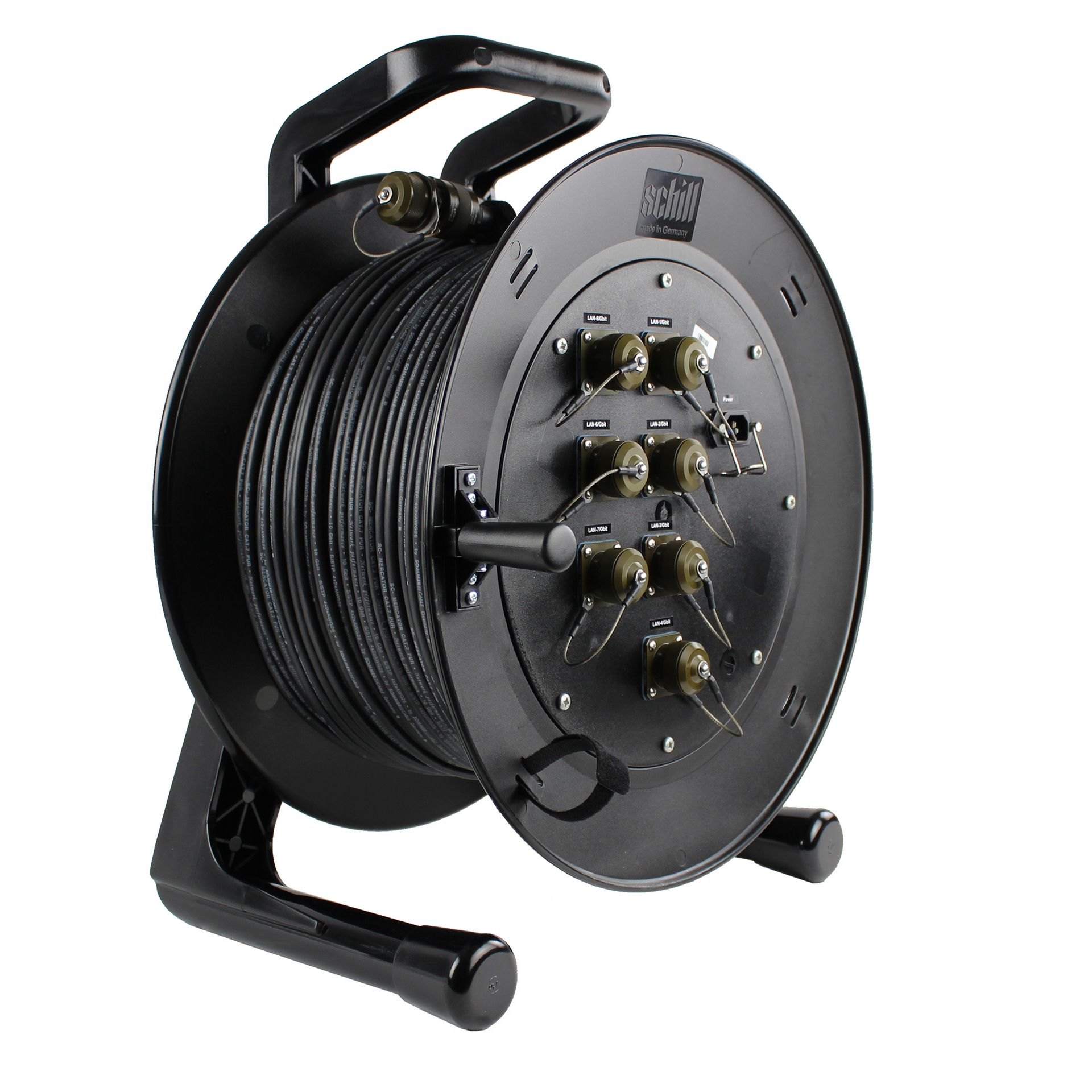

The rugged cable drum with an integrated 8-port switch can establish an IT connection in portable communication systems over a distance of 100 m. The cat. 7 Ethernet cable on the drum is used to create outdoor-suitable connections and transmit communication and data signals. The power for the integrated copper switch is supplied by an IEC socket located on the front of the drum. The 8 available Ethernet interfaces enable data transmission with 10/100/1000 Mbit. The RJ45 interfaces meet the IP65 requirements (spray water/dust) in accordance with DIN EN 60529. The cable drum is equipped with a brake to prevent unwinding during transport. Impact-resistant plastic ensures resistance to harsh environmental influences.

General

Interface cable end

  • 1x 10/100/1000 MBit RJ45
  • OCC R Jack Series ECRA0213UB0
  • with protective caps

Interfaces at the cable drum

  • 7x 10/100/1000 MBit RJ45
  • OCC R Jack Series ECRC3103U00
  • with protective caps
  • 1x Schuko male plug 250 V AC, 16 A

Cable length

  • max. 100 m (-0 / +1%)

Cable type

  • CAT7 Ethernet cable

Properties

  • Cable drum brakes, hook and loop cable fastener

Voltage input

  • 100-240 V AC, 50/60 Hz

Power consumption

  • 25 W

Certification

  • IP65 / IP54 (IEC socket)

Temperature in operation

  • -40°C to +75°C

Housing

  • impact-resistant plastic
  • Grip and mount: Hostalen GC7260
  • Drum: Makrolon 2805

Colour

  • black

Dimensions

  • 445 x 555 x 275 mm

Weight

  • approx. 10 kg
