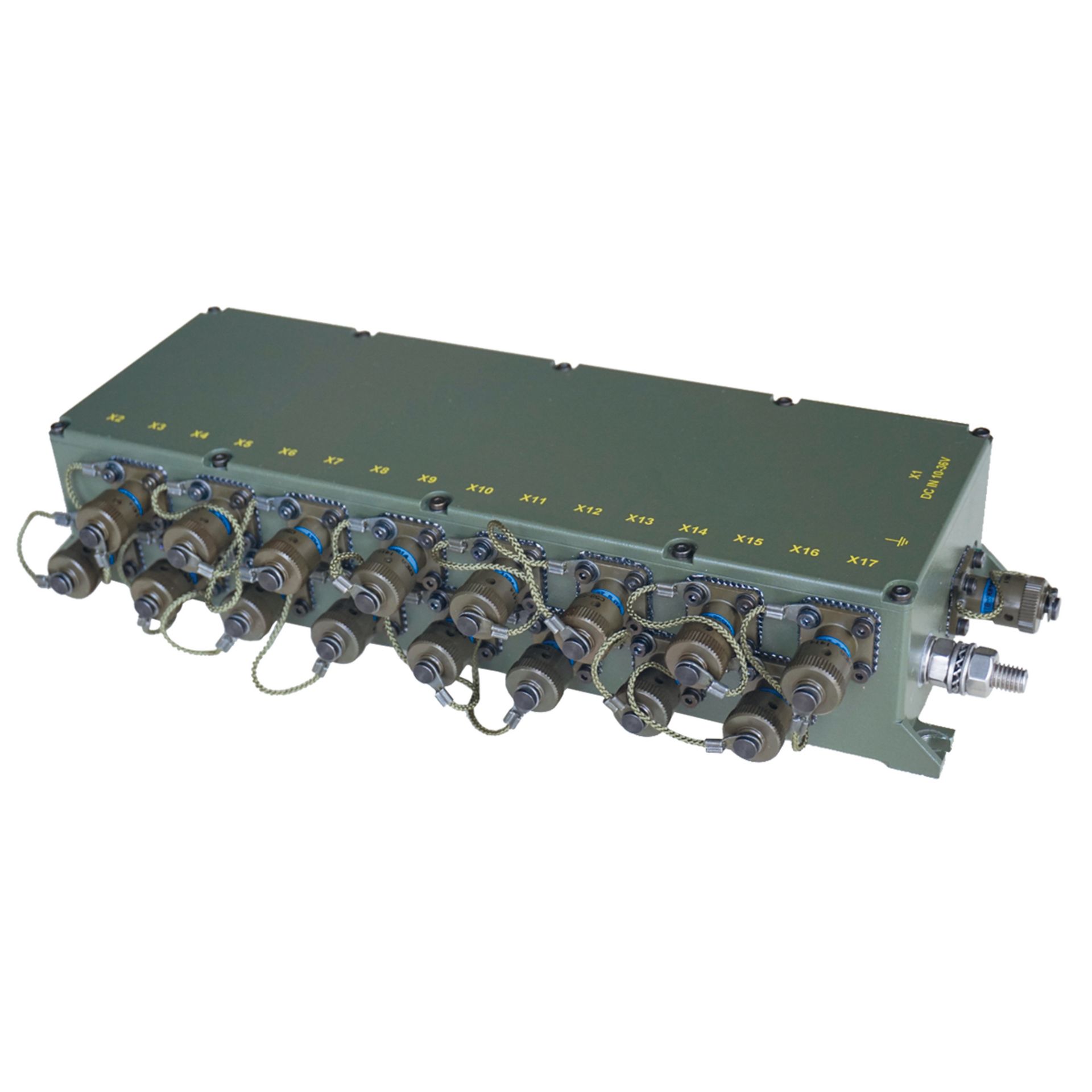

16-port 10/100 Base-T switch

unmanaged, yet rugged

Technical specifications

Specifications

  • 16 ports 10 / 100 Base T, each equipped with an input and output
  • All port inputs and outputs are galvanically isolated from each other
  • Supports IEEE 802.3-compliant protocols

Connectors

  • Ports: sockets 16 x SJT00RT-08-35SN014-
  • Power supply connector SJT00RT-08-98PN014
  • Grounding bolts M 8 x 30


Power supply

  • 10 V DC to 36 V DC in accordance with VG 96916 T5 or MIL-STD-1275
  • Internal EMC filter for spike suppression
  • Operating display via green LED


Current consumption

  • for connection of 16 ports with 10 V 0.60 A, with 28 V 0.25 A, with 36 V 0.20 A


Housing

  • Material: AlMg3, milled
  • Dimensions: (L x W x H) 290 mm x 100 mm x 60 mm (without protruding parts)
  • Passivated and painted (pearl-white RAL 9013 or green RAL 6031)
  • Silkscreen black RAL 9005 for pearl-white or lemon-yellow RAL 1012 for green)


Weight

  • approx. < 1.5 kg
