Note: This product will be end-of-life in July 2019 and with a Last Time Buy until September 2020 at the latest. The successor model Panther DR13 in same Form-Fit-Function will be available from January 2020!

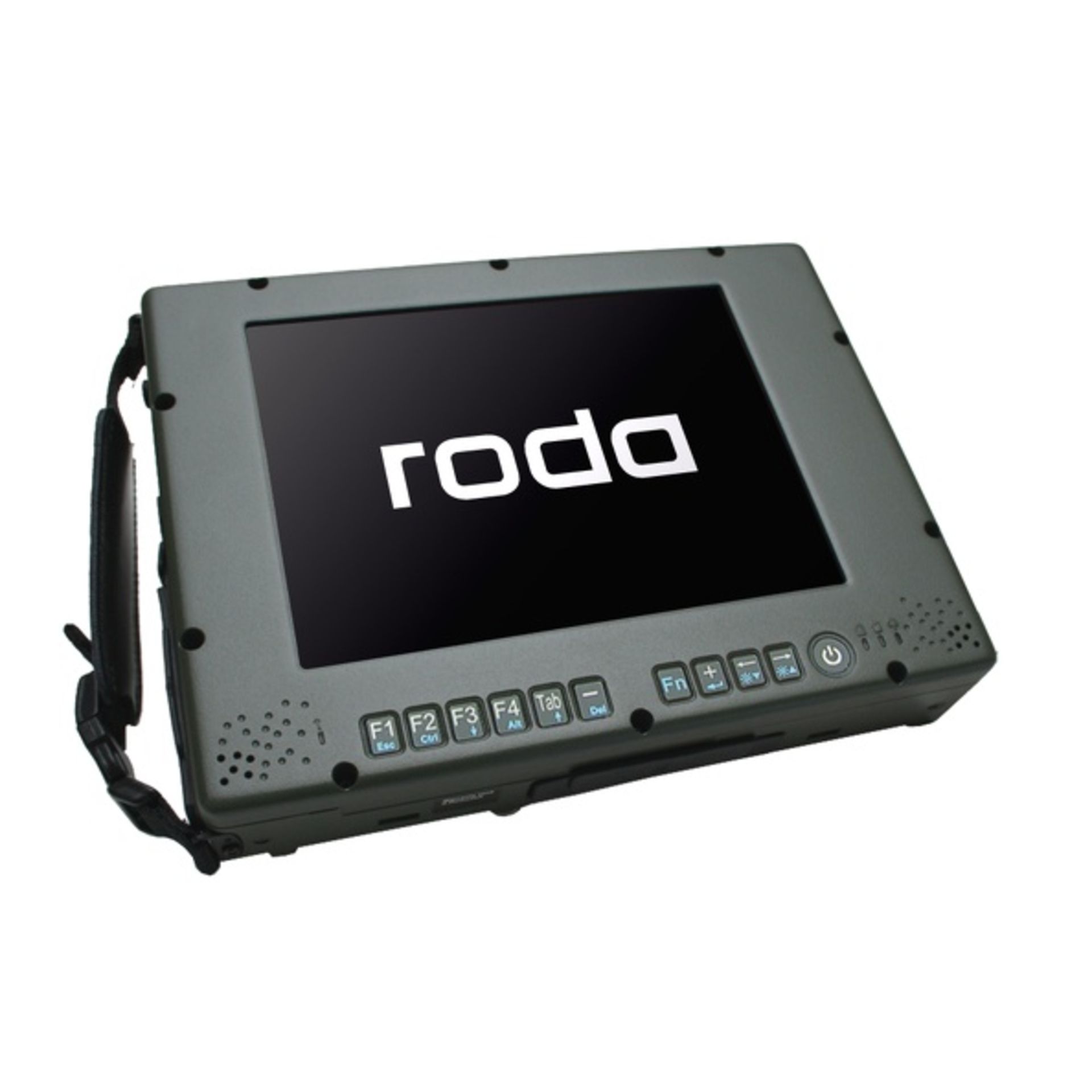

Panther DR10

rugged 8.4" tablet PC

The 8.4" tablet PC Panther DR10 is characterised by its extraordinary customisation options and enormous ruggedness. The variety of available modules and possible interfaces with industrial or military plugs is enormous, which is proven by countless installations in protected and armoured vehicles.

In addition, the Panther series offers the same IP65 protection concept and IT platform as the Rocky laptop, so you can rely on sophisticated technology. The open product architecture of the Panther also allows a modular combination with the roda displays, so that individual panel PCs can be configured from standard components. This is how the development time and expenditures for a panel PC with 10", 15", 19", or 21" are reduced to an affordable and acceptable scale.

Technical specifications

Display

  • 8.4" XGA (1024×768)
  • LCD readable in sunlight
  • LED backlight resistive touch screen

Chipset

  • Intel® Huron River Platform
  • Intel® Cougar Point QM67

CPU

  • Intel® Core™i7-2610UE™, Sandy Bridge,
  • 1.5 GHz (2.4 GHz max. Turbo Frequency)

Graphics

  • Intel® HD Graphics 3000

Memory

  • up to 8 GB, 2x DDR3 SO-DIMM slots

Hard disk

  • exchangeable 2.5" SATA HDD (500 GB standard)
  • optionally also SATA SSD (MLC or SLC)

Audio
HD sound, stereo speakers
Keypad

  • ON/OFF, LCD brightness, standby,
    4 freely programmable function keys

Security

  • optional TPM1.2 module

Connections

  • 2x USB2.0
  • 1x Gigabit LAN RJ45
  • 1x Seriell COM Port DB9
  • 1x DC-In (MIL)
  • 1x Docking Connector

Multibay:

  • 1x ExpressCard/54
  • 1x SIM card slot
  • 1x SD card slot

Power supply

  • Li-ion battery, 10.8 V, 5800 mAh
  • AC adaptor 100-240 V, 50/60 Hz, 90 W
  • Internal vehicle adaptor 12-32 VDC with overvoltage protection

Operating system

  • Windows 7 / 10

Certification

  • IP65
  • MIL-STD 810G
  • MIL-STD 461F

Housing

  • hardened magnesium housing

Colour

  • military-green (NATO olive / RAL 6031 HR)
  • silver/black
  • desert/sand colour
  • other colours on request

Dimensions

  • 250 x 198 x 45 mm (W x D x H)

Weight

  • 1.9 kg

Options

  • Exchangeable SATA SSD (Industry Class)
  • Exchangeable SATA HDD upgrade with up to 1 TB capacity
  • Fibreoptic LAN 100/1000 MBit
  • 2x USB3.0 connections instead of 2x USB2.0
  • WLAN/Bluetooth Combo card:
    • WLAN (Intel® Centrino Advanced-N 6235 802.11a/g/n)
    • Dual Mode Bluetooth Module 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE)
  • WWAN Module, HSPA 3G (Gobi 3000)
  • GPS Module (Ublox LEA-6H)
  • Camera Module
  • Display filter for night vision equipment
  • Heating for -30°C operation
  • 1-2x additional external COM-Port DB9 connections
  • internal CAN BUS interface
  • military round connectors for virtually all connections
  • MIL-STD 461F certification
    • Ground Army (Navy mobile & Army)
  • BSI Zone 1 / SDIP 27 Level B
