Rocky Series

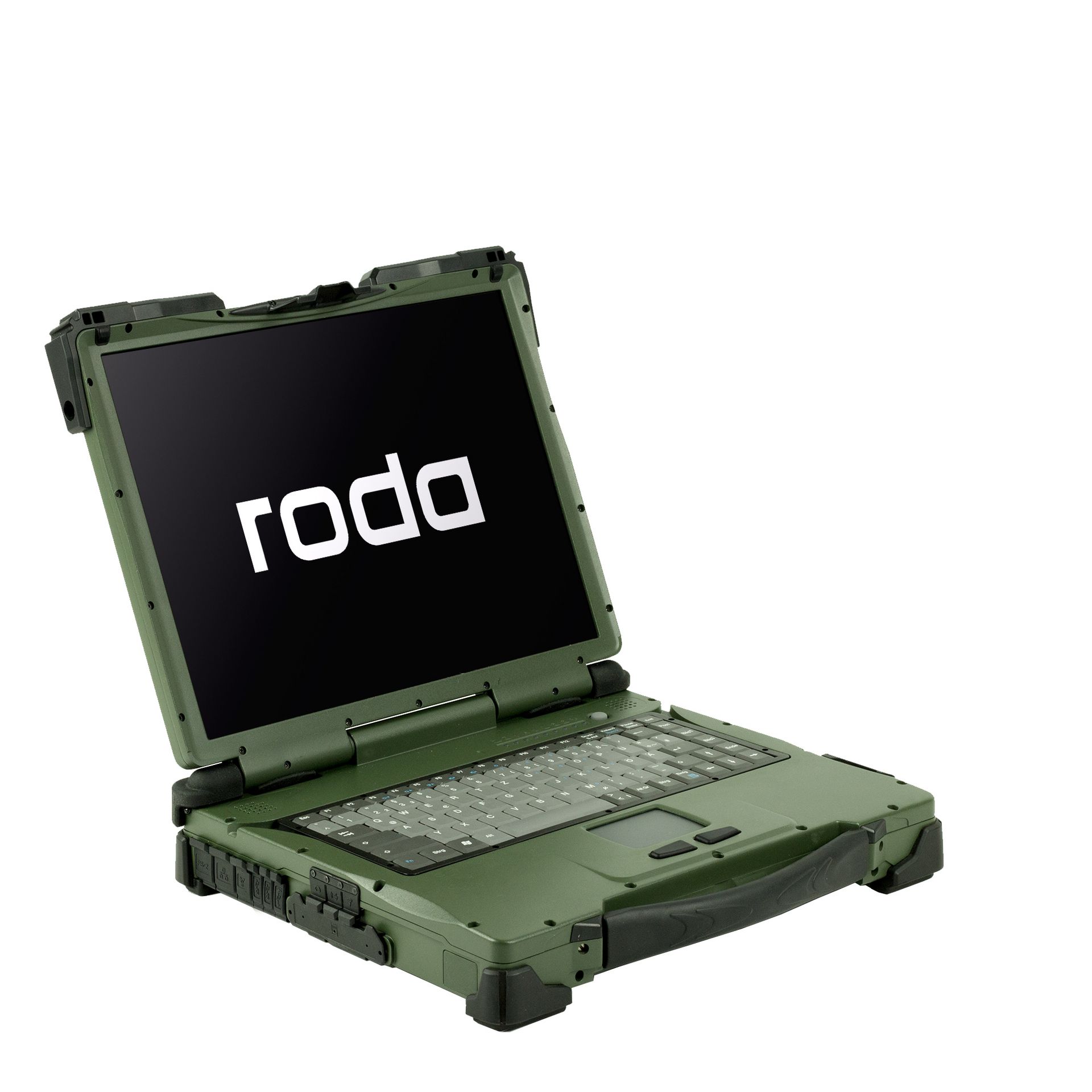

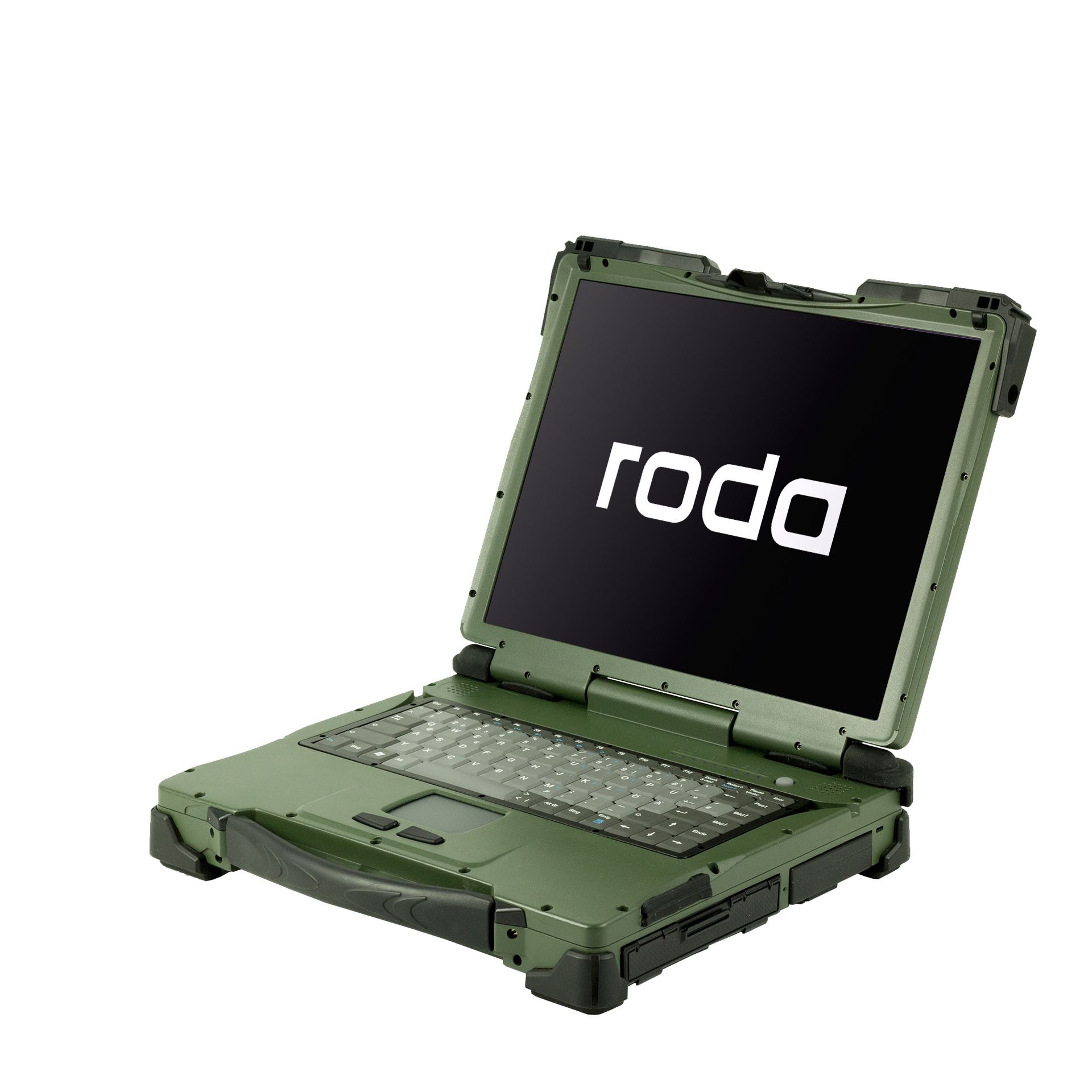

Rocky® RK10

Full-rugged 15" Notebook

The Rocky Notebooks stand out through their unvarying form factor and unique IP65 protection concept, which is still unrivalled by all other Notebooks on the market. Because the mainboard is not coupled, there is no danger of water and dust when the interfaces are not covered or the drives are removed.

As with all roda models, the Rocky Notebooks only use components with an extended temperature range. This allows for safe Notebook operation with extreme environmental temperatures and under the influence of extreme vibrations. The Rocky series is the perfect computer for installation in protected and armoured vehicles and aircrafts, thanks to the additional opportunity to expand the model with military connectors and suitable accessories.

Technical specifications

Display

  • LCD 15.1" XGA (1024×768)
  • LED backlight good visibility
  • Sunlight-readable
  • Optical bonding

Chipset

  • Intel® Skylake Platform
  • Mobile Intel® QM170 Express Chipset

CPU

  • Intel® Core™i7-6822EQ™,
  • 2.0 GHz (2.8 Ghz max. Turbo Frequency)

Graphics

  • Intel® HD Graphics 530

Memory

  • up to 32 GB DDR4 2133 MHz (2 slots)

Hard disk

  • Exchangeable 2.5” SATA HDD (up to 500 GB)
  • >>optionally also SATA SSD (up to 600 GB)

ODD

  • Exchangeable DVD±RW drive (Flex Bay)

Audio

  • HD sound, stereo speakers

Touchpad

  • Resistive

Power supply

  • Li-ion battery, 10.8 V, 8700 mAh
  • AC adaptor -90 W, 90 - 240 V, 50-60 Hz

Connections (left side)

  • 3x Audio (3.5 mm), 1x Gigabit LAN (RJ45),
  • 1x USB 2.0 (fast charge), 2x USB 3.0,
  • 1x PS/2, 1x IEEE 1394a (Firewire),
  • 1x ExpressCard (PCIe)

Connections (back side)

  • 1x DC in, 2x serial (DB9),
  • 1x parallel (DB25), 1x VGA (DB15),
  • 1x RD-DVI (*RD = roda Display Remote), 1x Docking Connector

Operating system

  • Windows Pro 10 with downgrade right Windows 7

Certification

  • CE, FCC, WHQL, WEEE, REACH,
  • IP65 (with open I/O ports),
  • MIL-STD 810G

Housing

  • hardened magnesium housing

Colour

  • black, military-green,
  • desert/sand colour,
  • other colours on request

Dimensions (W x D x H)

  • 341.4 mm x 283.4 mm x 70.2 mm
  • 353 mm x 301 mm x 79.2 mm (with rubber corners)

Weight

  • 5.5 kg

Options

  • SXGA+ resolution (1400 x 1050)
  • I-Temp SLC or MLC SSD (-45°C to +85°C)
  • Extended temperature range -30°C to +60°C operation
  • Touchscreen resistive, sunlight-readable
  • 4x RS232/422/485 external connections
  • 2nd LAN card 10/100/1000 MBit
  • Fibre LAN with LC or HMC plug (100FX, 1000LX, or 1000SX)
  • WLAN card (802.11a/g/n/ac) incl. Bluetooth v2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0(BLE)
  • UMTS / HSDPA
  • GPS module
  • TPM module
  • Integrated Chip/Smart Card Reader
  • Internal vehicle adaptor (direct 12 V DC - 32 V DC) incl. SP200 module/ Overvoltage protection
  • Various keyboard options available
  • Insulated housing for vehicle installation
  • Military round connectors for virtually all connections

Accessories


DC converter MIL for vehicle installation
DockUnder port replicator
Replacement AC adaptor
90 watts
External DC adaptor
Mounting plate for vehicle installation
Dual Battery Charger
Transport bag
