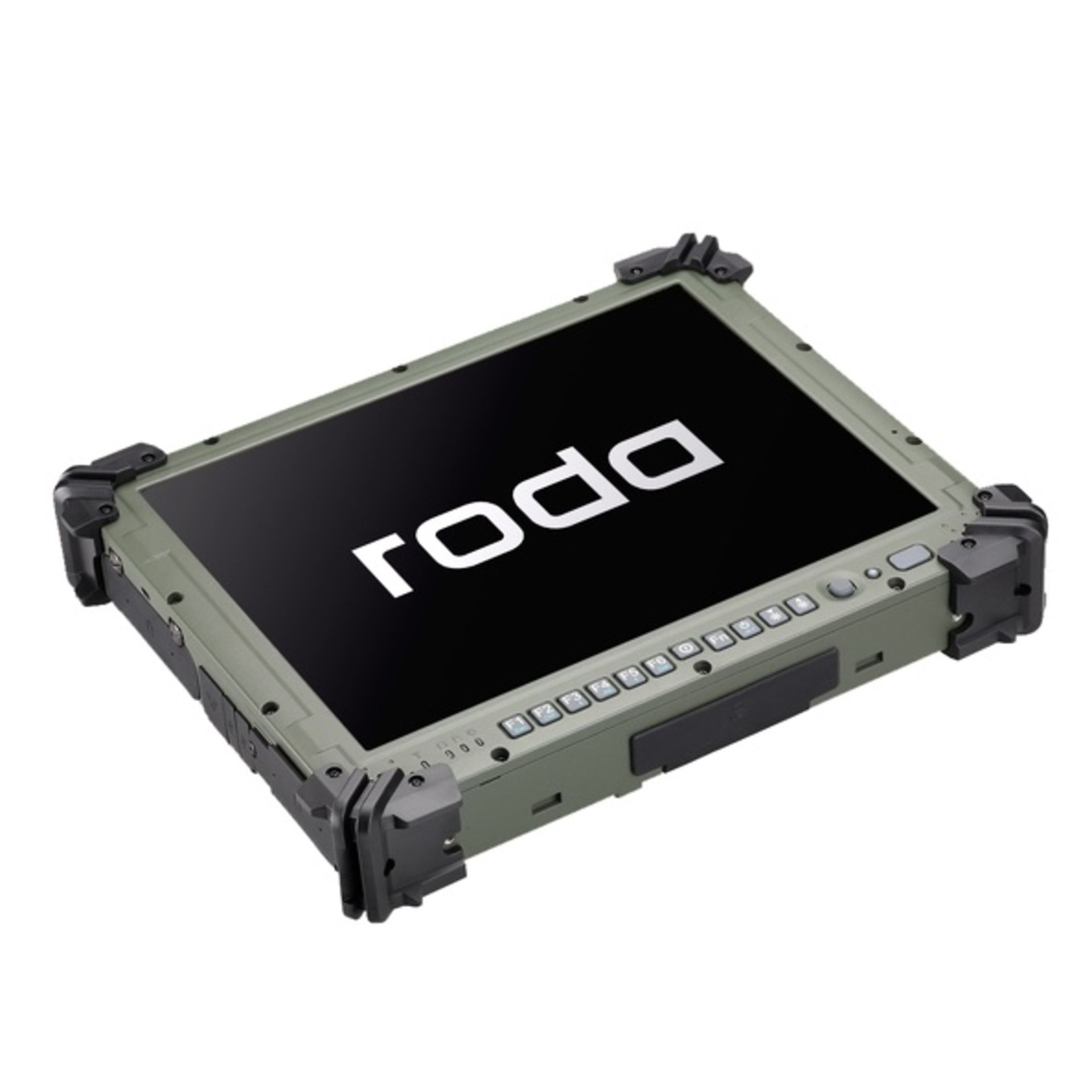

Panther DK10

rugged 12" tablet PC

The 12" tablet PC Panther DK10 is characterised by its extraordinary opportunities for customisation and enormous ruggedness. The variety of available modules and possible interfaces with industrial or military plugs is enormous, which is proven by countless installations in protected and armoured vehicles.

In addition, the Panther series offers the same IP65 protection concept and IT platform as the Rocky laptop, so you can rely on sophisticated technology.

Technical specification

Display

  • 12.1" XGA (1024×768)
  • Sunlight-readable LCD
  • LED backlight
  • Resistive touch screen
  • Optical bonding

Chipset

  • Intel® Huron River platform
  • Intel® Cougar Point QM67

CPU

  • Intel® Core™i-2610UE™, Sandy Bridge,
  • 1.5 GHz (2.4 GHz max.Turbo Frequency)

Graphics

  • Intel® HD Graphics 3000

Memory

  • up to 8 GB DDR3 1333 MHz SO-DIMM (1 slot)

Hard disk

  • exchangeable 2.5" SATA HDD (500 GB standard)
    >> optionally also SATA SSD (MLC or SLC)

Audio

  • HD sound, stereo speakers

Keypad

  • ON/OFF, LCD brightness, standby, freely programmable function keys, track point mouse with left mouse button, and much more.

Protection

  • optional TPM1.2 module

Connections

  • 1x USB2.0, 1x USB3.0 (Fast Charge),
  • 1x Gigabit LAN, 1x Serial DB9,
  • 1x DC in (MIL), 1x Docking Connector
  • Multi-bay:  1x ExpressCard/54, 1x SIM card slot, 1x SD card slot

Power supply

  • Li-ion battery , 10.8 V, 5800 mAh
  • AC adaptor 100-240 V, 50/60 Hz, 90 W
  • Internal vehicle adaptor 12-32 V DC with overvoltage protection

Operating system

  • Windows 10 Pro with downgrade right Windows 7

Certification

  • IP65
  • MIL-STD 810G
  • MIL-STD 461F

Housing

  • hardened magnesium housing

Colour

  • military green (NATO olive / RAL 6031 HR)
  • black
  • desert/sand colour
  • other colours on request

Dimensions

  • 90 mm x 240 mm x 42.6 mm
  • 310 mm x 255 mm x 54 mm
  • with rubber edge protectors

Weight

  • 2.5 kg

Options

  • Fiberoptic LAN 100/1000 MBit
  • UMTS / HSDPA (AirPrime MC8305)
  • GPS module (Ublox LEA-6H)
  • WLAN/Bluetooth combo card:
    • WLAN (Intel® Centrino Advanced-N 6235 802.11a/g/n)
    • Dual Mode Bluetooth Module 2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0 (BLE)
  • Display filter for night vision equipment
  • Heating for -30°C operation
  • 1-2x additional external COM ports DB9 connector
  • Military round connectors for almost all connectors
