SmartPad DF8A

full-rugged 5" Android handheld

The full-rugged handheld DF8A is roda's only 7.1.1 Android™-based SmartPad, and, at only 370 g, the most lightweight model in the product range. As one of only few full-rugged handheld devices, the 5" Pad offers a wide range of possible interfaces with military connectors, such as Fischer or ODU connectors.

Technical specifications

Display

  • LCD 5“ WVGA (800 x 480)
  • LED backlight
  • Sunlight readable

Touch

  • Capacitive touch screen
  • Optional: resistive touch screen

CPU

  • Freescale ARM® Cortex-A9 i.MX6 Quad core processor, 1.00 GHz

Memory

  • 2 GB LPDDR2

Storage

  • 32 GB ROM eMMC
  • Optional: Micro SDHC card slot, up to 32 GB

Camera

  • Optional: Webcam 1MP (front side)

Interfaces

  • 1x SD card slot
  • 1x micro SD card slot
  • Optional:
    • 1x Expansion connector (right side)

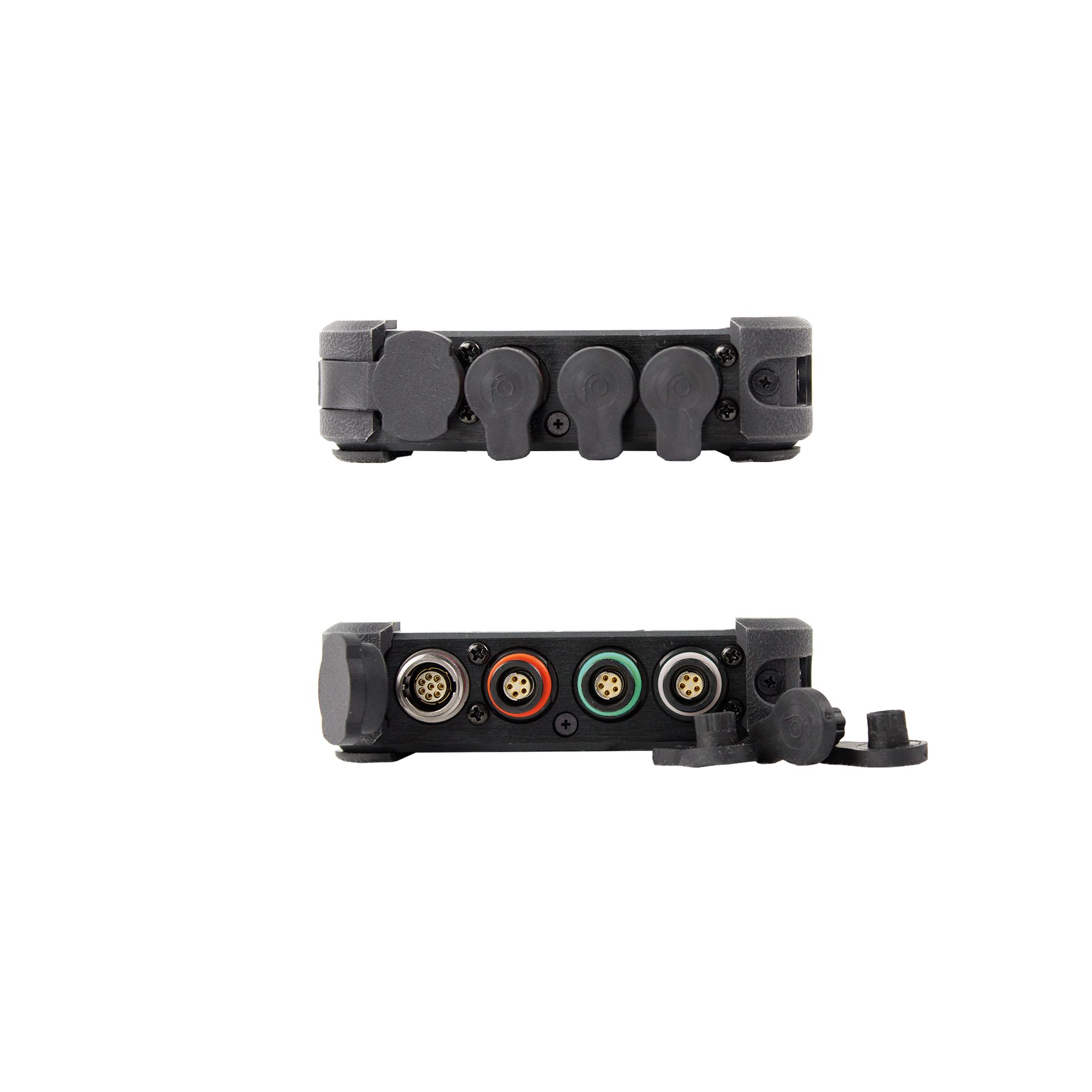

    • up to 3x MIL Fischer connector (bottom)
    • SMA connector for WLAN, GPS

Connectivity [WLAN / BT / GPS]

  • WLAN 802.11 a/b/g/n/ac
  • Bluetooth 3.0
  • Optional: Ublox Neo-M8N GPS/GLONASS

Power supply

  • Li-ion battery, 3.7 V, 3520 mAh
  • AC-adaptor 20 W, 100-240 V, 50-60 Hz
  • Optional: Integrated vehicle adaptor 12-32 V with surge protection

Security

  • Optional: TPM 2.0

Operating System

  • Android™ 7.1.1

Dimensions [W×H×D]

  • 171 x 94 x 28 mm

Weight

  • 370 g

Protection class

  • IP66

Certification

  • MIL-STD-810G
  • MIL-STD-461G Ground Navy (only with resistive touch screen)
