Rocky Series

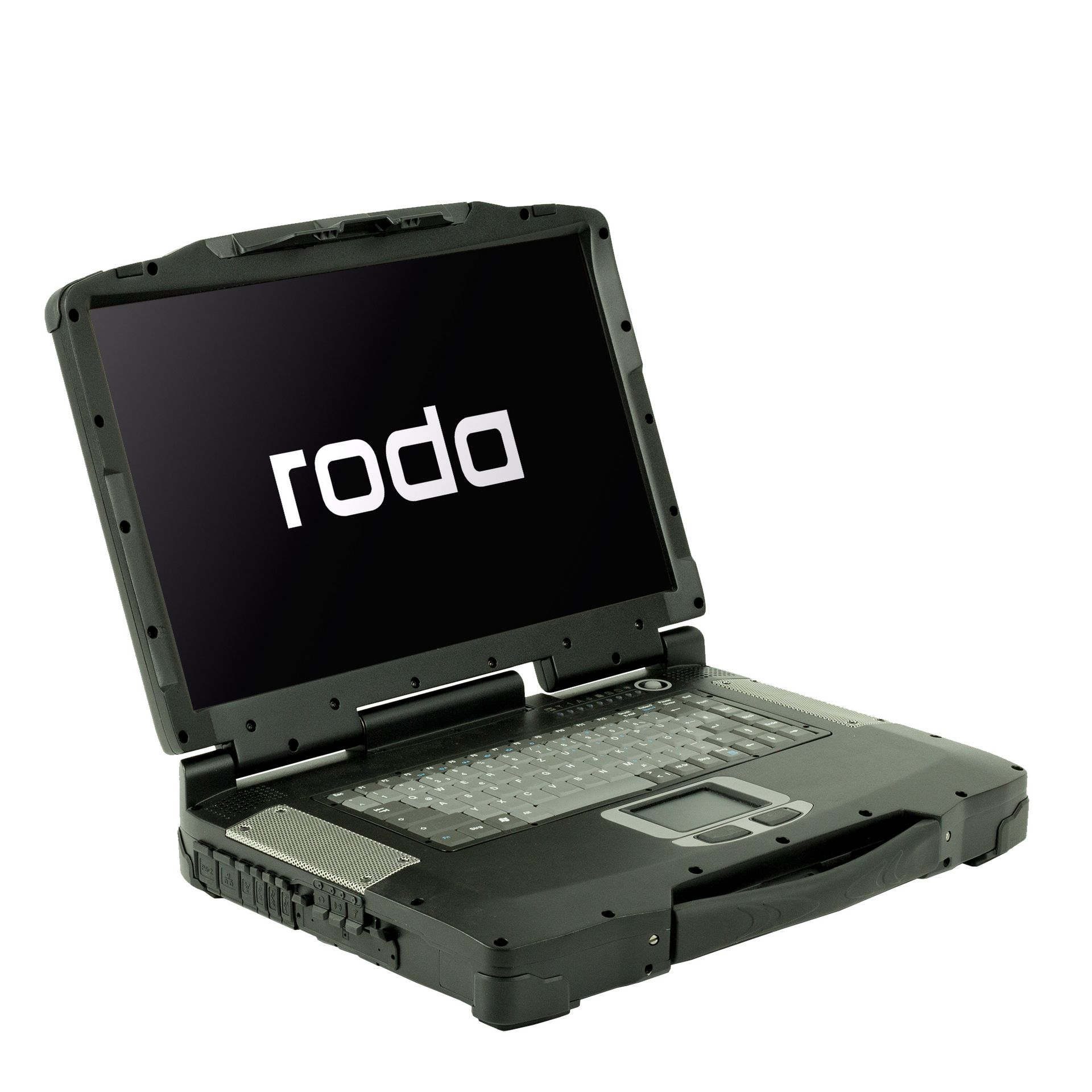

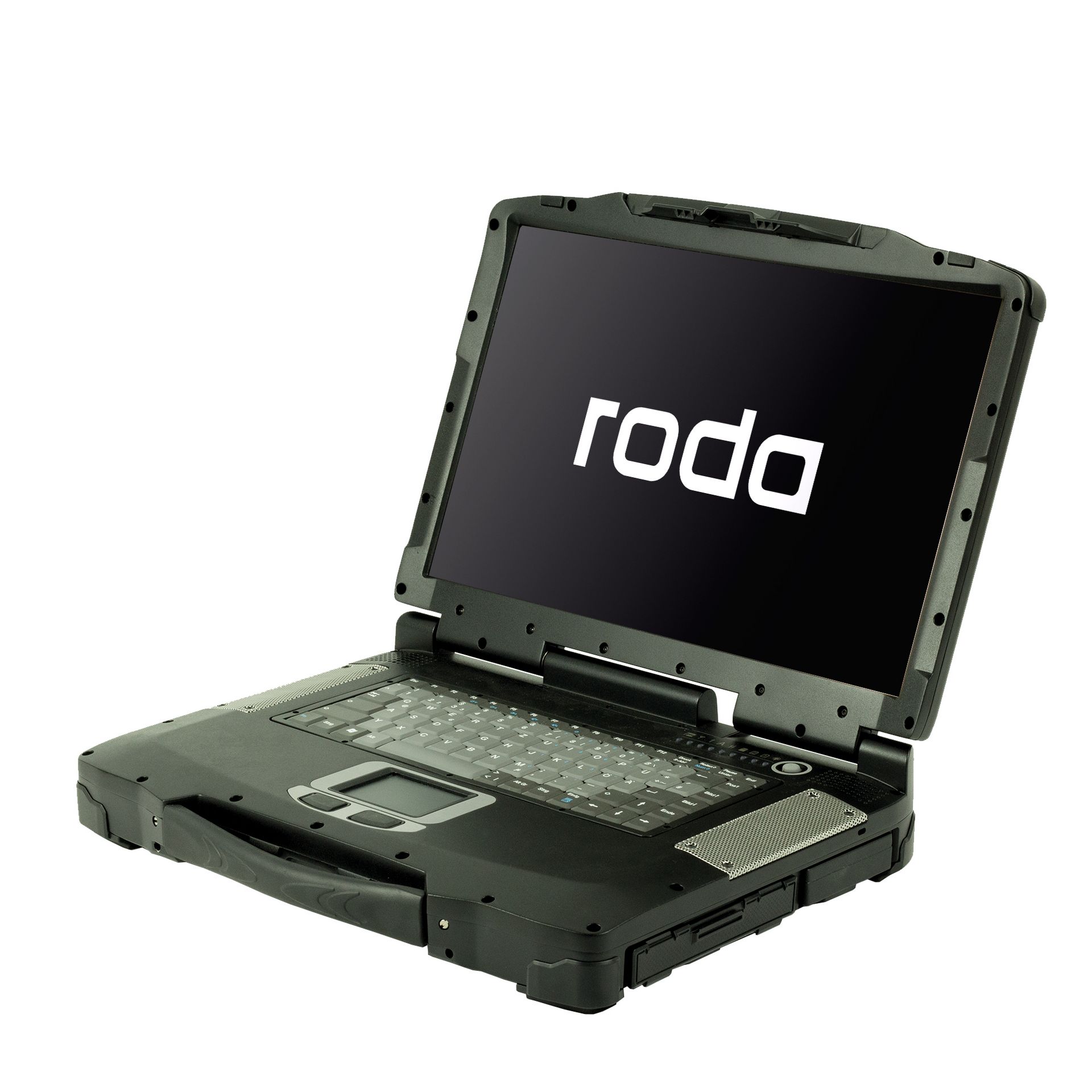

Rocky® RF10

Full-rugged 17" Notebook

The Rocky Notebooks stand out through their constant form factor, which sets it apart from the competition, as well as its unique IP65 protection concept. With the uncoupled mainboard, water and dust pose no threat whatsoever, even when the interfaces are not covered or the drives are removed. The Rocky RF10 is the only full-rugged 17" laptop in the world.
As with all roda models, the Rocky Notebooks only use components with an extended temperature range. This allows for safe Notebook operation with extreme environmental temperatures and under the influence of extreme vibrations. The Rocky series is the perfect computer for installation in protected and armoured vehicles and aircrafts, thanks to the additional opportunity to expand the model with military connectors and suitable accessories.

Technical specifications

Display

  • LCD 17.1" WXGA+ (1440x900)
  • LED backlight
  • Sunlight-readable
  • Optical bonding (optional)

Chipset

  • Intel® Huron River Platform
  • Intel® Cougar Point QM67

CPU

  • Intel® Core™i-2610UE™, Sandy Bridge, 1.5 GHz (2.4 GHz max. Turbo Frequency)

Graphics

  • Intel® HD Graphics 3000

Memory

  • up to 16 GB DDR3 1333 Mhz
  • 2 slots

Hard disk

  • Exchangeable 2.5" SATA HDD (500 GB standard)
  • optionally SATA SSD (MLC or SLC)

ODD

  • Exchangeable DVD±RW drive (FlexBay)

Audio

  • HD audio and stereo speakers

Touchpad

  • Resistive

Power supply

  • Li-ion battery: 10.8 V, 8700 mAh
  • AC adaptor: 90 W, 90 - 240 V, 50-60 Hz

Connections (left side)

  • 1x PS/2
  • 2x USB3.0
  • 1x USB2.0
  • 1x IEEE 1394 (Firewire)
  • 3x Audio
  • 1x Gigabit LAN RJ45
  • 1x ExpressCard (PCIe)

Connections (back side)

  • 2x serial COM port DB9
  • 1x DC in
  • 1x VGA (RGB)
  • 1x printer port DB25
  • 1x DP-DVI

Protection

  • Kensington lock
  • TPM 1.2 (optional)

Operating system

  • Windows 10 Pro with downgrade right Windows 7

Certification

  • CE
  • FCC
  • WHQL
  • WEEE
  • REACH
  • IP65 (with open I/O ports)
  • MIL-STD 810G

Housing

  • hardened magnesium housing

Colour

  • military-green (NATO olive / RAL6031HR)
  • black
  • other colours on request

Dimensions

  • 410 mm x 315.8 mm x 70.8 mm
  • 413 mm x 317.7 mm x 77.2 mm (with rubber corners)

Weight

  • 5.89 kg

Options

  • Exchangeable SATA SLC SSD (industrial class SSD)
  • Exchangeable SATA HDD upgrade up to 1 TB capacity
  • WSXGA+ resolution (1680 × 1050)
  • Graphics card upgrade: nVidia® GT520 series
  • Extended temperature range up to -30°C
  • Resistive touchscreen
  • 4x RS232/422/485 external interface
  • 2nd LAN card 10/100/1000 MBit
  • Fibre optic LAN 100/1000 MBit
  • WLAN card (Intel® Centrino Advanced-N 6235 802.11a/g/n)
  • incl. Bluetooth v2.1, 2.1+EDR, 3.0, 3.0+HS, 4.0(BLE)
  • WWAN UMTS / HSDPA (Gobi 3000) module
  • GPS module (Ublox LEA-6H)
  • TPM 1.2 module
  • Internal CAN BUS interface
  • Integrated SmartCard reader
  • Internal vehicle adaptor/wide-range input (12 V DC- 32 V DC)
    incl. SP200 module (surge protection)
  • Illuminated keyboard
  • Insulated housing for vehicle installation
  • Military connector for virtually all interfaces
  • Capacitive touchpad (multi touch)
  • MIL-STD 461F certification
  • Ground Navy / Ground Army
  • (Navy fixed & Air Force / Navy mobile & Army)
  • BSI Zone 1 / SDIP 27 Level B (ER)

Accessories


DC converter MIL for vehicle installation
Mounting plate for vehicle installation
Replacement AC adaptor
90 watts
External DC adaptor
Transport bag
