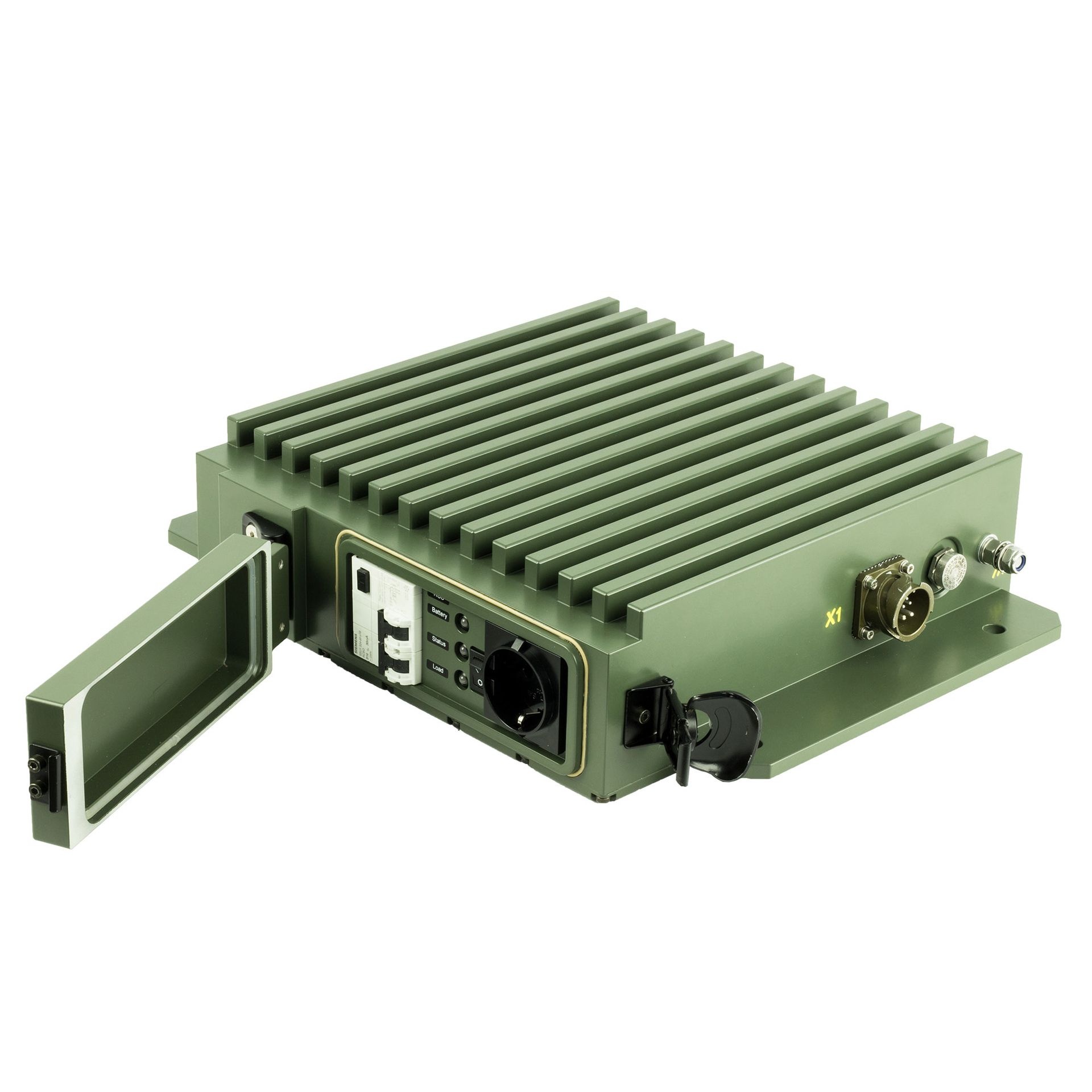

Inversis 700

full rugged sine wave inverter

roda sine wave inverters convert battery-fed electrical energy of 24 V voltage into a stabilised, quartz-accurate AC voltage of 230 V, 50 Hz or 60 Hz (factory adjustable) with high efficiency. The voltage is purely sinusoidal and corresponds exactly to the 230 V voltage of the electricity suppliers. Only a true sinusoidal voltage guarantees gentle and trouble-free operation of all connected loads, especially inductive and mixed loads (e.g. drills). Inexpensive inverters with trapezoidal or square-wave output voltages can significantly impair and/or damage the function of connected equipment, which can be decisive for the success of your mission.

Features

Input voltage

  • 24 V DC

Input voltage range

  • 18 - 33 VDC

Current empty load

  • 0.8 A @ 24 V DC

Output voltage

  • 230 VAC / ± 5%

Frequency

  • 50 Hz ± 0,5%

Output power

  • 700 VA ± 3%

Maximum current

  • 100% load at 3.1 A

Peak current

  • 200% load at 6.1 A for 1 sec

Output type pure sine wave

  • (THD <5% @ normal load)

Efficiency

  • type. 85%

Voltage indicator

  • LED red / orange / green

Load indicator

  • LED red / orange / green

Status indicator

  • LED red / orange / green

Electronic protective functions

  • Overload, short-circuit, polarity reversal,
  • over/under input voltage,
  • Overtemperature, residual current (RCCB)

Protection

  • EN60950-1

Certification

  • IP68 (4 m immersion depth),
    Designed to meet MIL-STD 810G,
    Designed to meet MIL-STd 461F

Temperature range operation:

 -30°C to +55°C

Storage:

-40°C to +70°C

Cooling

  • Convection

DC plug

  • VG 95234-18-9

AC plug

  • Schuko or BS1363

Housing

  • Aluminium

Dimensions

  • (L x W x H) 394 x 320 x 95 mm

Weight

  • approx. 15 kg
