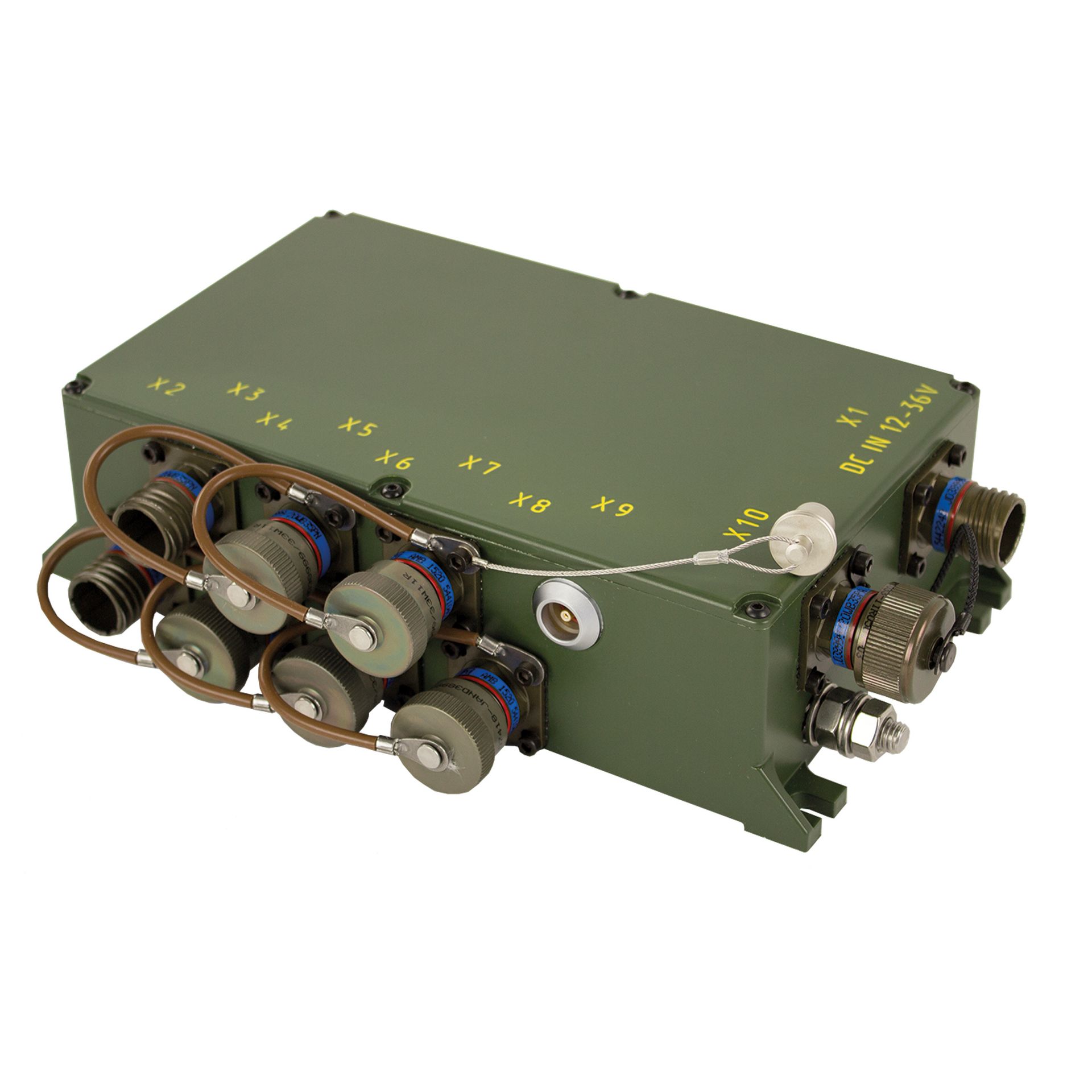

8-Port Gbit Switch

managed and rugged

Technical specifications

Specifications

  • 8-port, layer 2+ switch (10/100/1000 Mbps Ethernet)
  • Internal 8051 microcontroller for configuration and management
  • Non-blocking wire-speed performance
  • All port inputs and outputs are galvanically isolated from each other
  • Supports standard-compliant protocols in accordance with IEEE 802.1D
  • IEEE 802.1w
  • IEEE 802.1s IEEE 802.1X
  • 10 megabit interface with maximum transfer rate of 10BASE2 is 10 Mbit/s in half duplex.


Connectors

  • X1: DC in 7-32 V DC in accordance with VG 96916 T5 - MIL-D38999/20WB35PB
  • X2: MIL-D38999/20WB35PN
  • X3: MIL-D38999/20WB35PN
  • X4: MIL-D38999/20WB35PN
  • X5: MIL-D38999/20WB35PN
  • X6: MIL-D38999/20WB35PN
  • X7: MIL-D38999/20WB35PN
  • X8: MIL-D38999/20WB35PN
  • X9: Lemo ERA 0E 650 CTL (coaxial connector)
  • X10: MIL-D38999/20WB35PA (RS-232 port for host interface)


Power supply

  • 12 V DC up to 32 V DC following VG 96916 T5
    Internal EMC filter for spike suppression in accordance with MIL-STD 1275B / MIL-STD 704A
    Status display via green LEDs


Power input type.

  • 15 watts at 12 V DC


Housing

  • Material: AlMg3, milled
  • Dimensions (L x W x H): tba
  • Passivised and pulverised (green RAL 6031)


Weight

  • approx. 1.0 kg

Designed to meet

Protection Class

  • IP 65 in accordance with EN 60529 (with connected / covered plugs)


EMC

  • CE EN55022 and EN55024
  • VG 95373
  • MIL-STD 461E
  • Ground Army
  • TEMPEST SDIP 27 Level B / BSI Zone 1


Resistant against

  • Ice and snow (with connected / covered plugs)
  • Sand and dust in accordance with VG95332, Sheet 20 (with connected / covered plugs)
  • Salt mist (with connected / covered plugs)


Safety

  • EN 60950 Materials used non-flammable according to UL 94V-0


MTBF

  • 50,000 h
