MobiTough series

MobiTough MK10

Full-rugged vehicle computer

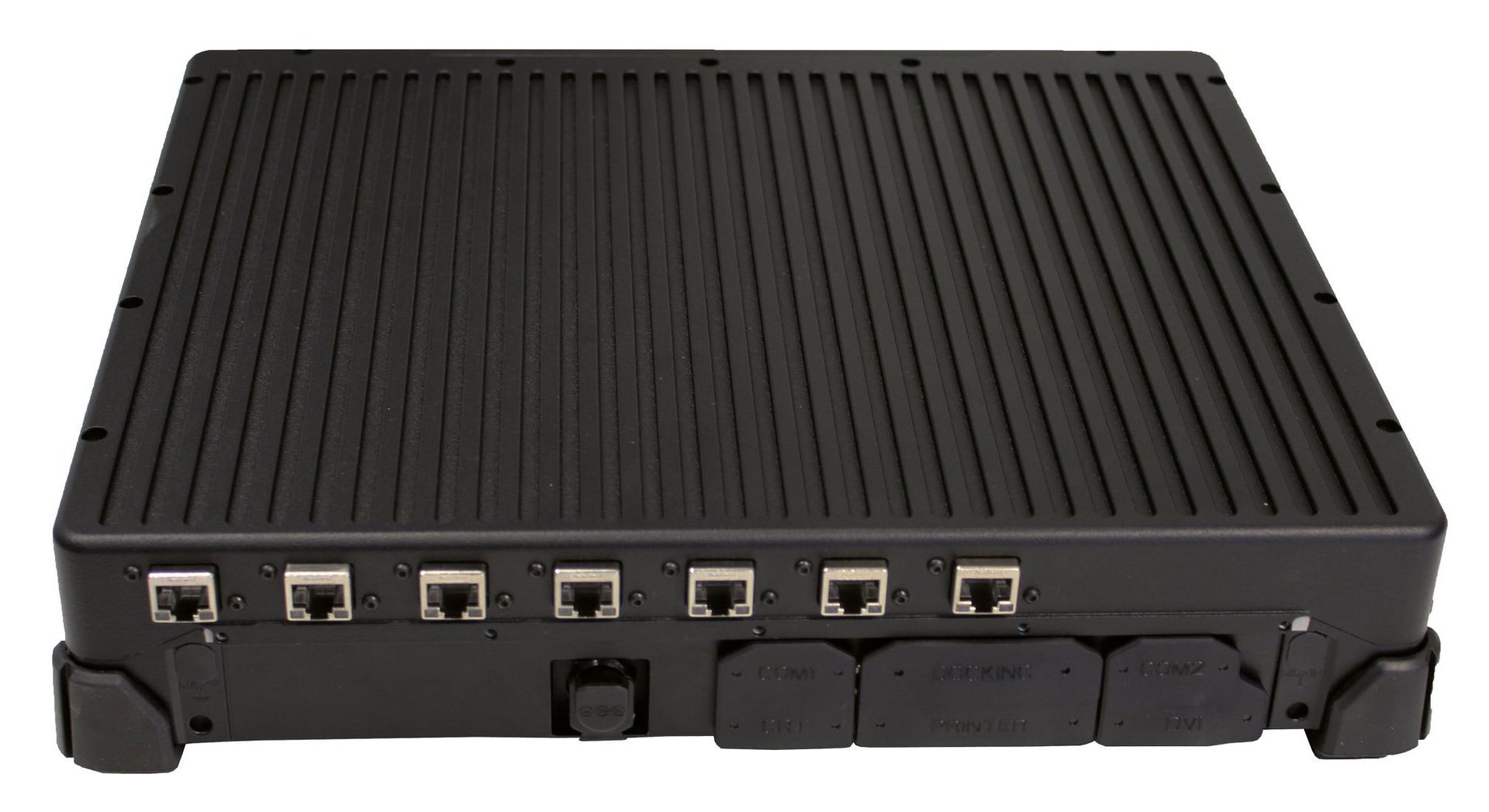

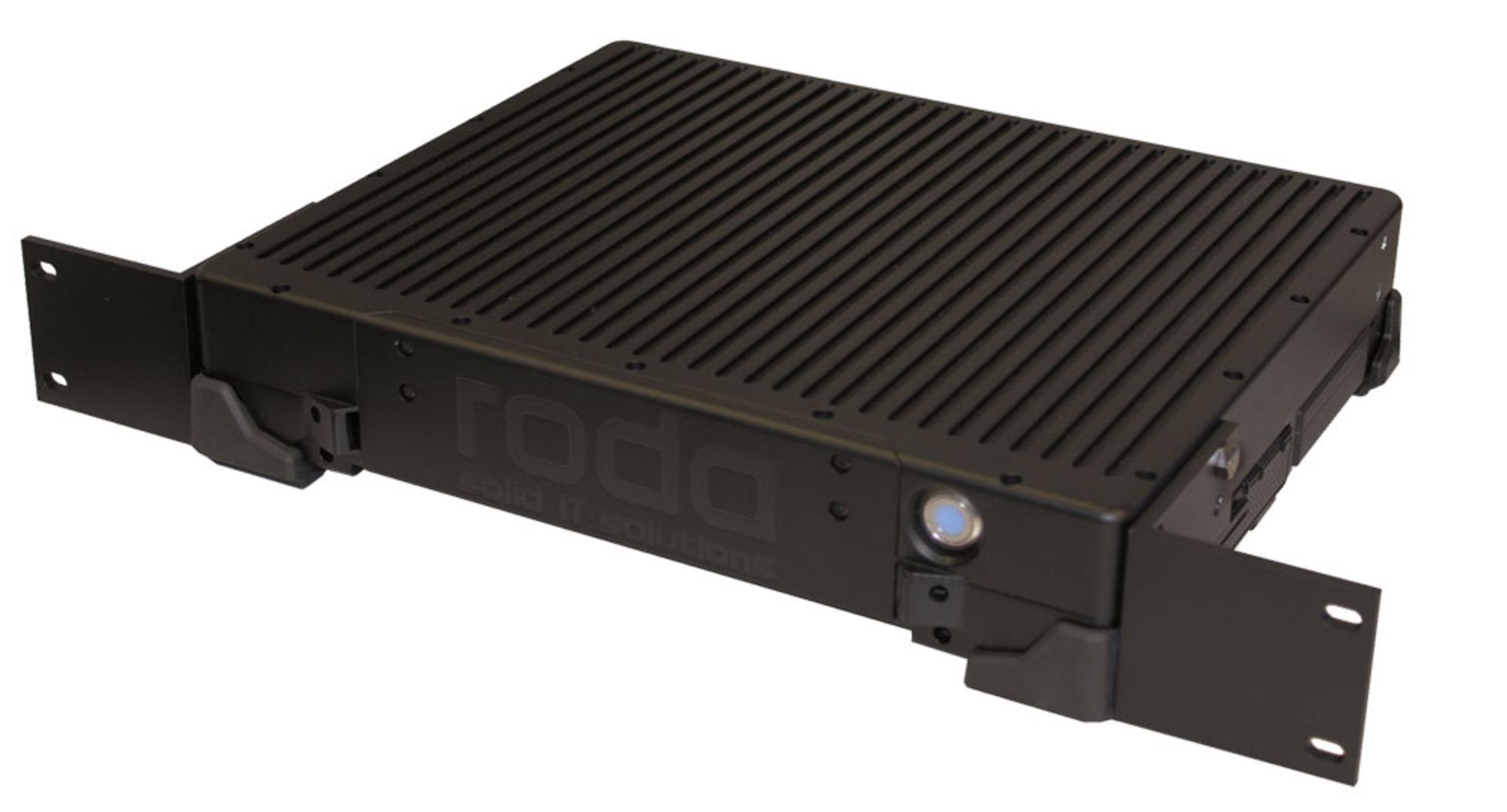

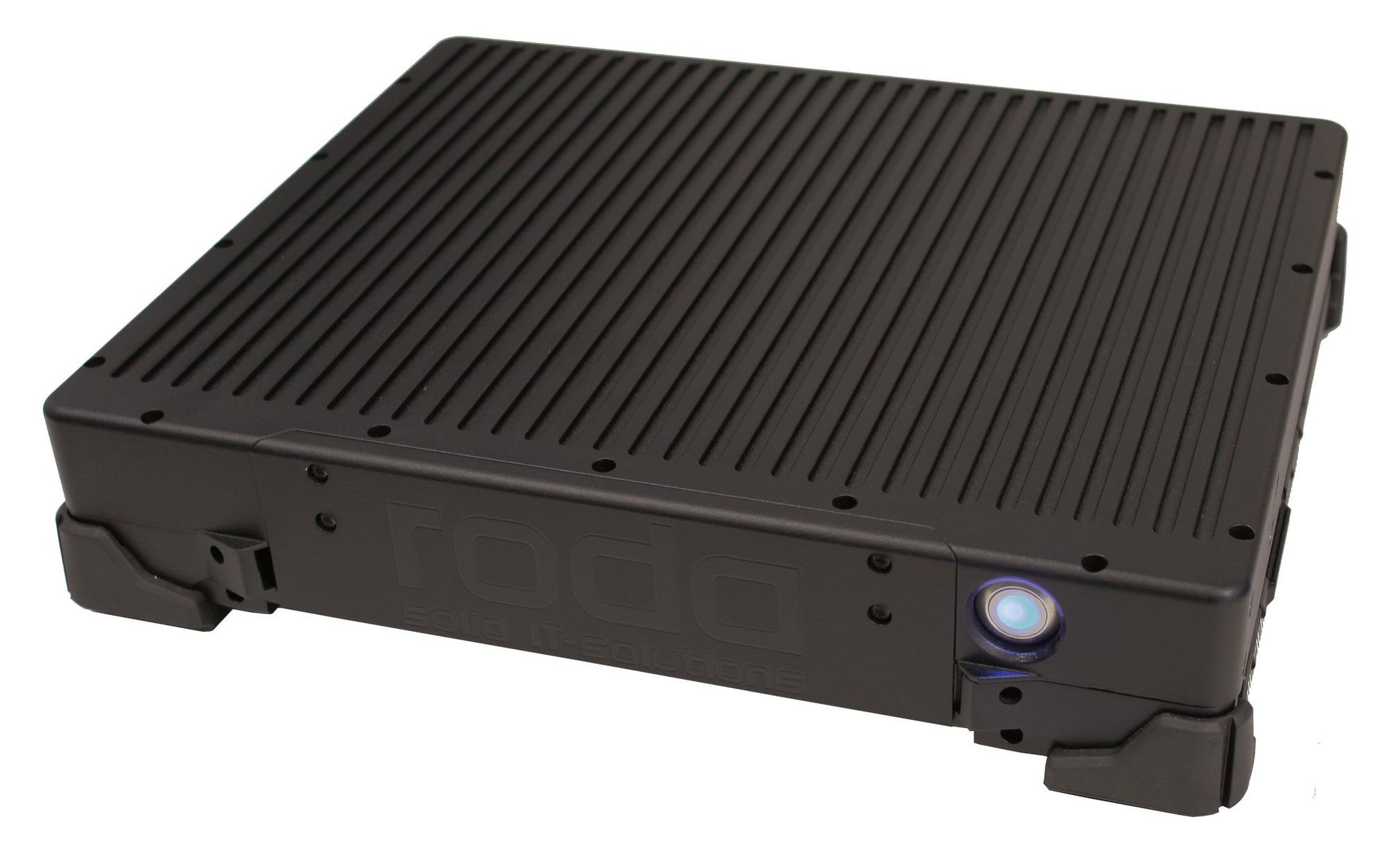

The high-speed MobiTough MK10 computer has an integrated 8-port switch for installation in armoured vehicles using standard mounting plates or 19" racks. It can be used as a computer or server.

The models have been designed using the form factor and most-current platform of the tried-and-tested Rocky® laptops while doing away with the display. This ensures high life-cycle management availability.

As with all Rocky devices, the computer features the proven IP65 protection concept (without protective caps) and can be started via a roda display using the remote function. The MobiTough has the same dimensions as two 19"/2® devices placed side by side, and can additionally be combined with these. The MobiTough is the most versatile and flexible roda computer there is, boasting the following features and options.

Technical options

Chipset

  • Intel® Huron River Platform
  • Intel® Cougar Point QM67

CPU

  • Intel® UE™-2610UE™, Sandy Bridge,
  • 1.5 GHz (2.4 GHz max. Turbo Frequency

Graphics

  • Intel® HD Graphics 3000

Memory

  • up to 16 GB DDR3 1600 MHz SO-DIMM (2 slots)

Hard disk

  • exchangeable 2.5" SATA HDD (500 GB)
  • >> optionally also SATA SSD (MLC oder SLC)

ODD

  • exchangeable DVD±RW drive (Flex Bay)

Audio

  • HD sound, stereo speakers

Power supply

  • Li-ion battery, 10.8 V, 8700 mAh
  • AC adaptor
  • - 90 W, 90 - 240 V, 50-60 Hz

Network

  • integrated network switch
  • 7-port Gigabit LAN
  • 8th port is connected directly with MK10

Connections (left side)

  • 1x PS/2, 2x USB 3.0, 1x USB 2.0,
  • 1x IEEE 1394 (Firewire), 3x audio,
  • 1x Gigabit LAN, 1x ExpressCard (PCIe)

Connections (back side)

  • 2x serial DB9, 1x DC in, 1x VGA (RGB),
  • 1x DP-DVI, 1x Docking Connector
  • 1x Printer Port DB11

OS

  • Windows 7 / 10

Certification

  • Designed to meet:
  • CE, FCC, WHQL, WEEE, REACH,
  • IP65 (with open I/O ports),
  • MIL-STD 810G

Housing

  • hardened magnesium housing

Colour

  • black, military-green, desert/sand colour, other colours on request

Dimensions

  • 351.6 mm x 294.2 mm x 72.7 mm

Weight

  • approx. 5.5 kg
